The 804 D5 brings reference-quality 800 Series Diamond performance to a more conventional floorstanding loudspeaker design.

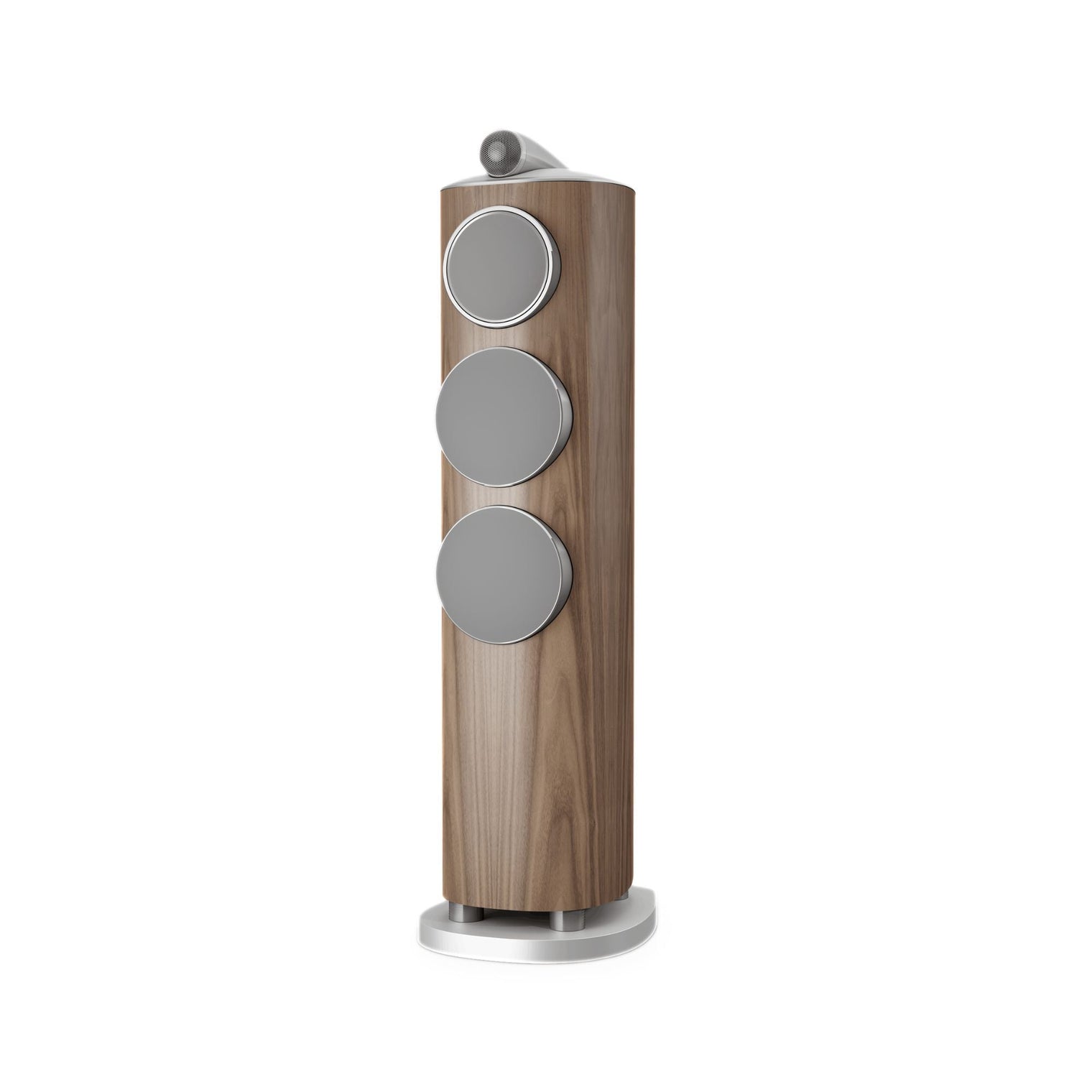

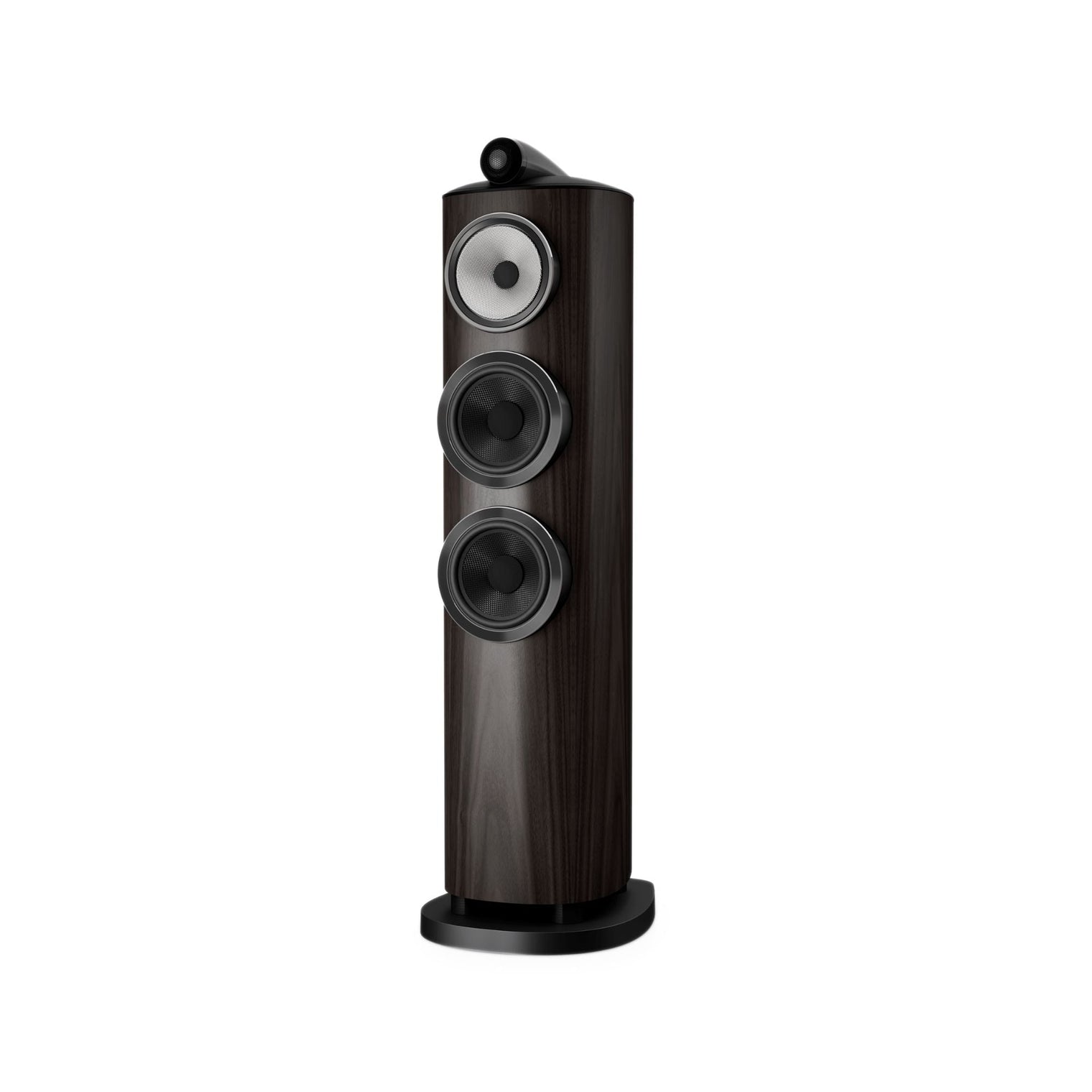

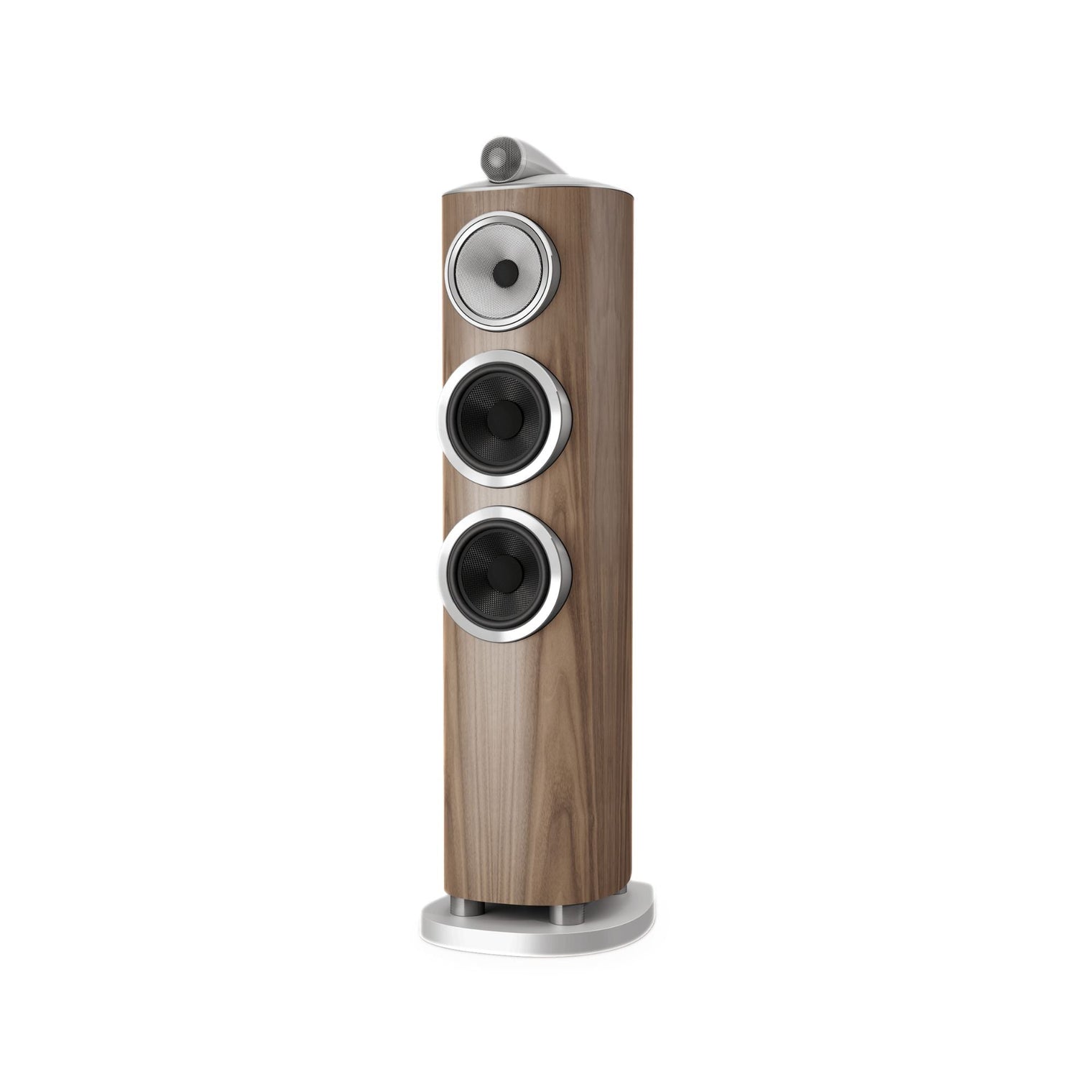

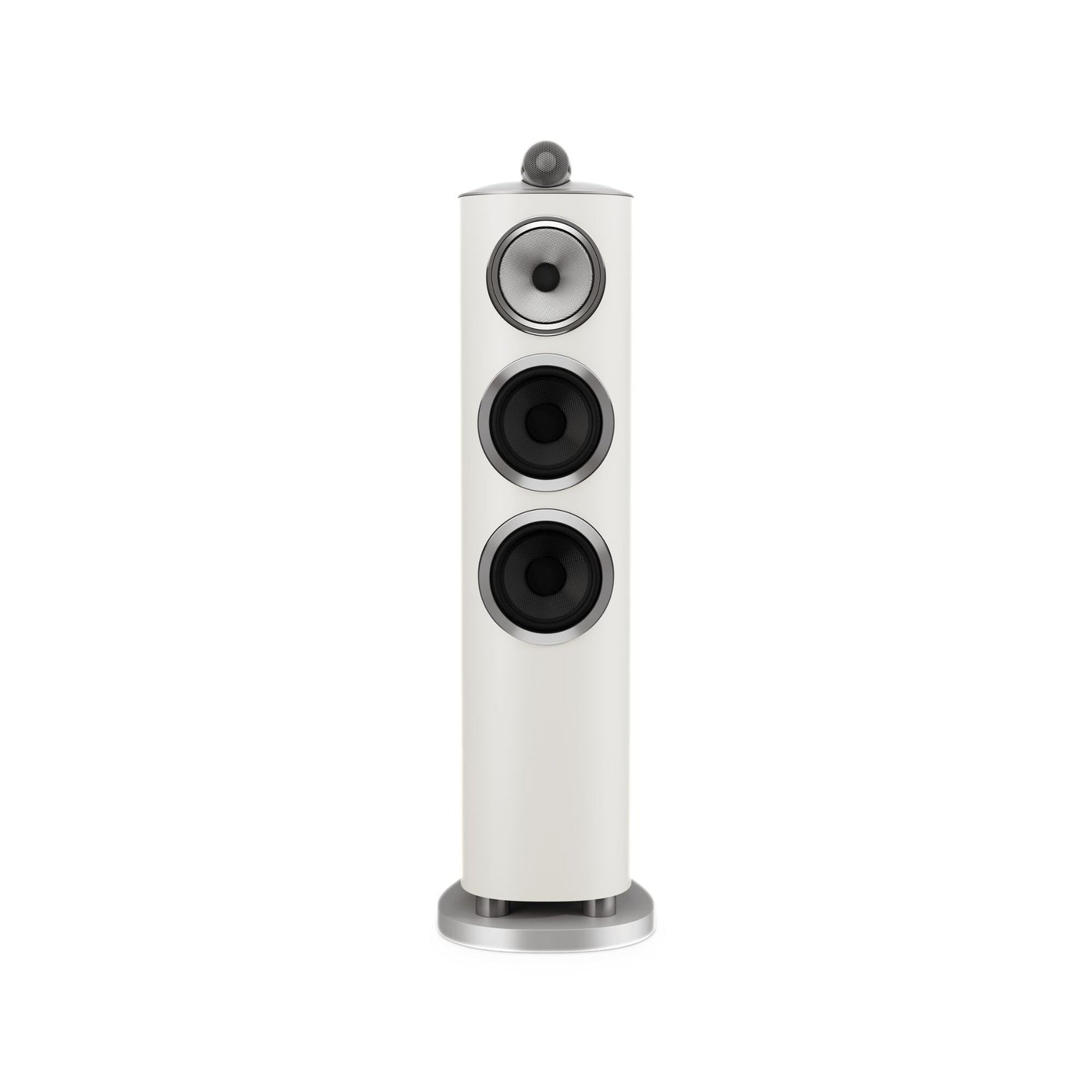

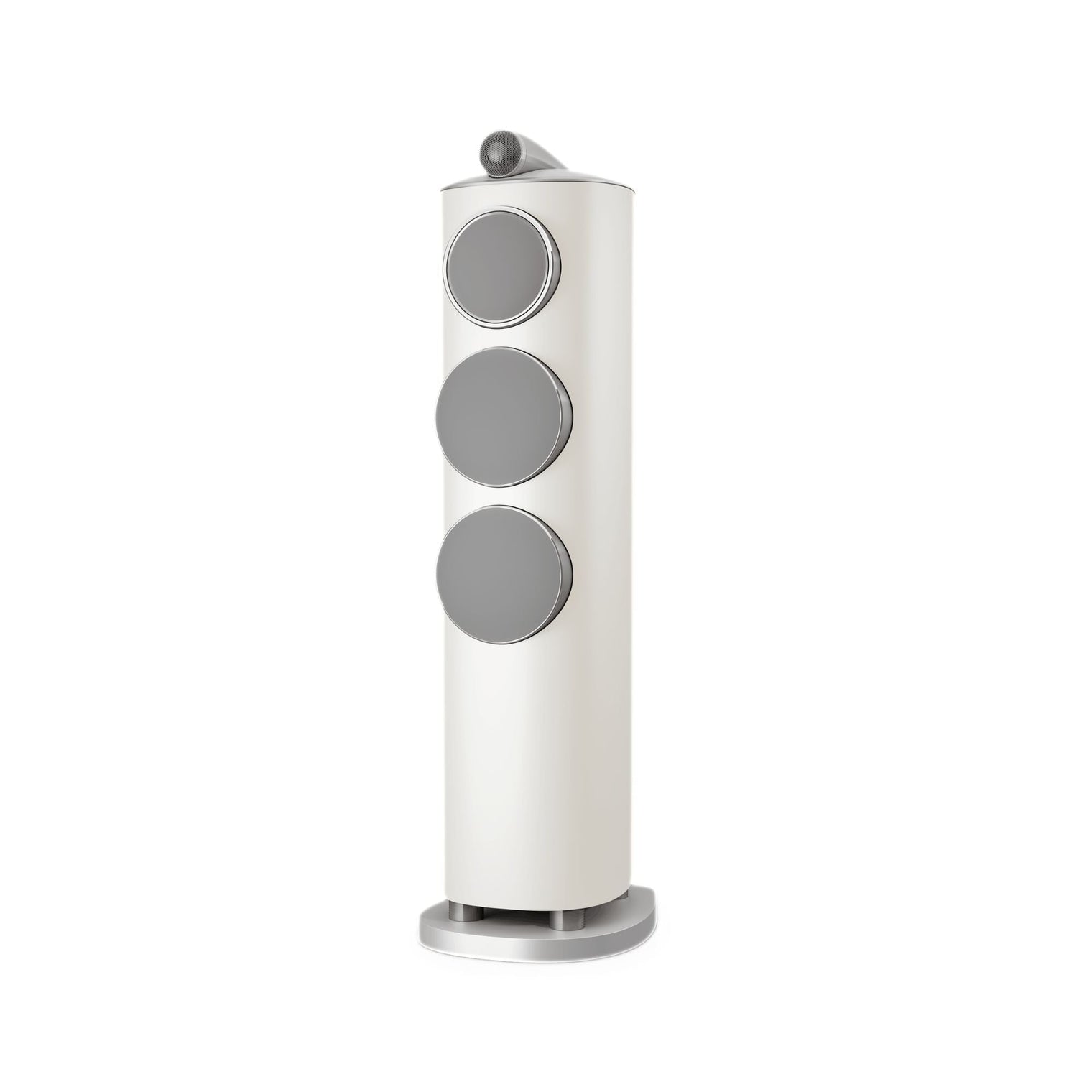

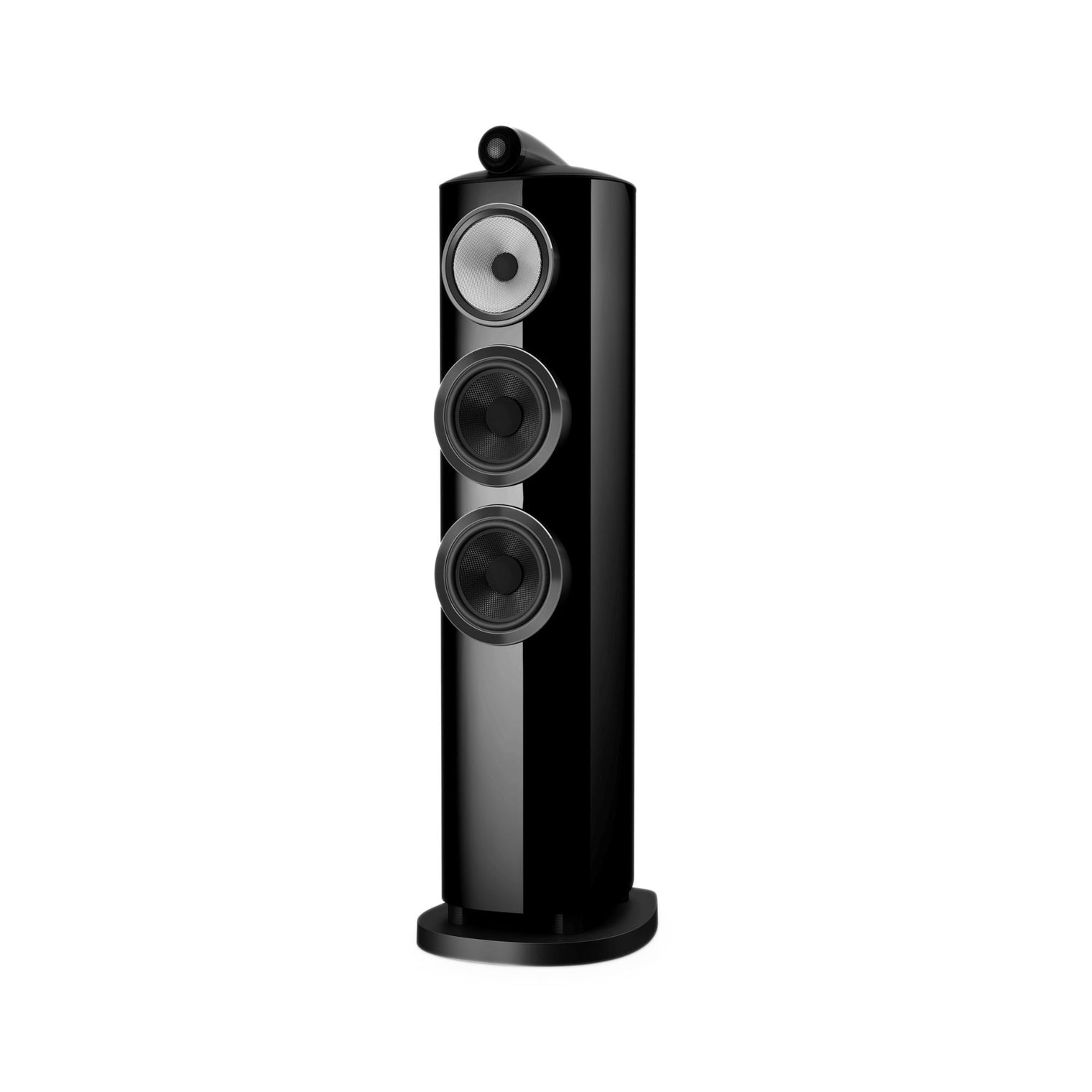

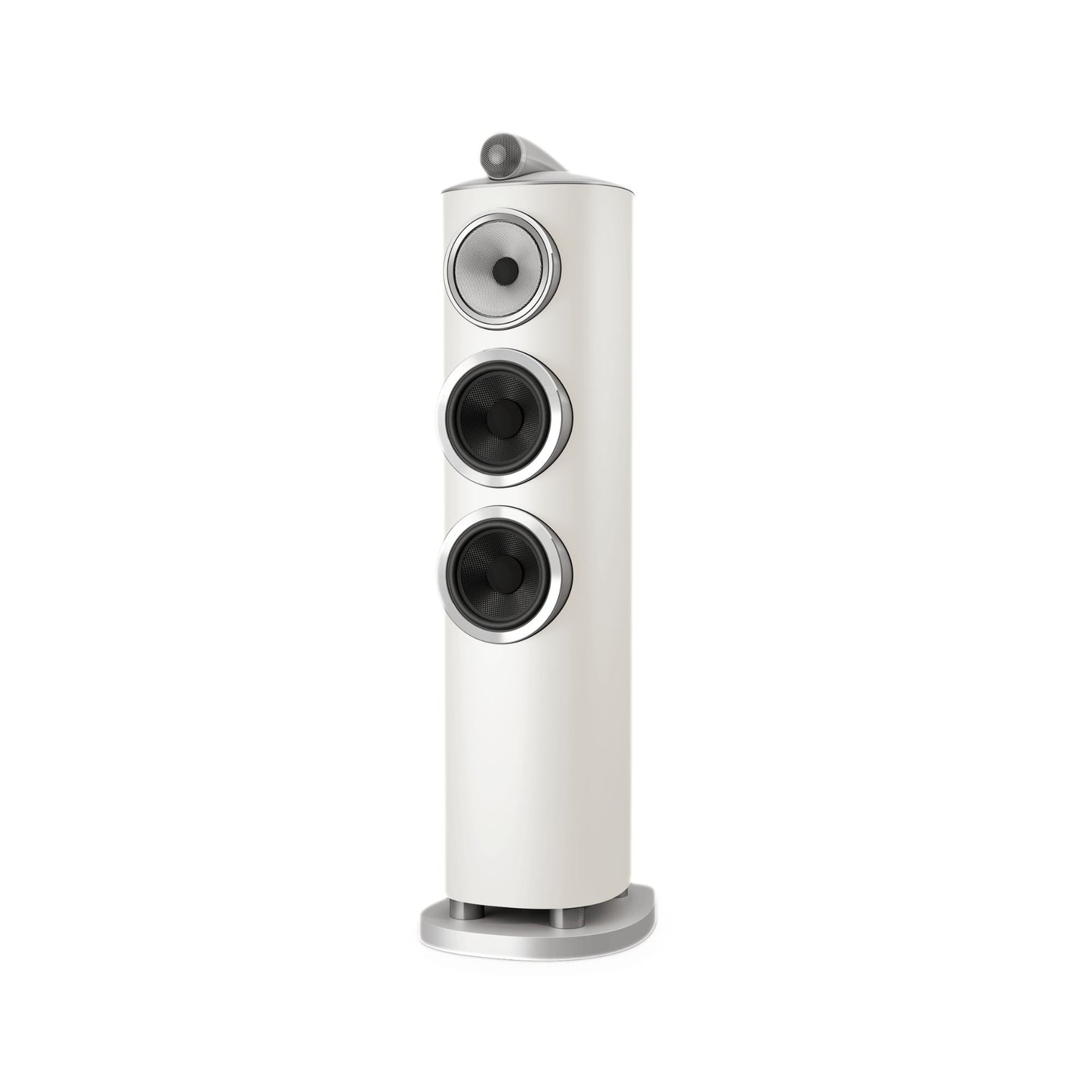

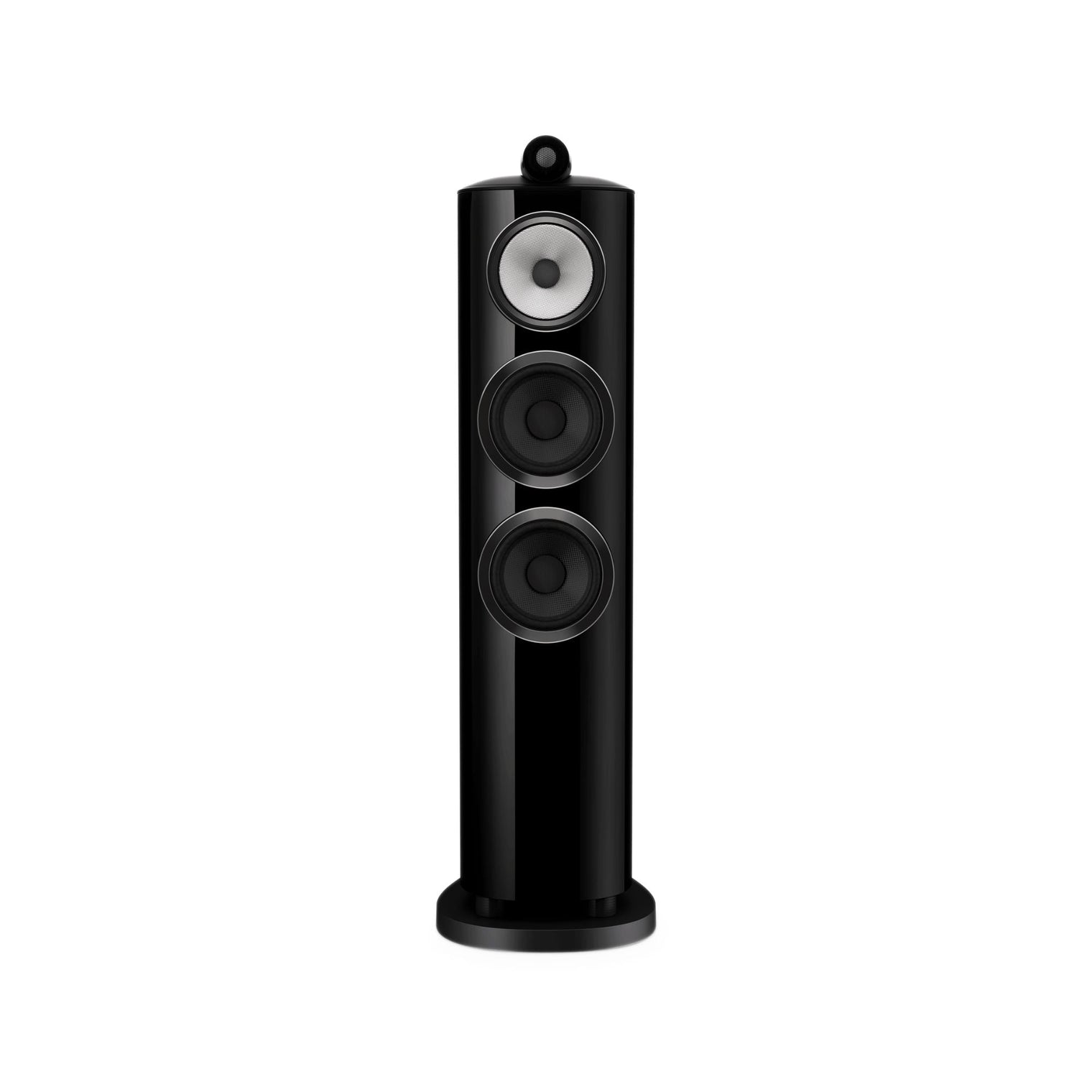

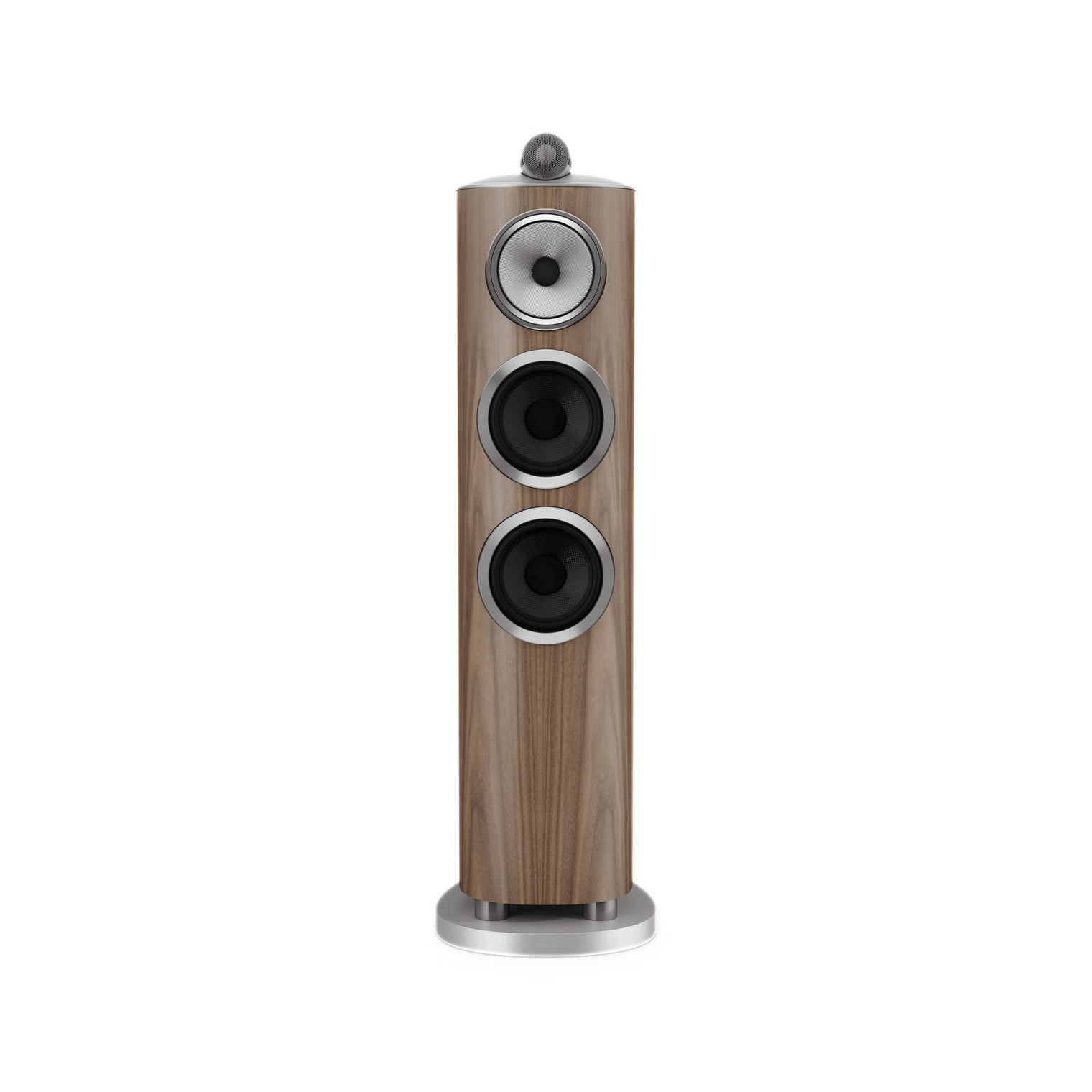

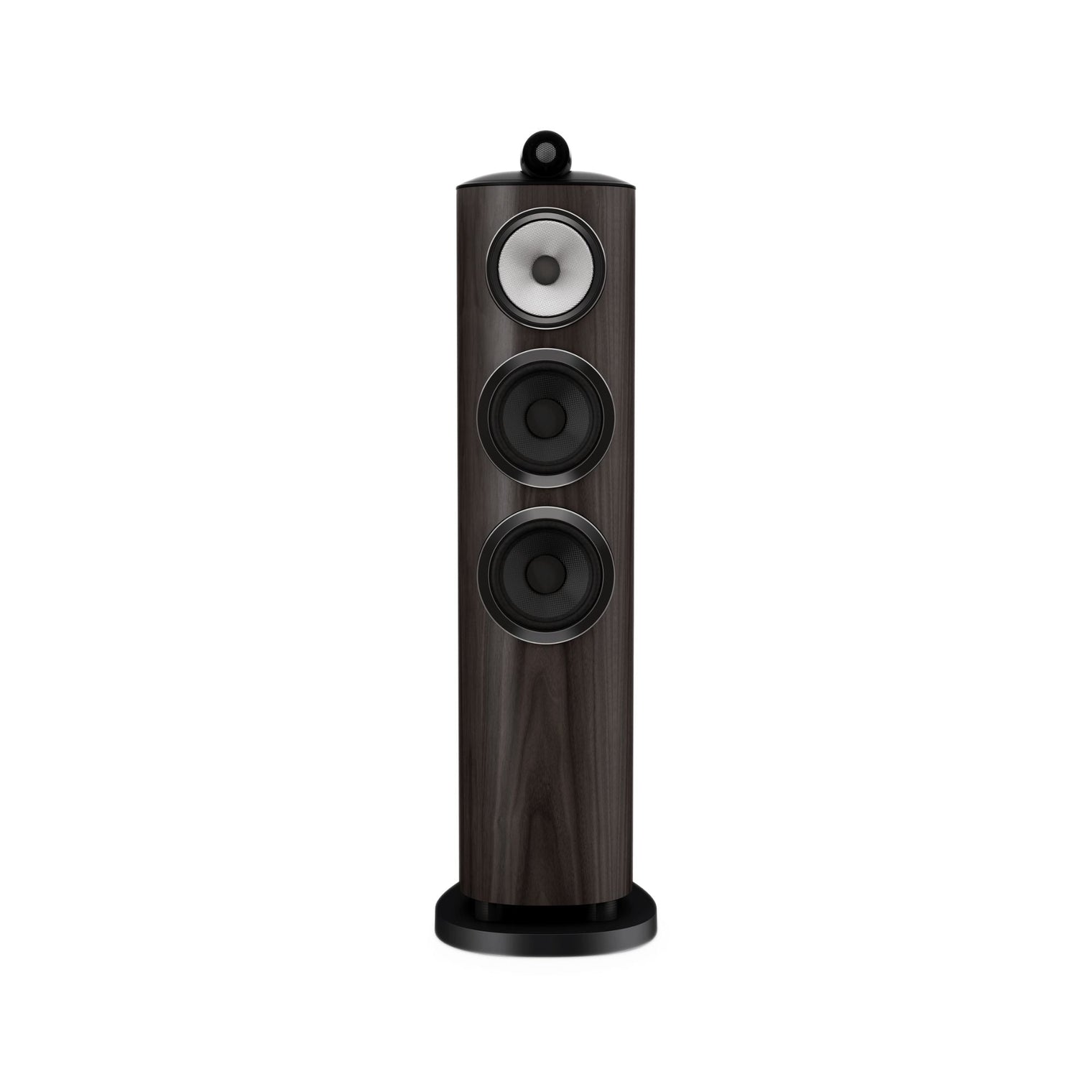

Perfect for those who want a breathtaking listening experience in a smaller footprint, the 804 D5 features the Diamond dome tweeter, housed in the iconic Tweeter-on-Top, for astonishing high-frequency precision. This is complemented by the Continuum cone, located within an all-new Aluminium midrange enclosure, plus two Aerofoil bass drive units, rigidly mounted within the reverse-wrap cabinet. Stabilised on an upgraded plinth with tuned-mass damping, 804 D5 reproduces clarity with breathtaking accuracy. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 804 D5 looks and sounds incredible.
Ultimate drive unit technology
Pairing the most advanced and innovative drive unit technology, the 804 D5 delivers purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for pure performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section and midrange enclosure within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design

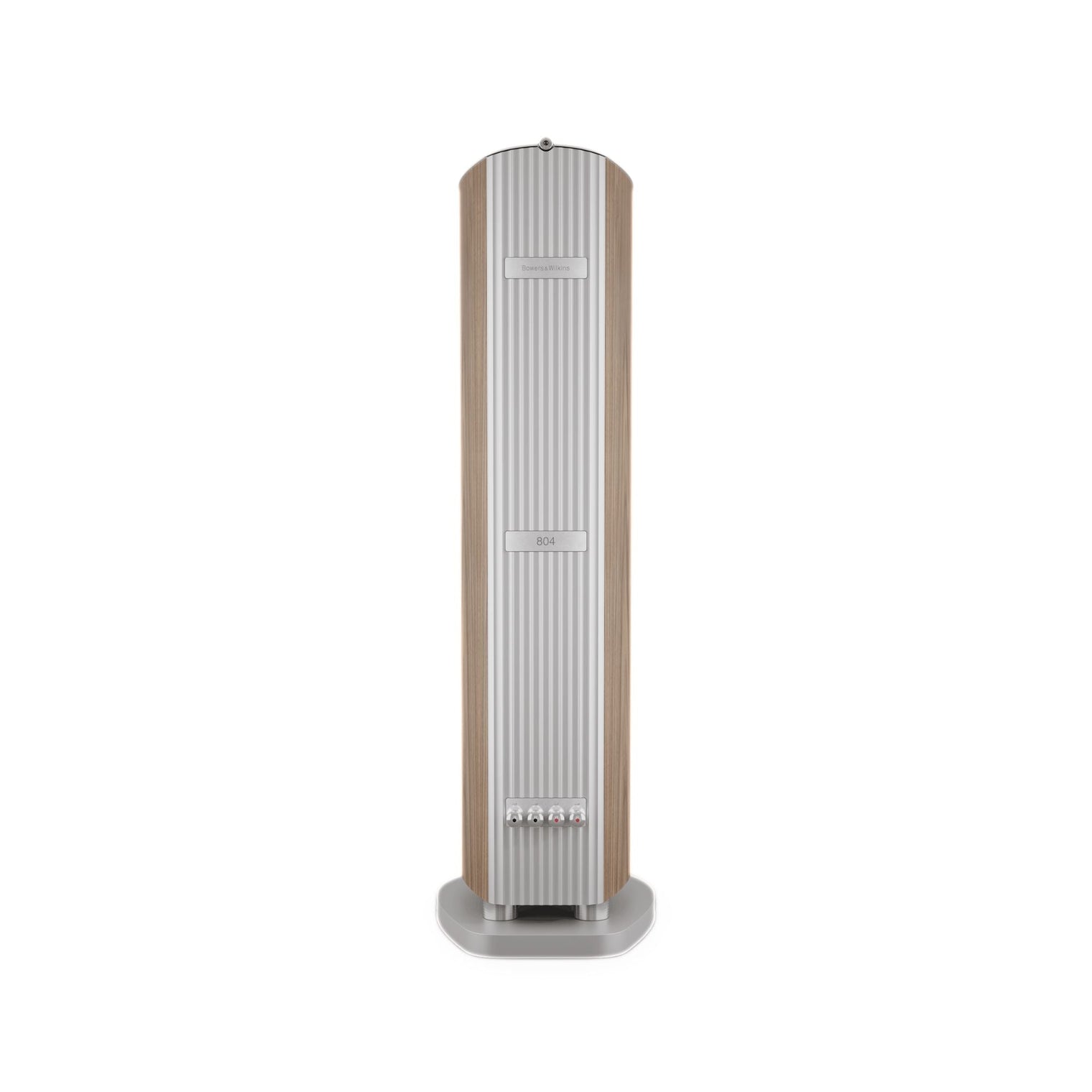

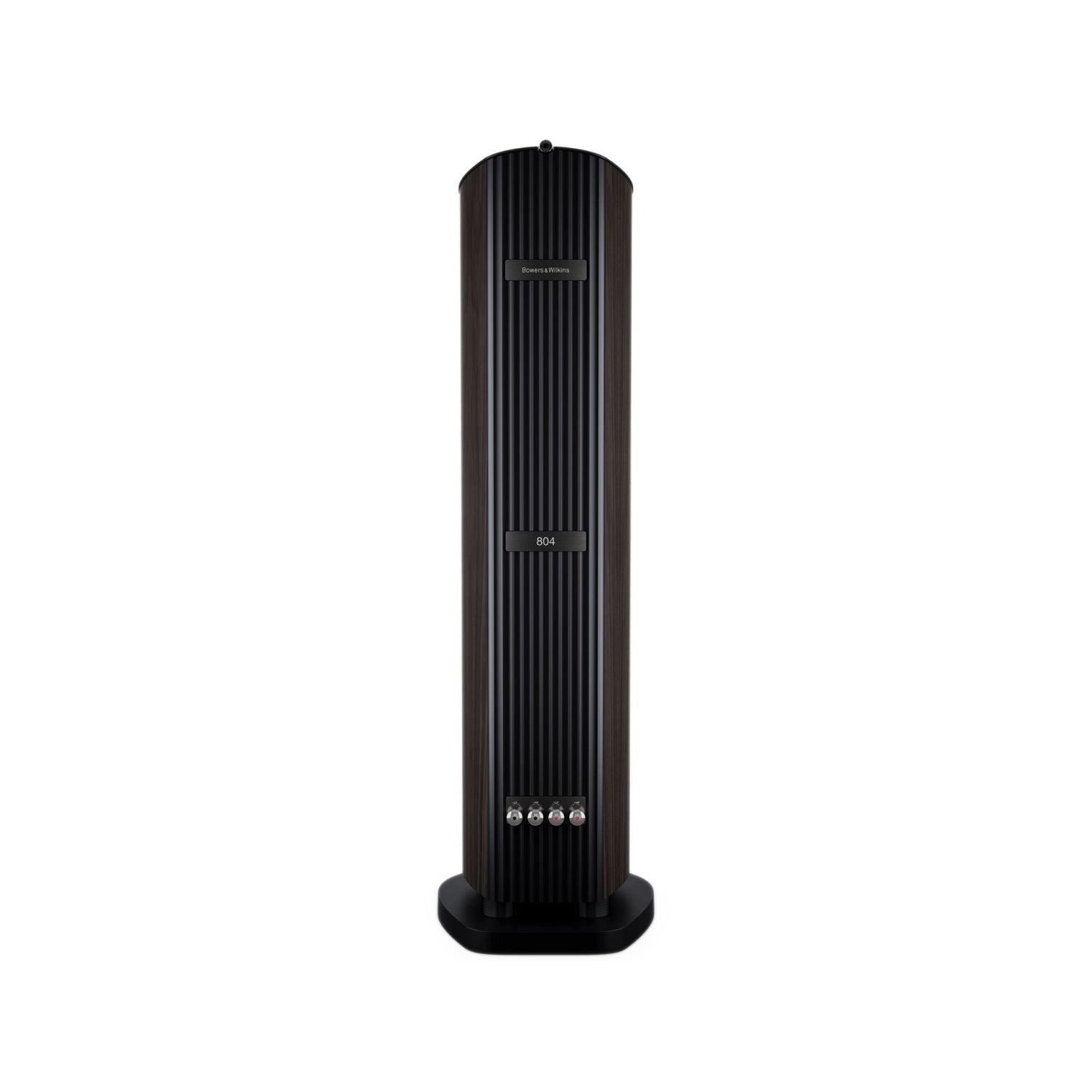

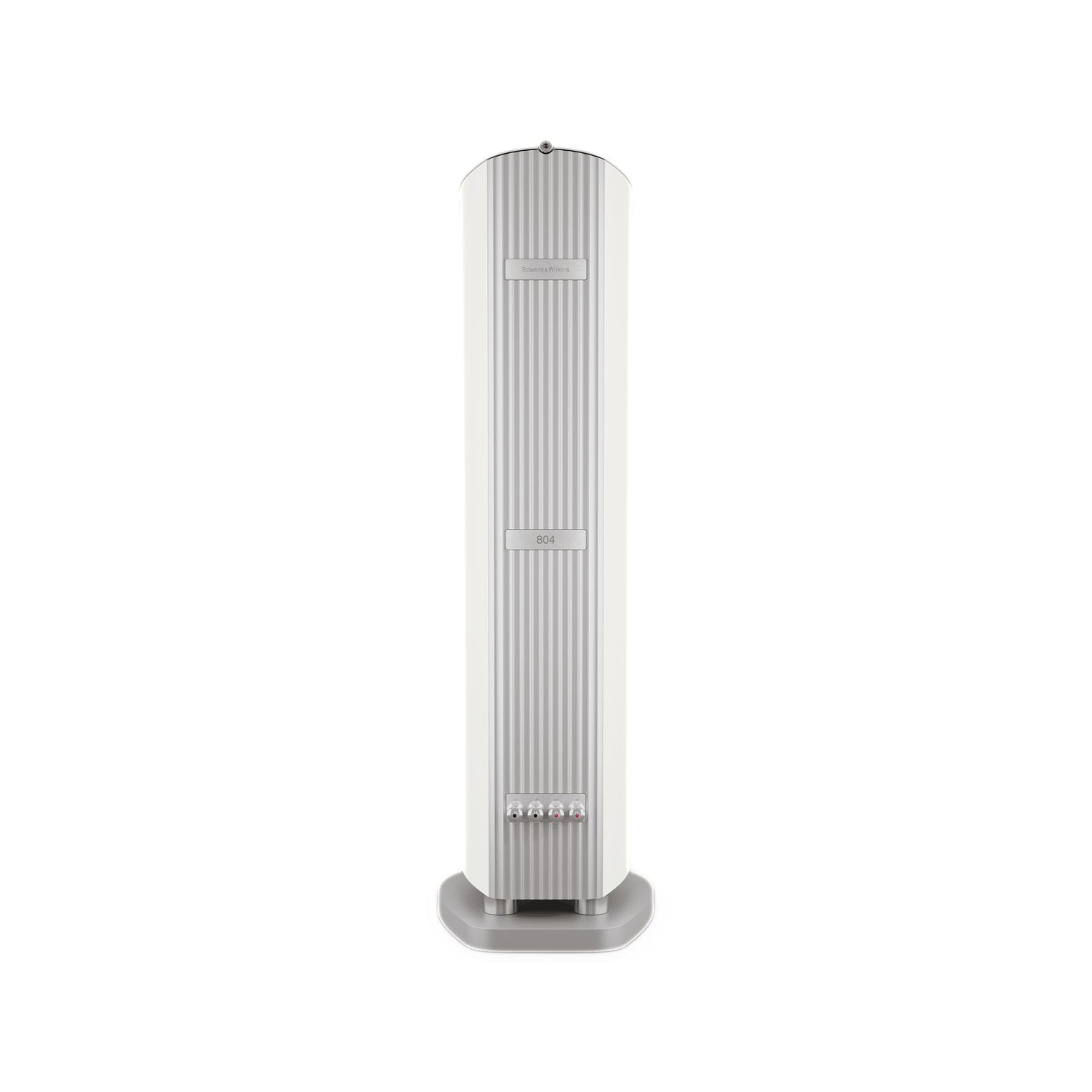

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. The cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
AVStore India is proud to be an authorized dealer of Bowers & Wilkins, offering genuine products, official manufacturer warranty, and expert assistance before and after your purchase.
SPECIFICATIONS
|
Technical features |
Diamond dome tweeter Solid body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Matrix™ Aerofoil™ base cones Flowport™ |
|
Description |
3-way vented-box system |
|
Drive units |
1x ø25mm (1in) Diamond dome high-frequency 1x ø130mm (5in) Continuum cone FST midrange 2x ø165mm (6.5in) Aerofoil™ bass |
|
Frequency range |
-6dB 20Hz to 35kHz |
|
Frequency response |
19Hz to 24kHz (+/-3dB) |
|
Sensitivity |
89dB |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) <1% 90Hz – 20kHz <0.3% 120Hz – 8kHz |
|
Nominal impedance |
8Ω (minimum 3.0Ω) |
|
Recommended amplifier power |
50W – 1000W into 8Ω on unclipped programme |
|
Max recommended cable impedance |
0.1Ω |
|
Cabinet finishes |
Stealth Black Warm White Dark Walnut Light Walnut |
|
Grille finishes |

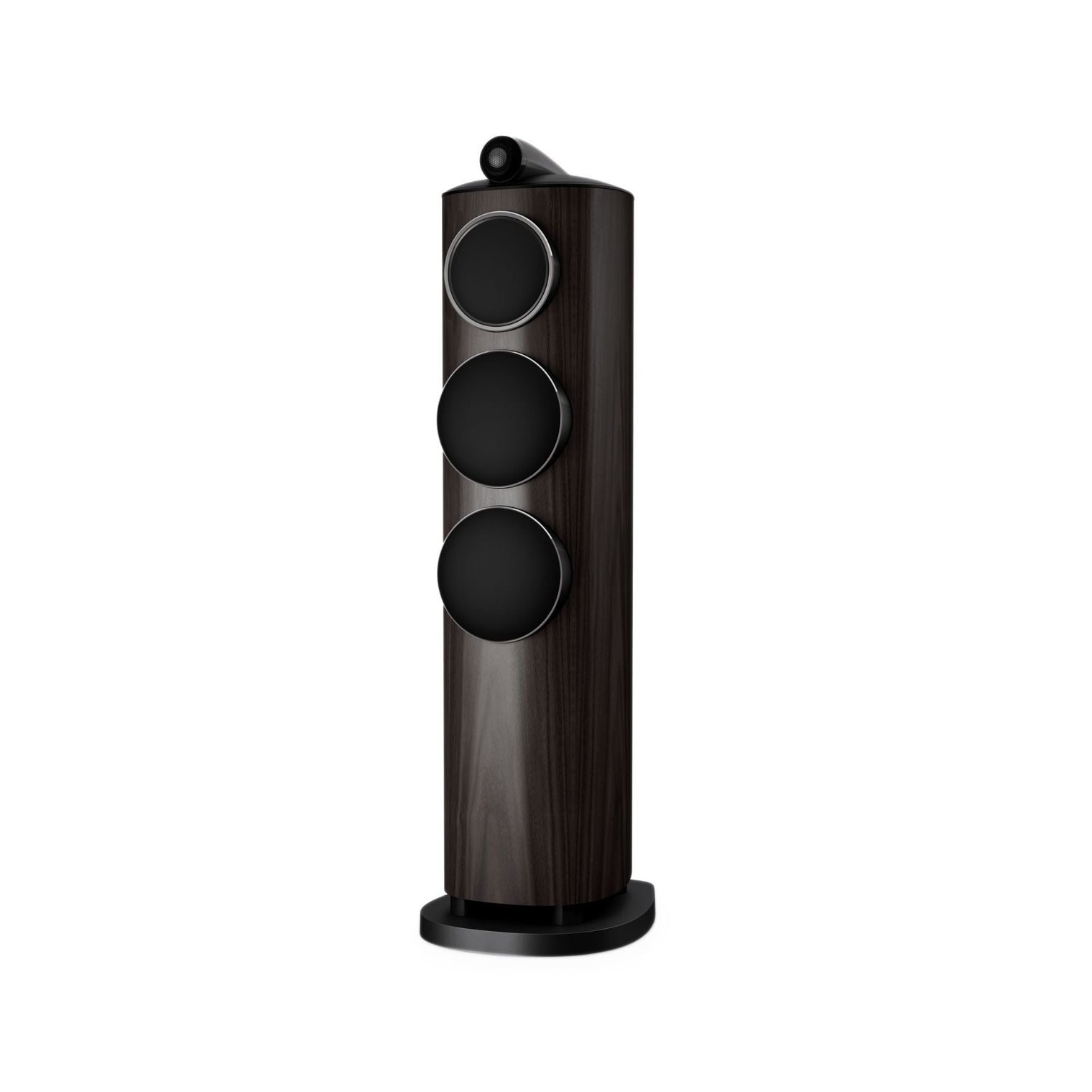

Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
|
Dimensions |
Height: 1101mm (43.3 in) including tweeter and plinth Width: 238mm (9.4 in) cabinet only, 308mm (12.1in) including plinth Depth: 337mm (13.3in) cabinet only, 392mm (15.4in) including grille and terminals |
|
Net weight |
40.3kg (88.7lbs) |
