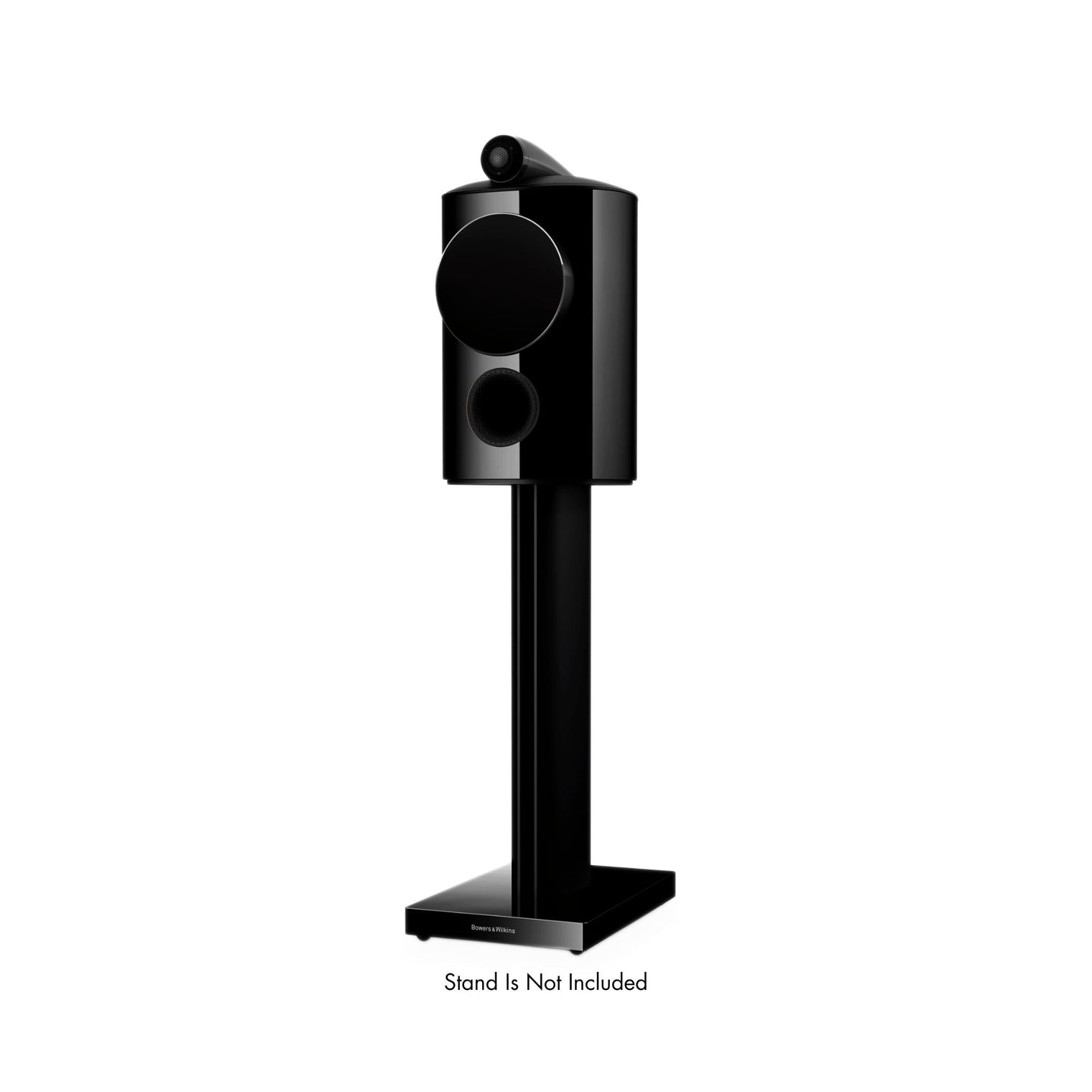

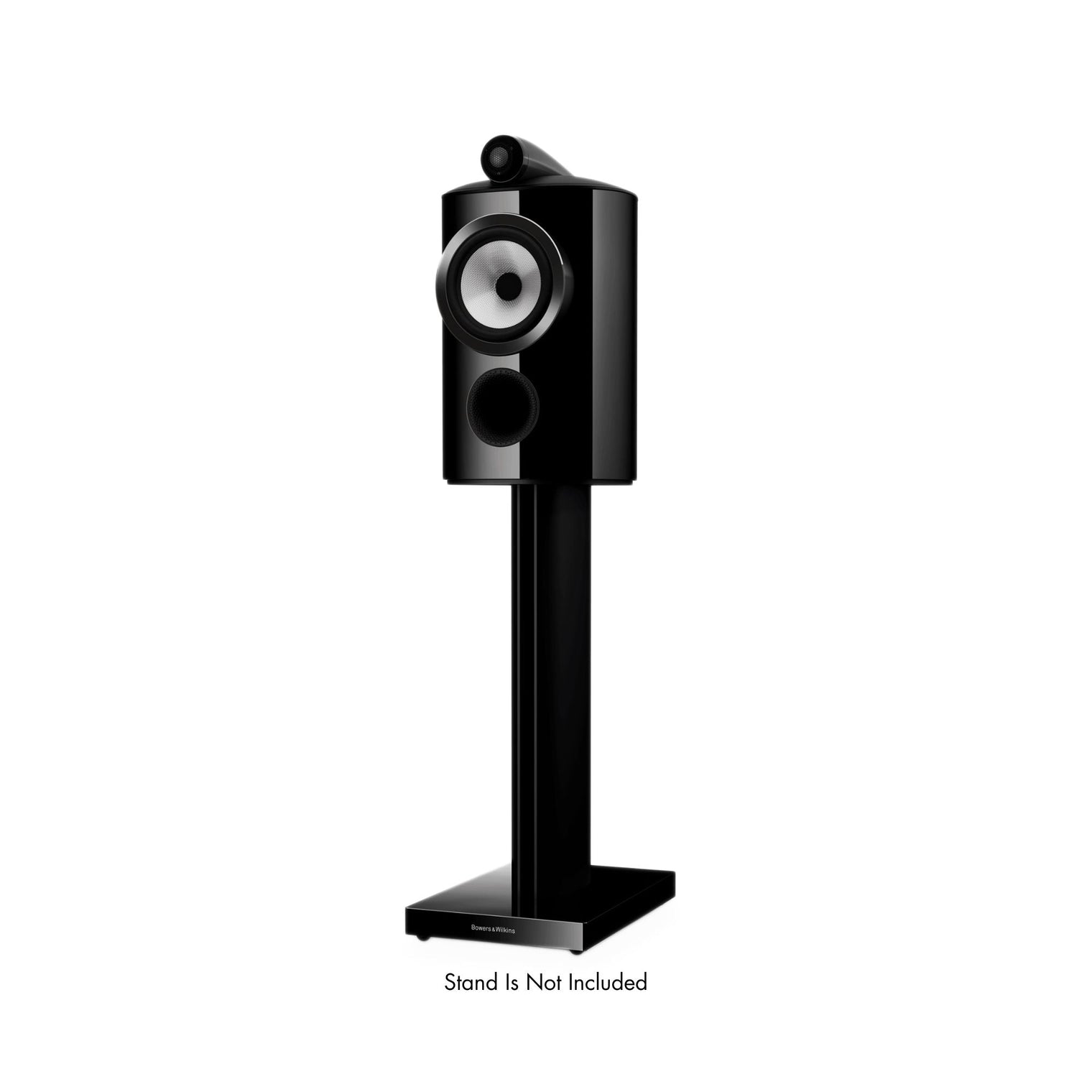

The 805 D5 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range. While it’s best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.

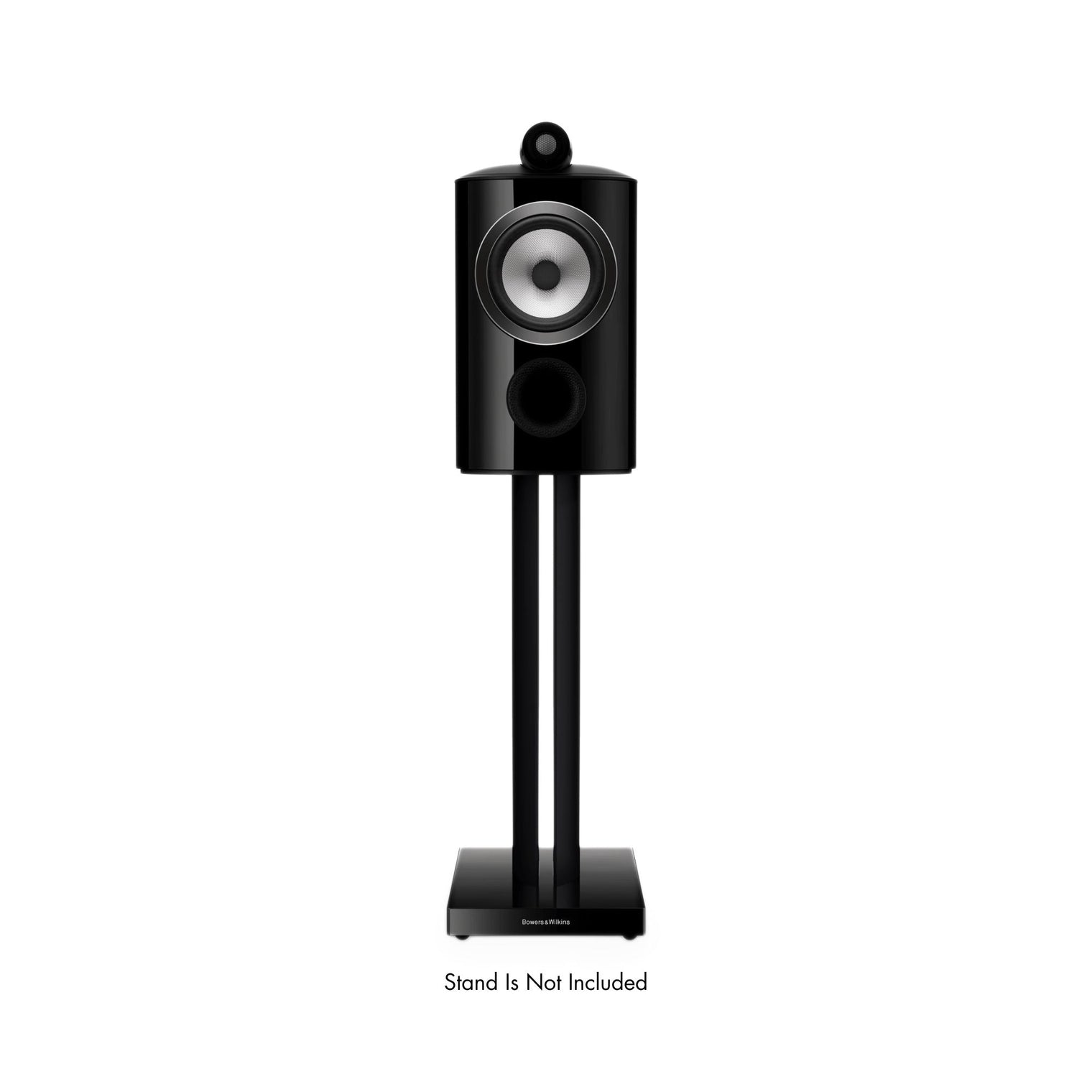

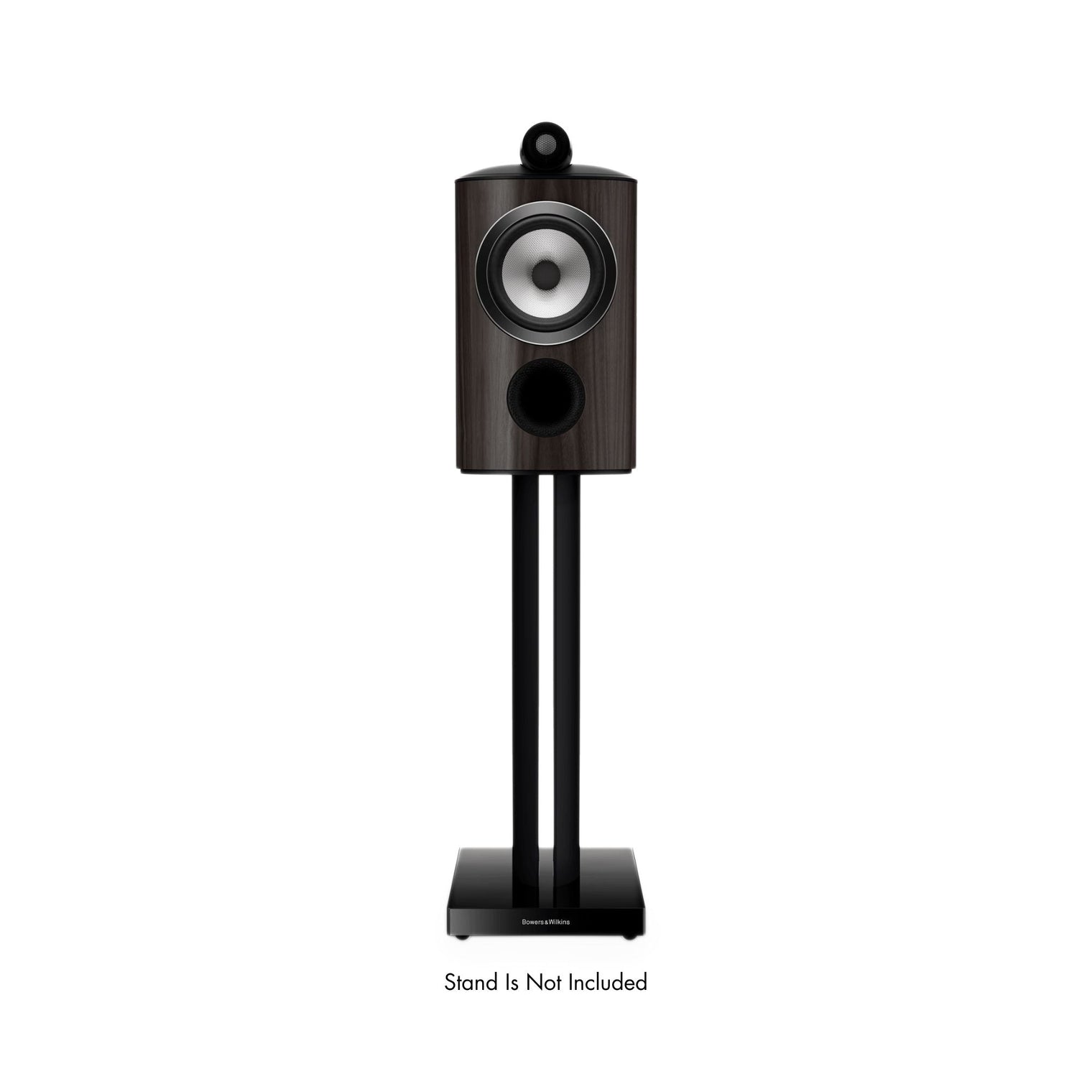

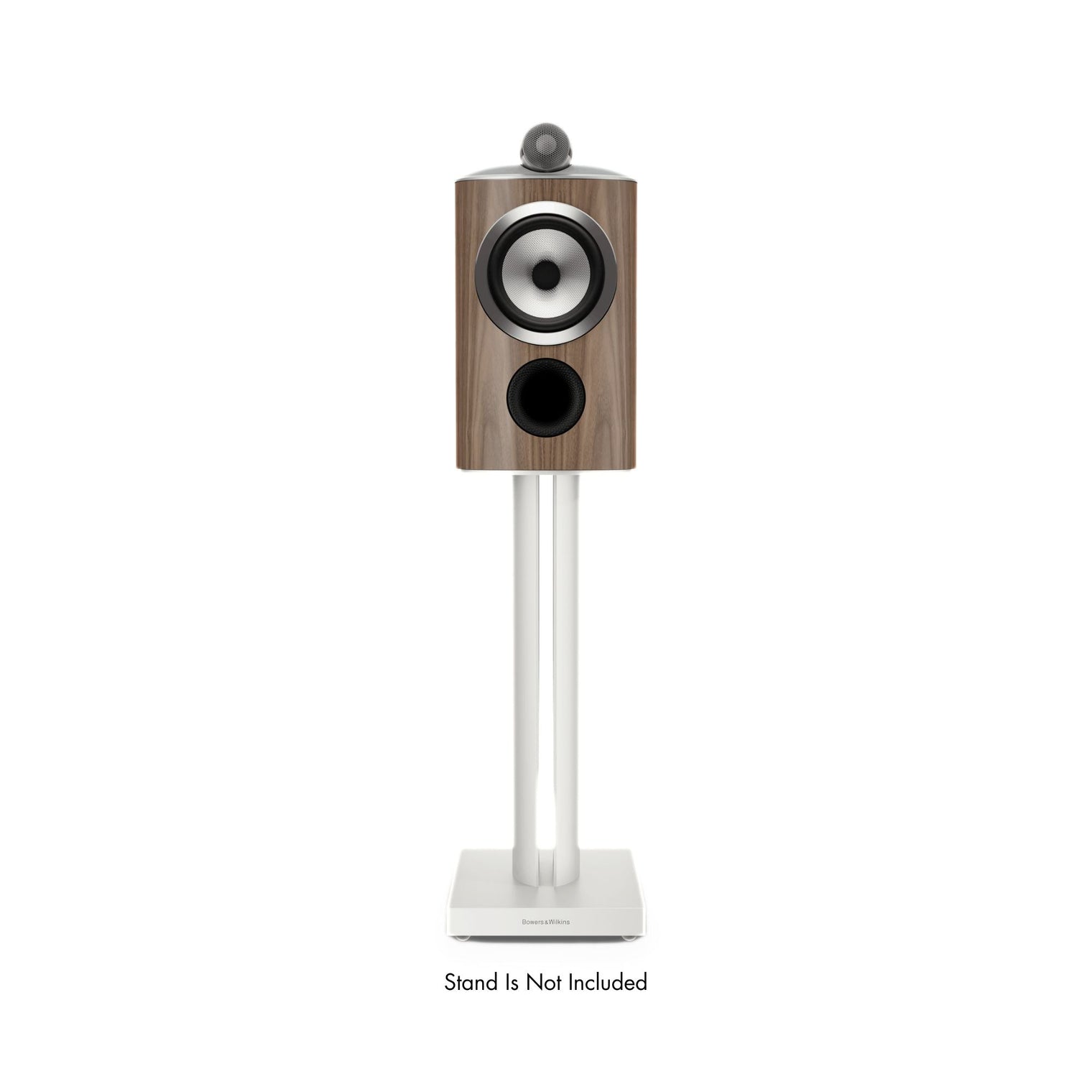

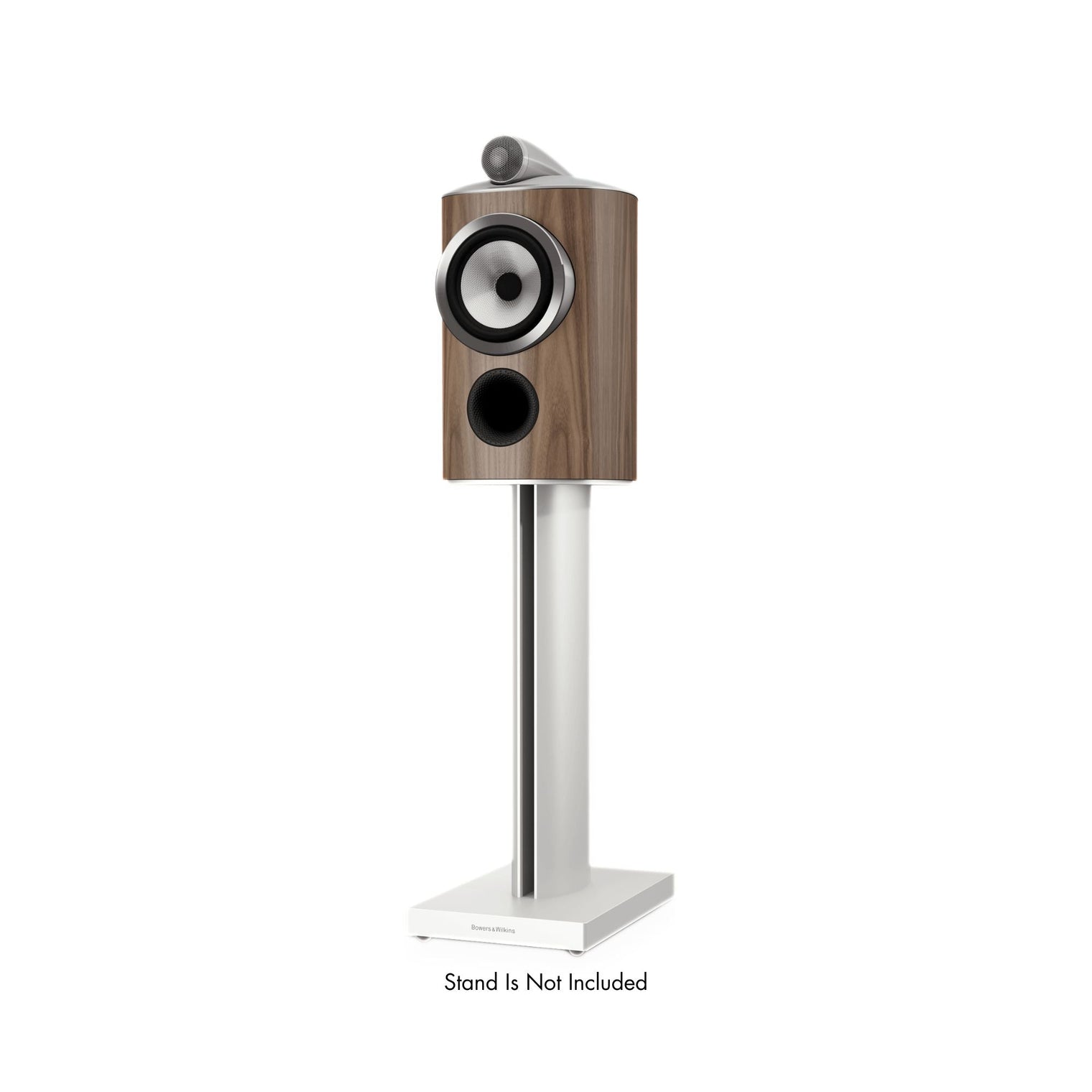

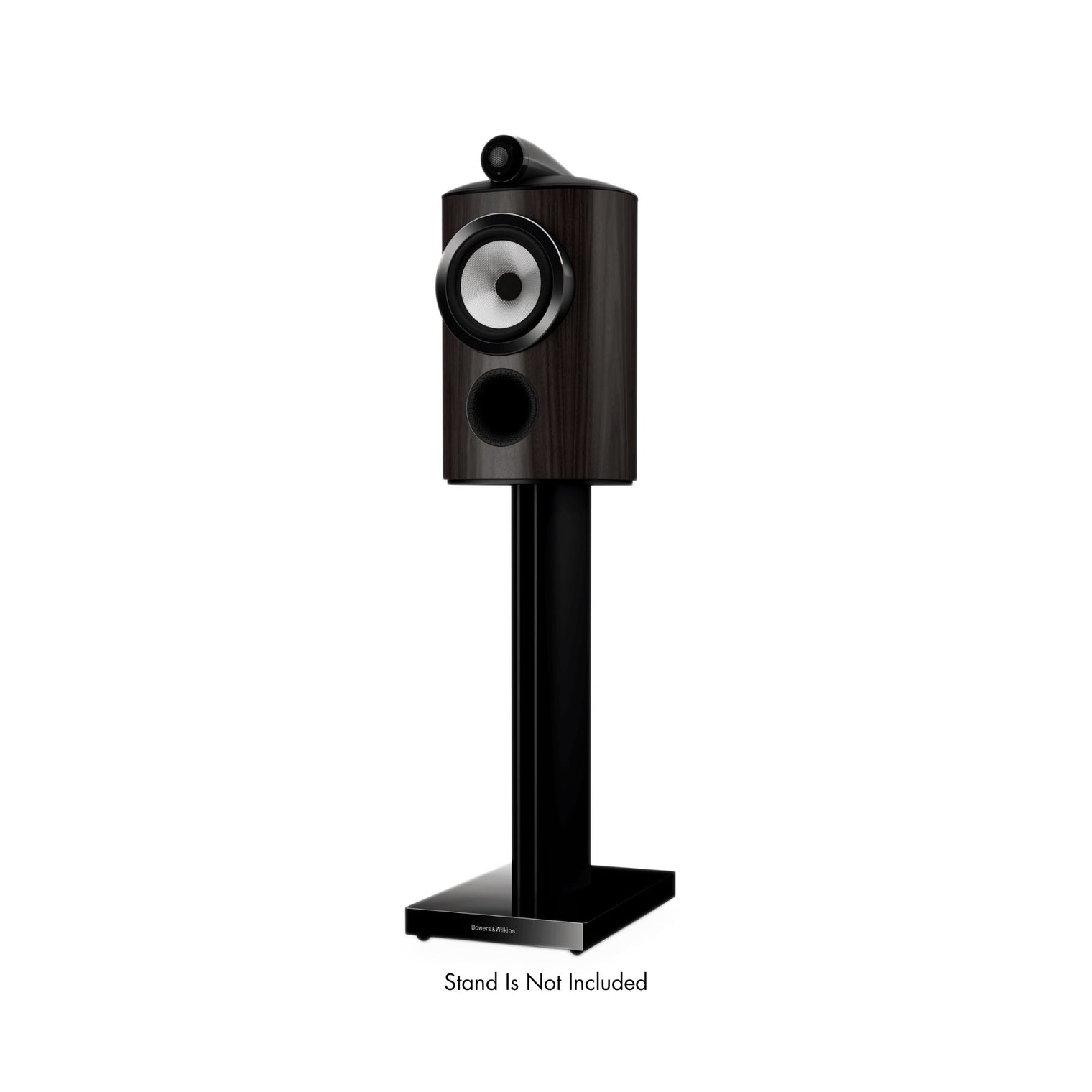

Equipped with THE Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 sounds and performs best when securely atop its bespoke speaker stands. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful.
Ultimate drive unit technology
Pairing the most advanced and innovative drive unit technology, the 805 D5 delivers the purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for pure performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design
The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. The cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
AVStore India is proud to be an authorized dealer of Bowers & Wilkins, offering genuine products, official manufacturer warranty, and expert assistance before and after your purchase.
SPECIFICATIONS
|
Technical features |
Diamond dome tweeter Solid body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Matrix™ Flowport™ |
|
Description |
3-way vented-box system |
|
Drive units |
1x ø25mm (1in) Diamond dome high-frequency 1x ø165mm (6.5in) Continuum cone bass/midrange |
|
Frequency range |
-6dB 34Hz to 35kHz |
|
Frequency response |
42Hz to 28kHz (+/-3dB) |
|
Sensitivity |
88dB |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis) <1% 90Hz – 20kHz <0.3% 120Hz – 8kHz |
|
Nominal impedance |
8Ω (minimum 4.6Ω) |
|
Recommended amplifier power |
50W – 1000W into 8Ω on unclipped programme |
|
Max recommended cable impedance |
0.1Ω |
|
Cabinet finishes |

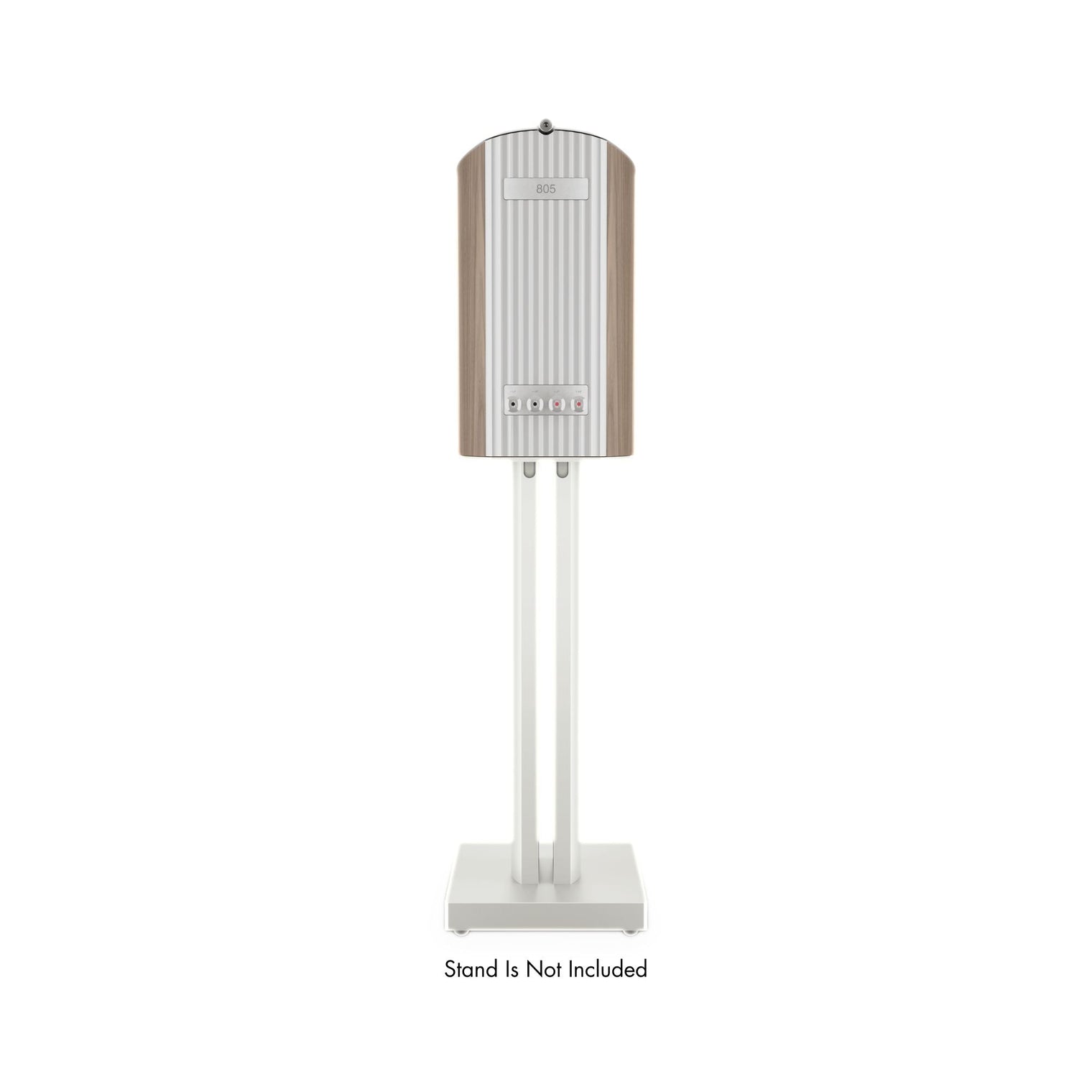

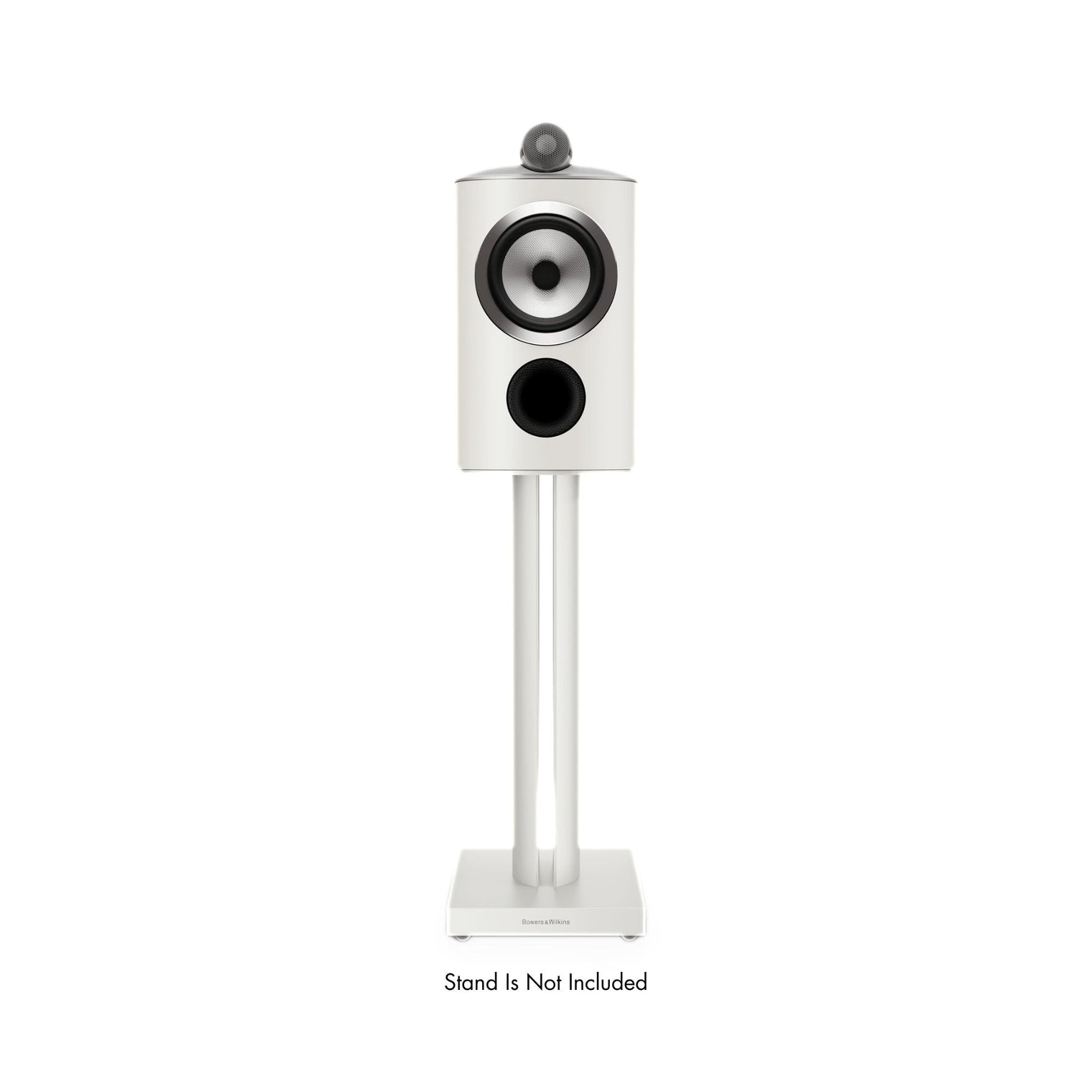

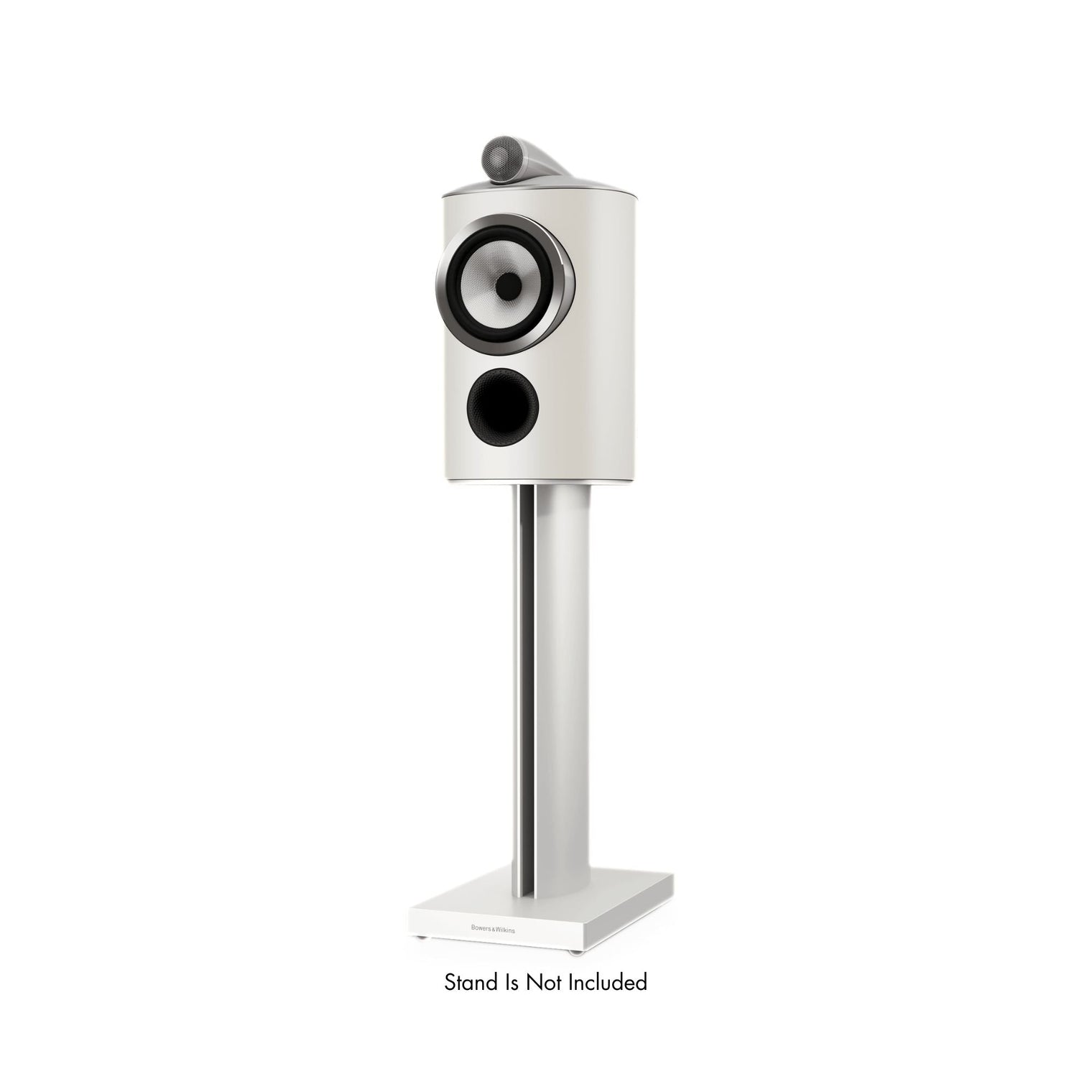

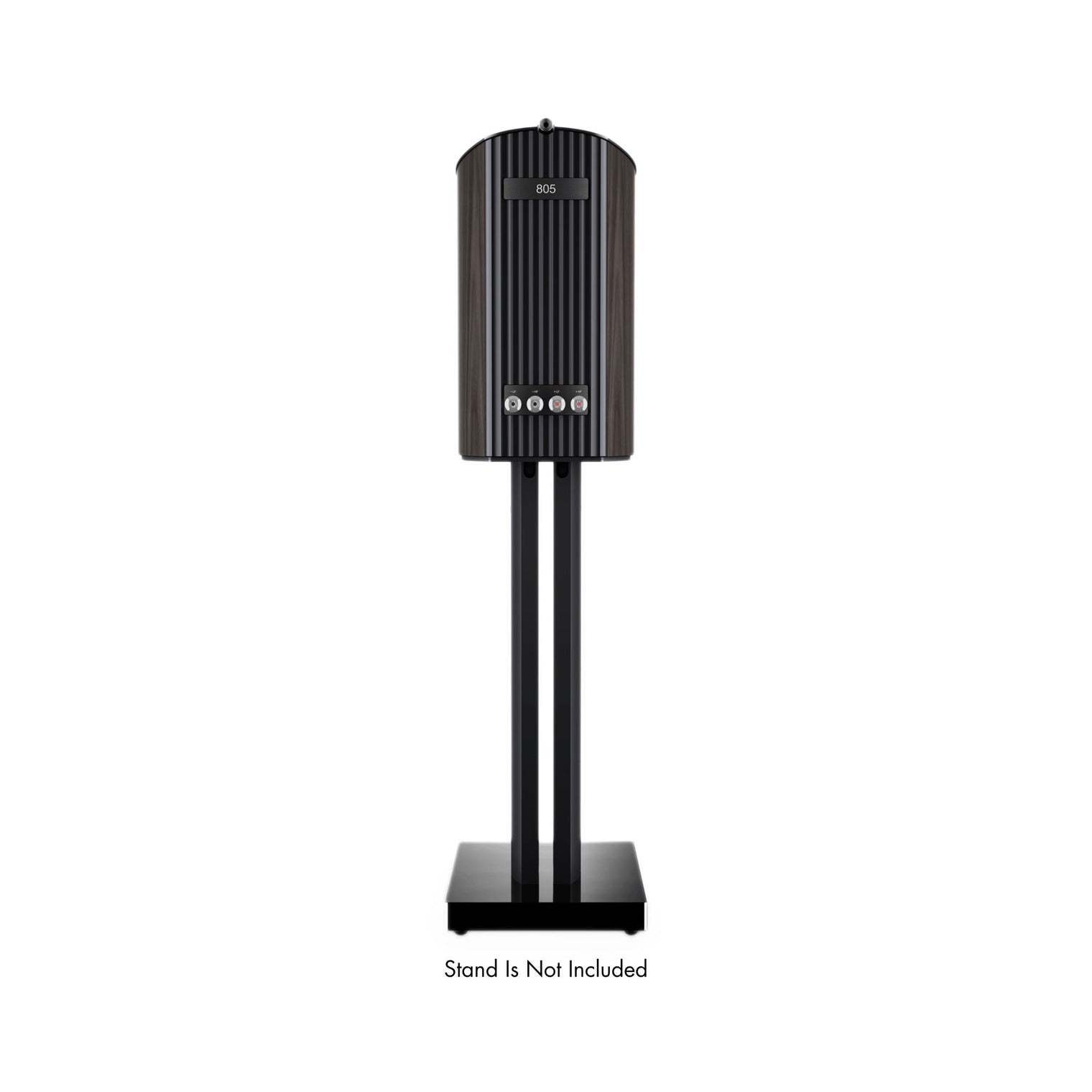

Stealth Black Warm White Dark Walnut Light Walnut |
|

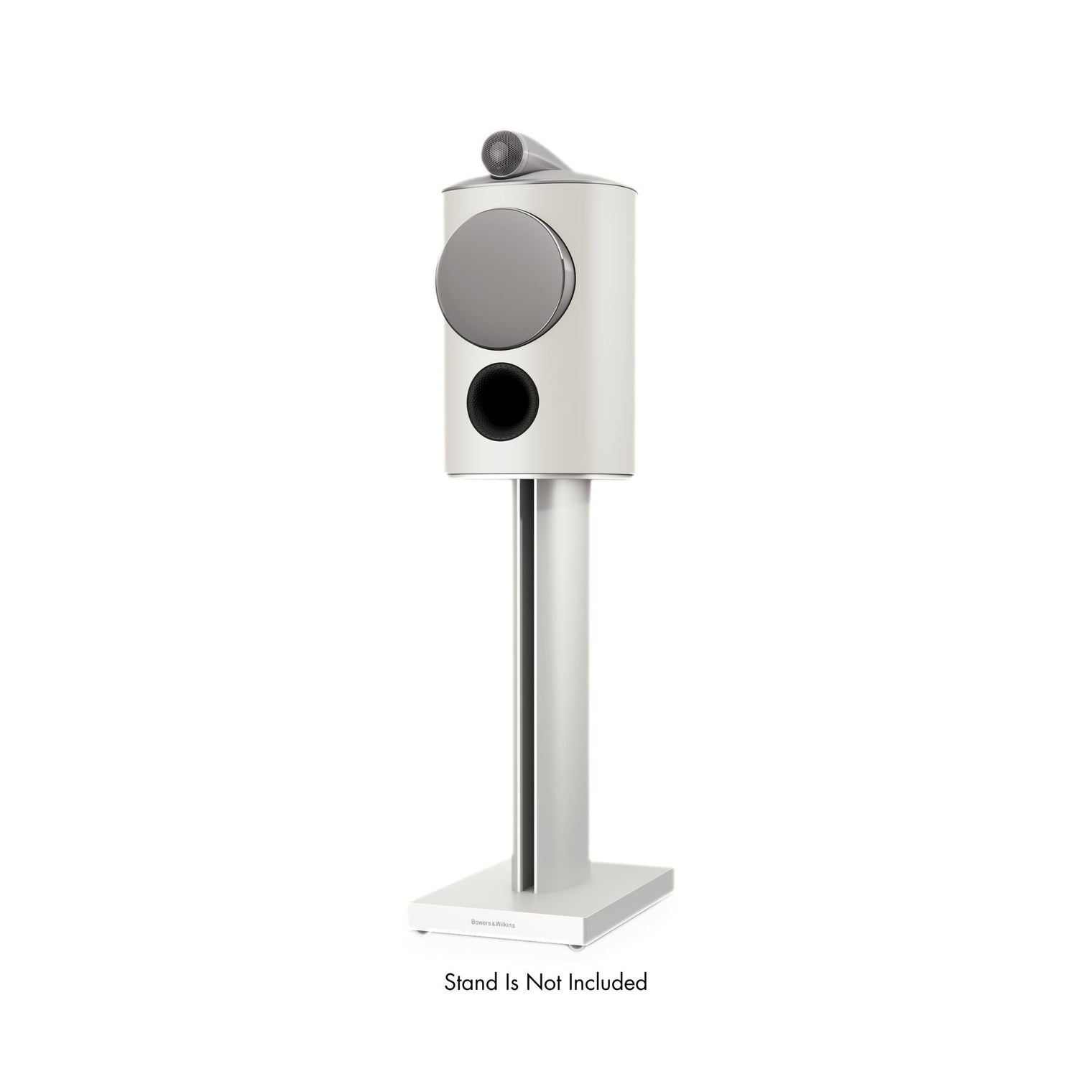

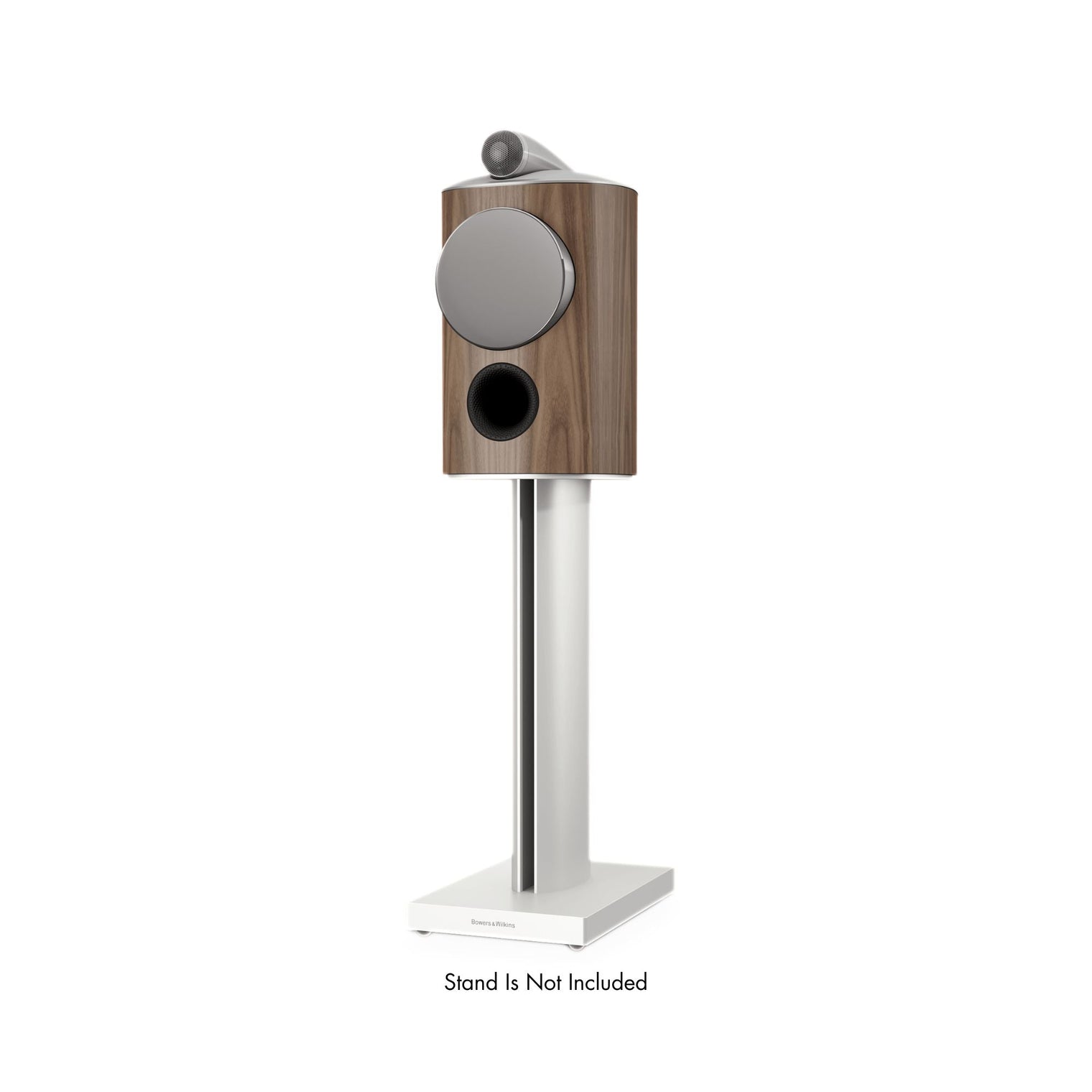

Grille finishes |
Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
|
Dimensions |
Height: 439mm (17.3 in) including tweeter Width: 241mm (9.5 in) cabinet only, 447 Depth: 322mm (12.7in) cabinet only, 363mm (14.3in) including grille and terminals |
|
Net weight |
16.4kg (36.0lbs) |
|
Accessories |
FS-805 Black, Stand: Titanium |
