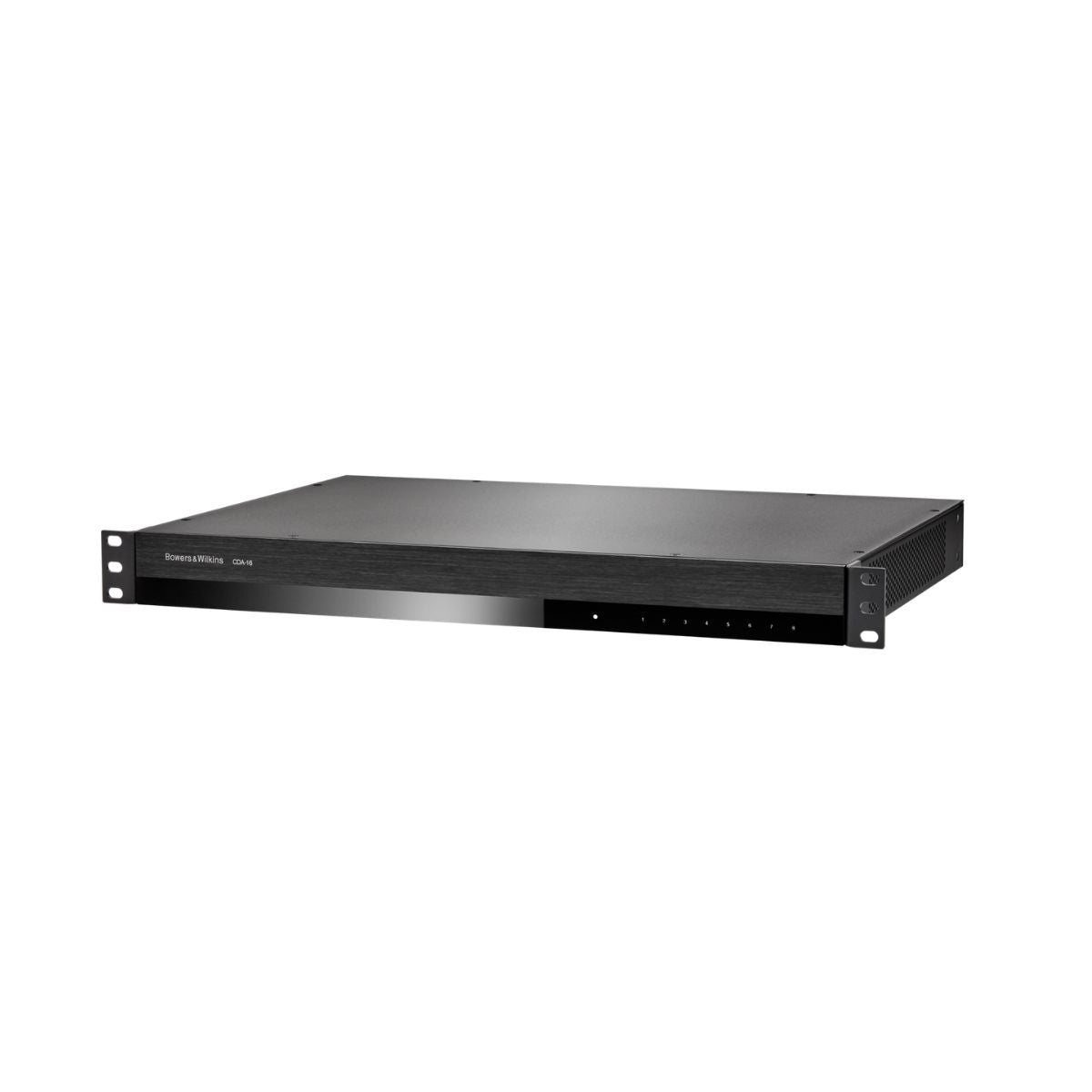

CDA-16 has been engineered to work with any existing Bowers & Wilkins custom installation speaker. With the ability to drive 16 channels or 8 zones in a compact 1U design, CDA-16 gives you the maximum performance with the minimum rack space
The power to impress
Ensure the best possible sound from your in-wall or in-ceiling Custom Installation loudspeakers with our powerful yet compact distribution amplifier.
Compact powerhouse

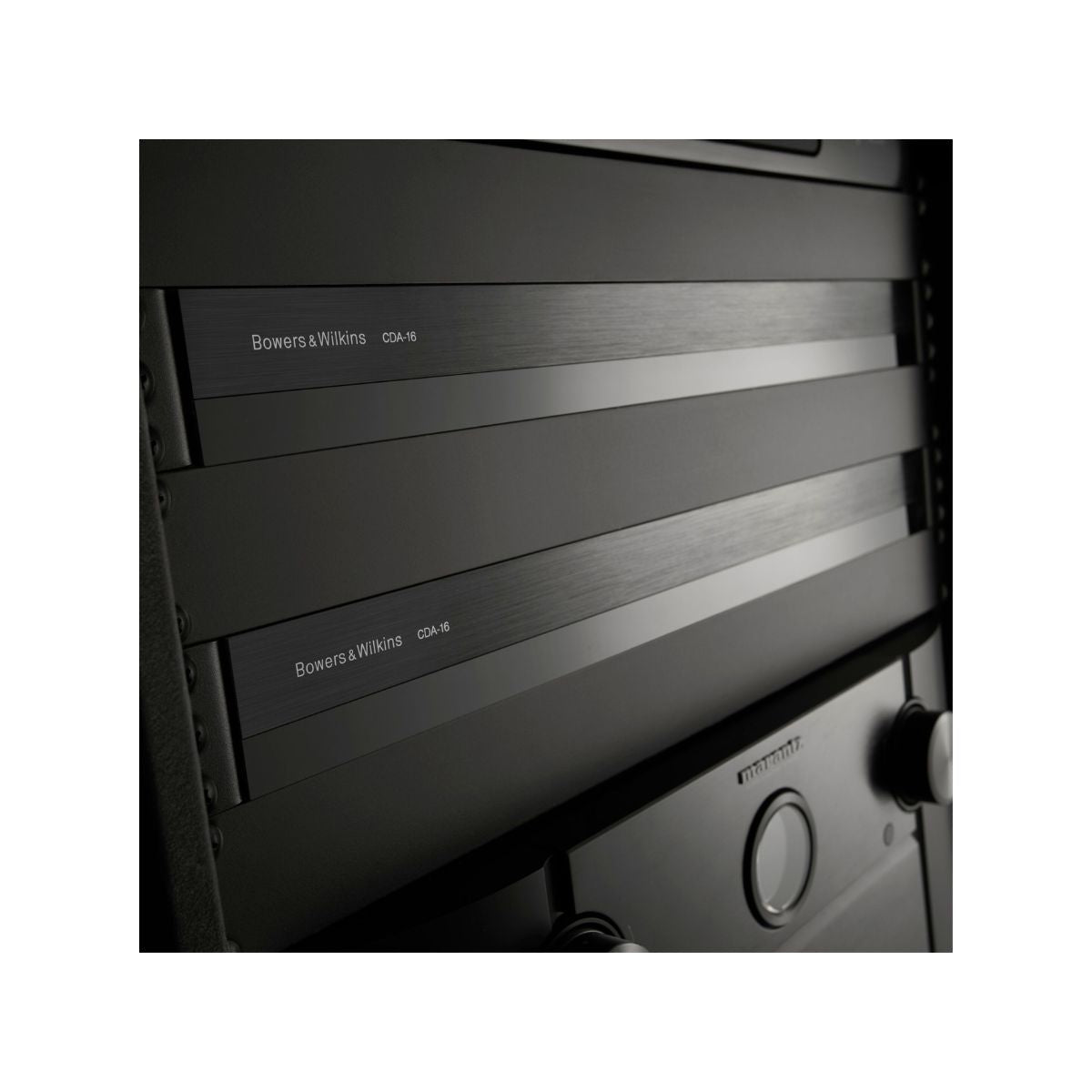

Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space thanks to its compact 1U design.
Mighty flexible
CDA-16 has a configurable specification supporting bridging of its Class D stereo channels into even more powerful mono outputs when needed.
AV Store India is proud to be an authorized dealer of Pro-Ject Audio,Offering genuine products ,official manufacturer warranty, and expert assistance before and after your purchase.
SPECIFICATIONS
| Load impedance range | >3Ω per channel (>6Ω in bridge mode) |
| DC offset voltage | <50mV |
| Frequency Response (-3dB) | <10Hz to >50kHz, any load impedance |
| Frequency response accuracy 20Hz-20kHz: | ±0.5dB |
| Signal to Noise ratio (Ref. 50W/8Ω) | >100dB A-Weighted |
| THD+N (1kHz, 12.5W, 4Ω) | typically 0.05% |
| Voltage Gain | 34.9dB to - infinity, adjustable |
| Input impedance | 15KΩ |
| Maximum input voltage | 6.8V peak (4.8V rms sine wave) |
| Signal sense threshold | 2.5mV (independent of Gain setting) |
| Wake-up time | <0.2s (If other zones active) <2s (From all zones inactive) |
| Turn-off time | 15 minutes from last signal detected |
| 12V trigger input threshold | typically 3V (recommended input is 5-15V) |

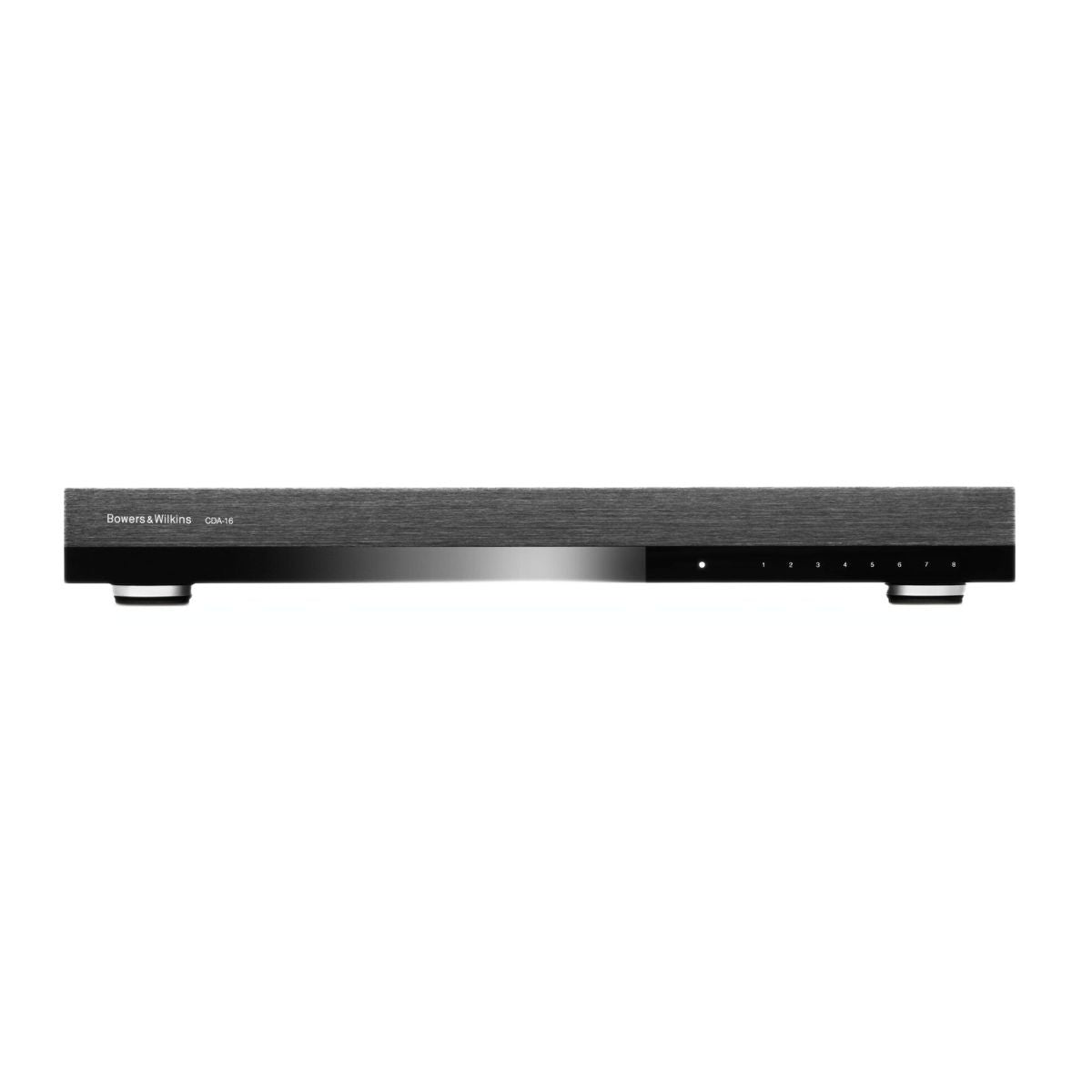

| Front panel | 1 x Power LED (unit active – White, Fault – Red) |

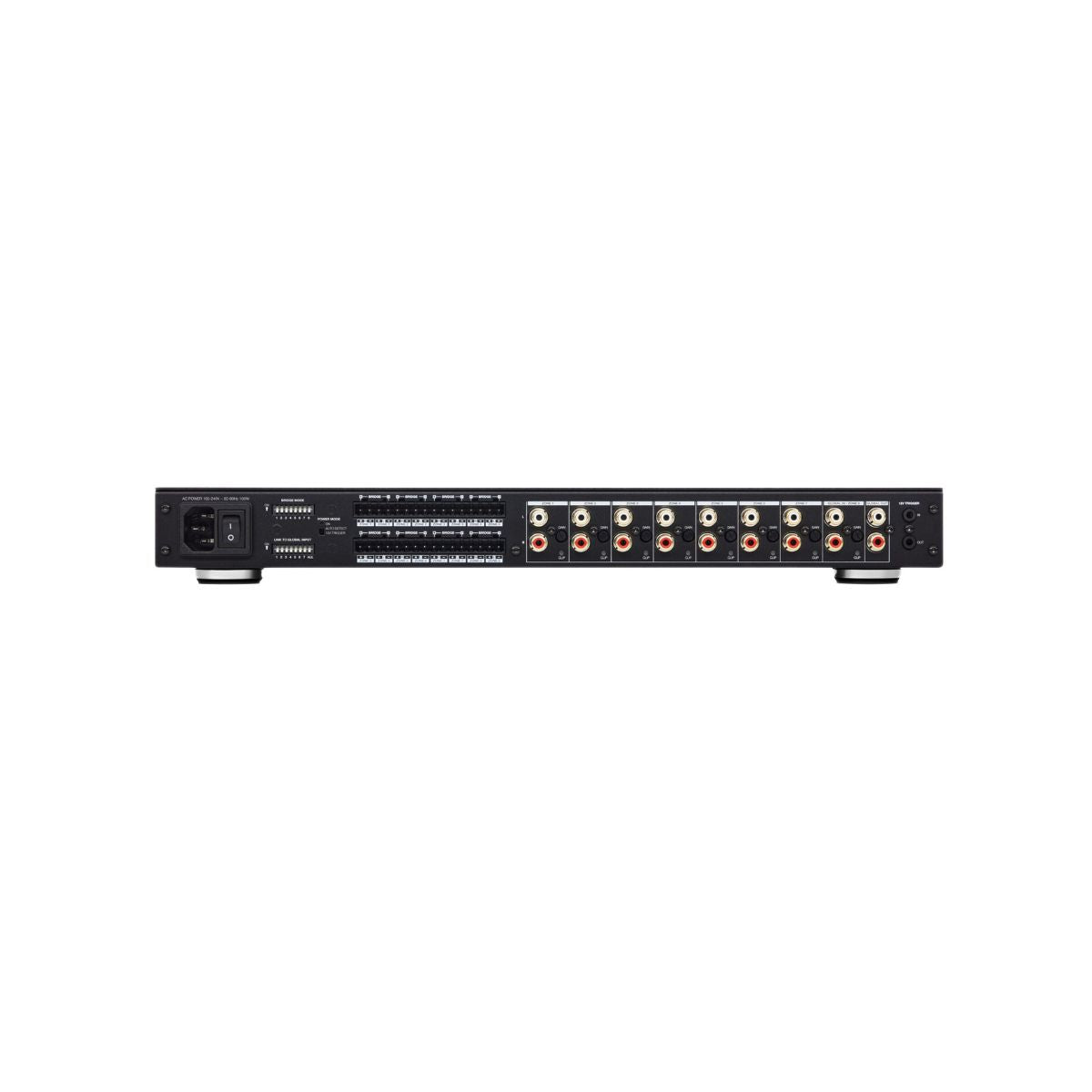

| Rear panel | 8 x 2-position DIP switches (link to global input) 1 x 3-position switch (power mode: on, auto detect, 12V trigger) 8 x input gain control with Clip indicator LEDs |
| Input | 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8) |
| Output | 1 x RCA (pair) Phono socket (global out) 8 x 5.08mm Pitch 4-way Phoenix Combicon style |
| 12V trigger control | 1 x 3.5 mm jack - 12V trigger IN 1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through) |
| Power consumption | <0.5W All zones inactive <45W All zones idling |
| AC supply | 100-240V 50/60Hz |
| AC inlet | IEC C14, switched |
| Thermal dissipation | 1.7 BTU/hr (standby) 150 BTU/hr (Idle) 400 BTU/hr (max) |
| Height | 44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet] |
| Width | 437 mm (17.2in) |
| Depth | 310 mm (12.2in) |
| Net weight | 4.5kg (9.9lb) |
| Finish | Black |
