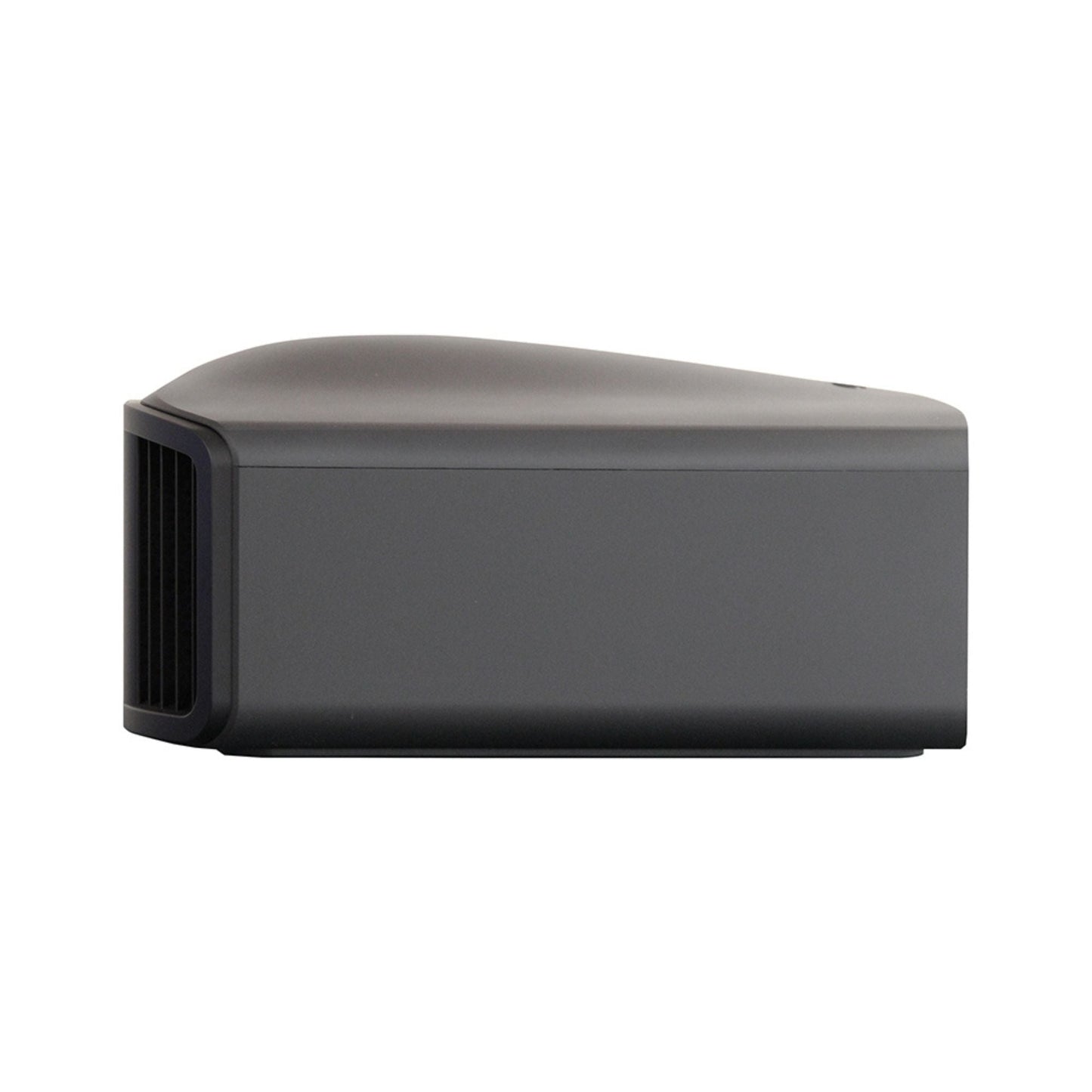

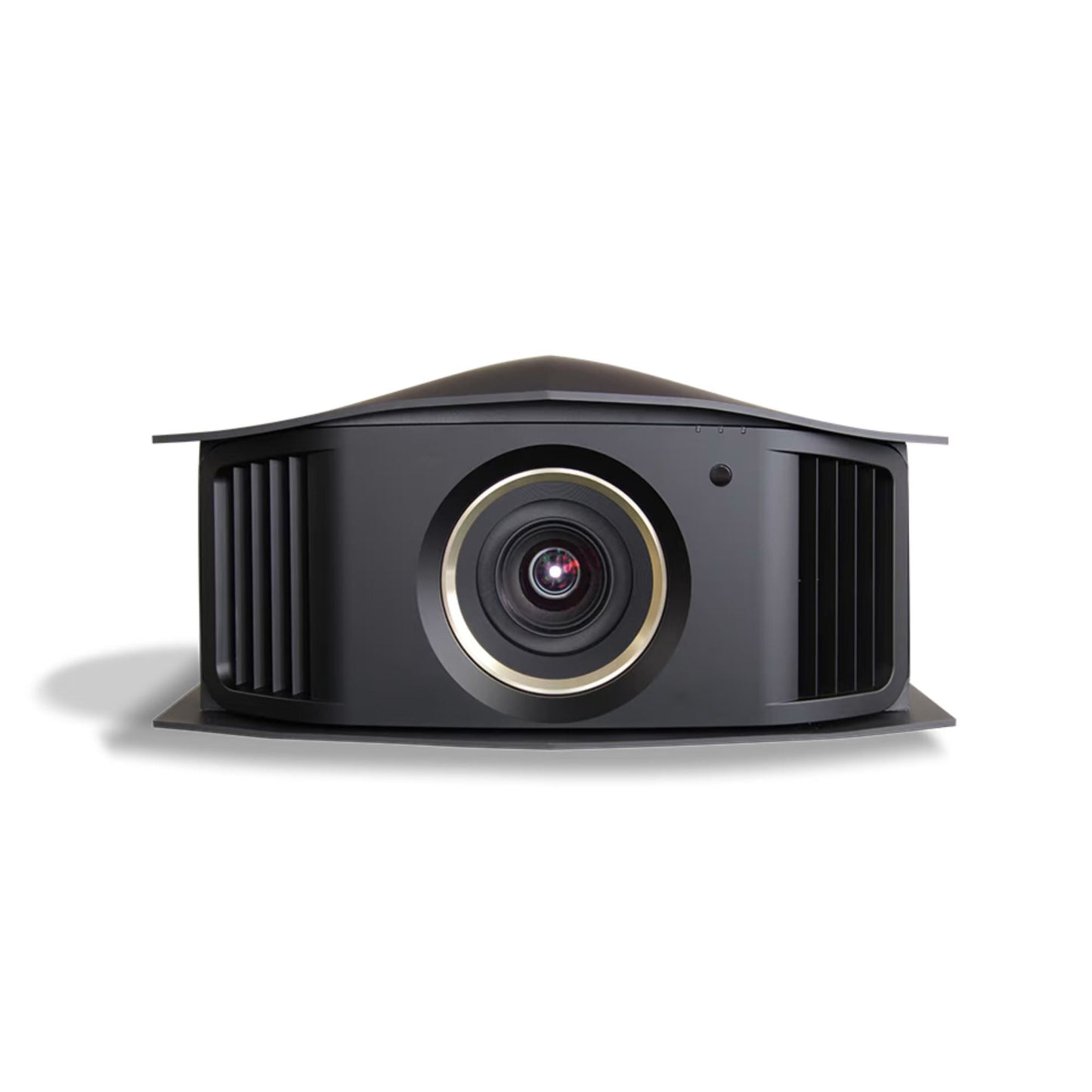

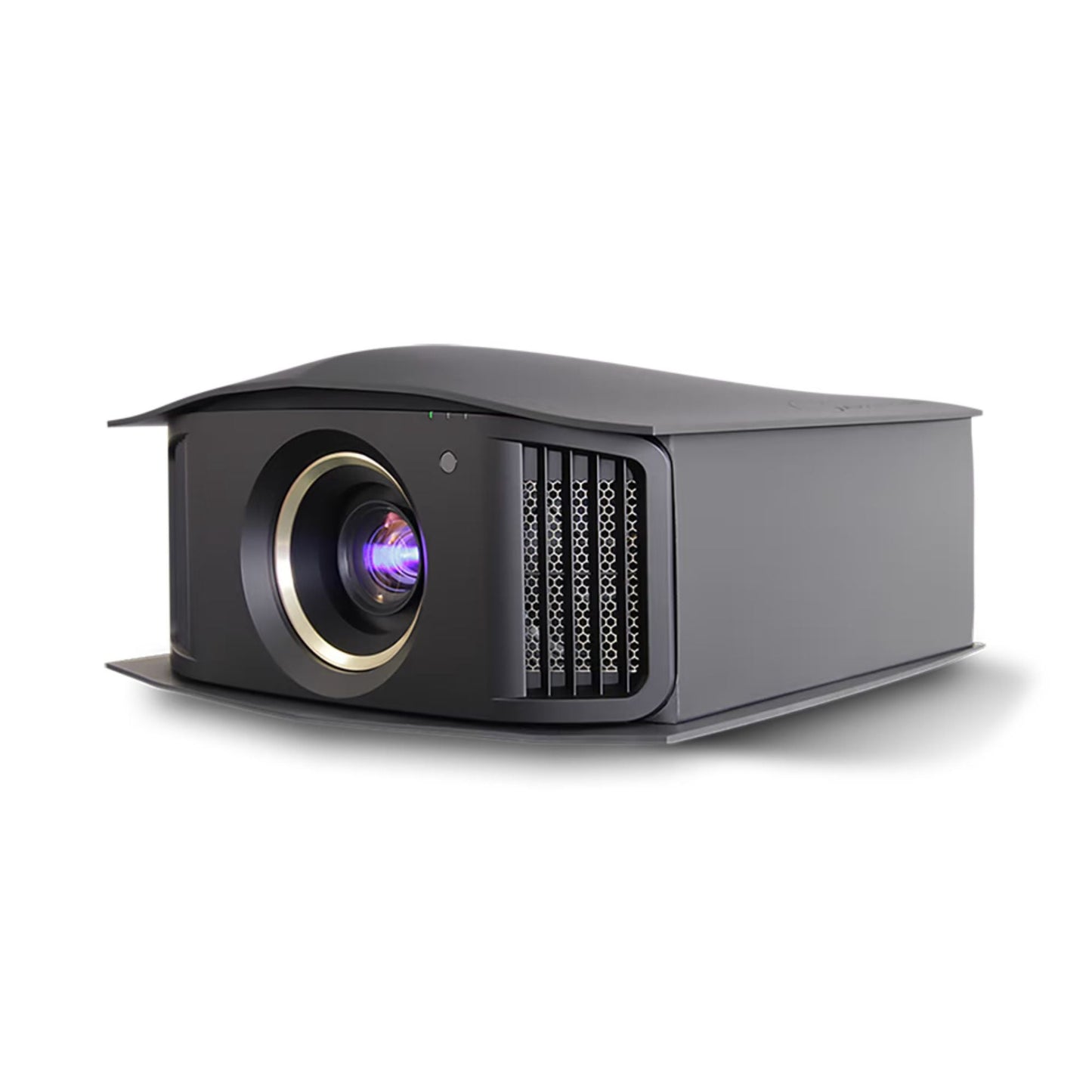

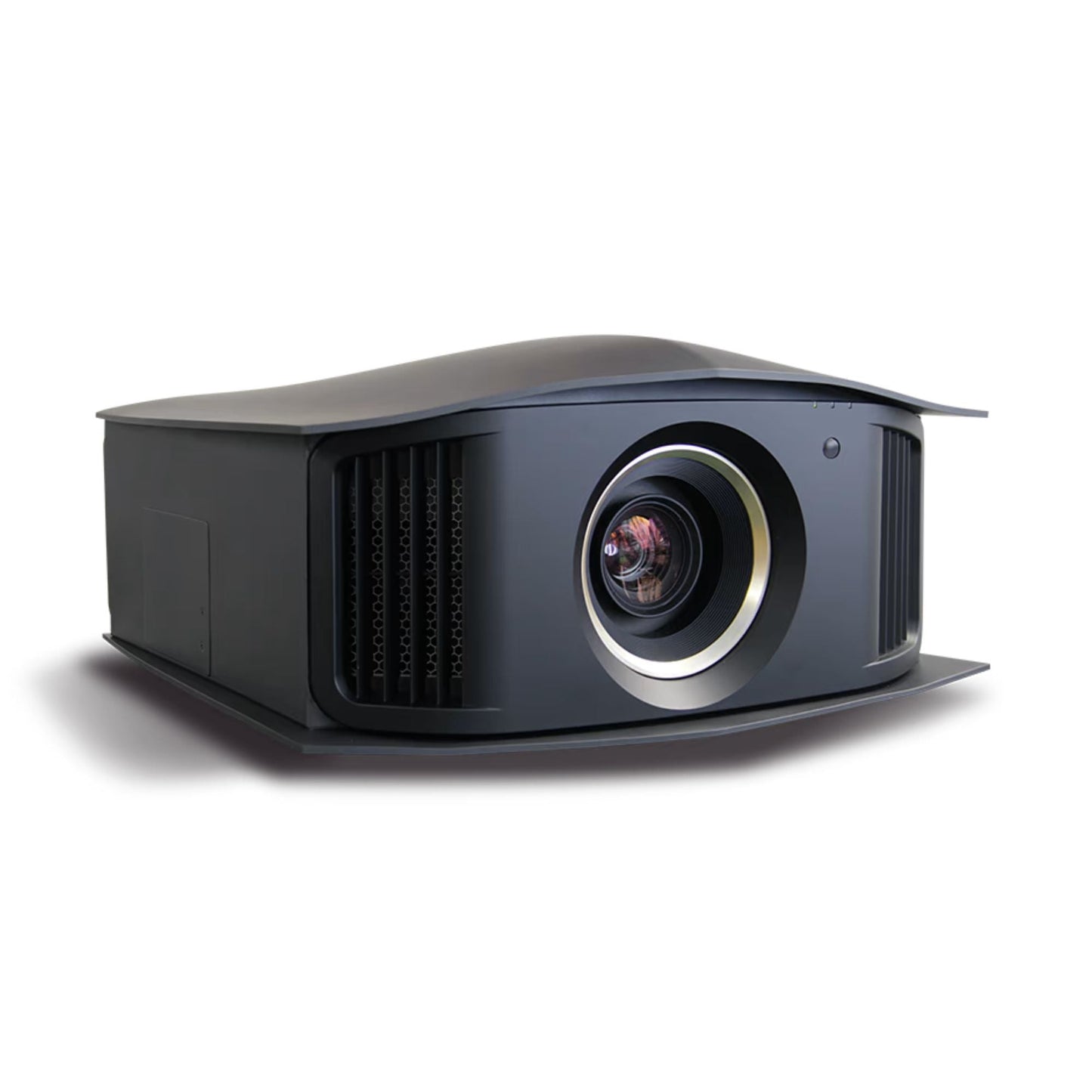

Cineversum Blackwing 1 Laser - 4K Home Cinema Projector
Cineversum Blackwing 1 Laser - 4K Home Cinema Projector
Feature
- Bright light output
- High Dynamic Range pictures
- Have Low Latency Mode
- 1080p Full-HD and produces the sharpest picture
- Have a large zoom range and precise light output control
The Blackwing Series MK2022 have a bright light output for their category. This brightness will accommodate bigger and brighter screens, and High Dynamic Range pictures.
The “Low Latency Mode” enables a thrilling Gaming, Virtual Reality and even Simulation experiences on very large screens.
4K, the Ultra High Definition is now available. This new format is 4 times the definition of that of 1080p Full-HD and produces the sharpest picture ever available, even at the cinema.
The 400Hz mode, featuring an extrapolating algorithm to calculate with extreme precision intermediate frames. Movies has never pop out so much before. Enjoy live events and TV shows with a true-to-life representation!
The Blackwing MK2022 have a large zoom range and precise light output control, that will help accommodating any screen sizes from 60″ to 200″ diagonal (1m30 to 4m40 wide).
SPECIFICATIONS
|
Model Version |
BlackWing 1-L MK2022 |
|
Standard P/N |
R9202201 |
|
Panel Resolution |
3 x 4 096 x 2 160 (4K Resolution) |
|
Light Engine Technology |
3 x LCoS 0.69” 2nd generation 4K panels |
|
Display Resolution |
8 192 x 4 320 (8K Resolution with UHD Interpolation) |
|
Signal Compatibility |
UHD Blu-ray disks up to 8K60p / 4K120p HDR 10+ content with 2 dynamic tone mappings and Frame Adapt HDR HLG (Hybrid Log Gamma) for broadcasting and streaming services High Frame Rate and Low Latency gaming Consoles |
|
Optical Lens |
Standard full-glass 65 mm diameter lens |
|
Throw Ratio (16:9) |
1.44:1 – 2.88:1 motorized 2 x zoom |
|
Screen Size (16:9) |
60” – 200” diagonal |
|
Optical Offset |
Motorized: ± 80% vertical, ± 34% horizontal |
|
Light Source & Lifetime |
Laser Diode – up to 20 000 hours or 20 years (no replacement needed) |
|
Brightness after calibration (Ansi lumens) |
2 200 |
|
Native Contrast Ratio |
40 000:1 |
|
Dynamic Contrast Ratio |
INFINITY:1 |
|
Lens Positions |
10 Installation Memories |
|
Noise Level |
Less than 22 dB (when set to low power mode) |
|
Inputs |
1x HDMI 2.1 input with HDCP 2.3 (48 Gbps transmission band] |
|
Expert Calibration Menu |
YES (for calibration expert only) |
|
Picture Modes |
4 Presets + Film + 6 Users + 2 for Installation Experts only |
|
Color Space Profiles |
9 Presets + 6 Customs |
|
Video Processing |
HDR10+ Auto-Tone mapping HDR Picture modes with Perceptual Quantization (PQ) EOTF and Hybrid Log gamma HDR colorimetry and MaxCLL / MaxFALL meta-data auto-detect Low Latency/Game mode @120Hz for real time simulation and gaming experiences Blur Reduction, 400 Hz Crystal Motion® Theater Optimizer Function |
|
E-Shift |
UHD 8K Interpolation (8192 x 4320) |
|
Color Modes |
REC.709, DCI-P3, BT.2020 |
|
Power Voltage and Consumption |
AC 110~240V 50/60Hz 420 W 0.3 W in Eco Mode standby 1.5 W with LAN |
|
Home Automation Control |
RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA) |
|
Active 3D Glasses |
RF Active Shutter 3D glasses (P/N R1048223) with RF 3D Dongle (P/N R1048229) |
|
Ceiling Mount Kit |
Fixed (P/N R9852068) – Motorized 1 meter Lift (P/N M9201400) – Motorized 2 Meters Lift (P/N M9201404) |
|
Other Options |
Static Anamorphic Lens Kit, Special colors and finishes on demand, Passive 3D glasses. |
|
Dimensions (W x H x D) |
50 x 26 x 50,5 cm (19.7” x 10.1” x 19.9”) |
|
Box Dimensions (L x W x H) |
66 x 65 x 44 cm – 32 kg (70.5 lbs) |
|
Weight |
26 kg (57.3 lbs |
