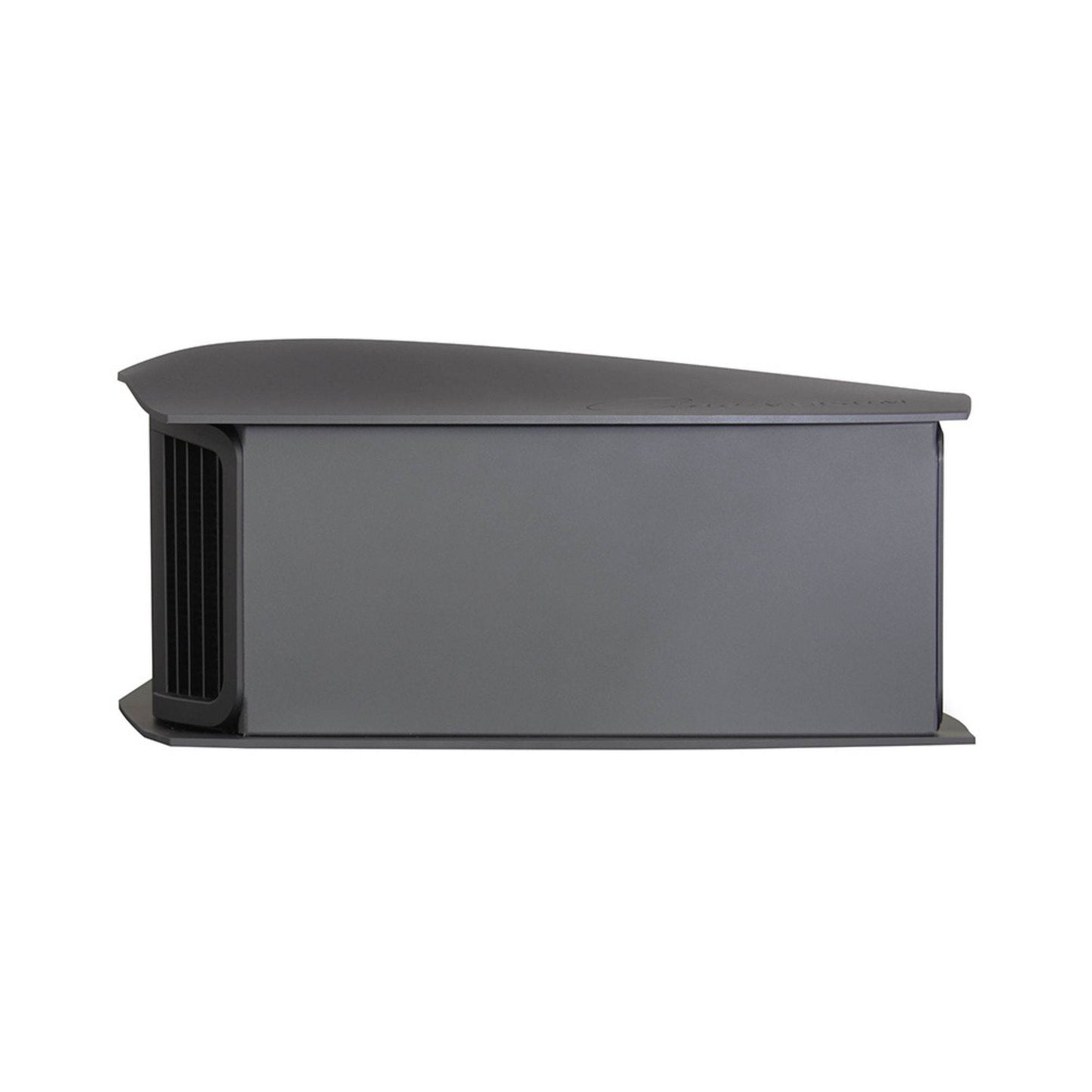

Cineversum Blackwing 2 Laser - 4K Home Cinema Projector
Cineversum Blackwing 2 Laser - 4K Home Cinema Projector
Features
- 4K display panels
- 1080p Full-HD and produces sharper pictures
- brighter light output allows bigger, brighter screens
- Have “Low Latency Mode”
- Have exclusive optical filters
- Have aluminum and ABS plastic to further increase the exhaust heat
The Blackwing MK2022 is equipped with native 4K display panels. This resolution is 4 times the definition of that of 1080p Full-HD and produces sharper pictures, even sharper than the 4K-Interpolation pictures.
The Blackwing Series MK2022 have a bright light output for their category. A brighter light output allows bigger, brighter screens and High Dynamic Range pictures.
The “Low Latency Mode” enables a thrilling Gaming, Virtual Reality and even Simulation experiences on very large screens.
The Blackwing Two and Elite models have exclusive optical filters that extends their color gamut beyond DCI-P3 standard making them the best choice for BT.2020 color reproduction.
The 400Hz mode, featuring an extra-polating algorithm to calculate with extreme precision the double or triple frame rate interpolation. Movies has never pop out so much before. Enjoy live events and TV shows with a true-to-life!
The chassis allies aluminum and ABS plastic to further increase the exhaust heat efficiency and obtain even more silent operation.
The Blackwing MK2022 have a large zoom range and precise light output control, that will help accommodating any screen sizes from 60″ to 200″ diagonal (1m30 to 4m40 wide).
SPECIFICATIONS
|
Model Version |
BlackWing 2-L MK2022 |
|
Standard P/N |
R9202202 |
|
Panel Resolution |
3 x 4 096 x 2 160 (4K Resolution) |
|
Light Engine Technology |
3 x LCoS 0.69” 2nd generation 4K panels with Ultra-High Contrast Optics |
|
Display Resolution |
8 192 x 4 320 (8K Resolution with UHD X Interpolation) |
|
Signal Compatibility |
UHD Blu-ray disks up to 8K60p / 4K120p HDR 10+ content with 2 dynamic tone mappings and Frame Adapt HDR HLG (Hybrid Log Gamma) for broadcasting and streaming services High Frame Rate and Low Latency gaming Consoles |
|
Optical Lens |
Standard full-glass 65 mm diameter lens |
|
Throw Ratio (16:9) |
1.44:1 – 2.88:1 motorized 2 x zoom |
|
Screen Size (16:9) |
60” – 200” diagonal |
|
Optical Offset |
Motorized: ± 80% vertical, ± 34% horizontal |
|
Light Source & Lifetime |
Laser Diode – up to 20 000 hours or 20 years (no replacement needed) |
|
Brightness after calibration (Ansi lumens) |
2 500 |
|
Native Contrast Ratio |
80 000:1 |
|
Dynamic Contrast Ratio |
INFINITY:1 |
|
Lens Positions |
10 Installation Memories |
|
Noise Level |
Less than 22 dB (when set to low power mode) |
|
Inputs |
1x HDMI 2.1 input with HDCP 2.3 (48 Gbps transmission band] |
|
Expert Calibration Menu |
YES (for calibration expert only) |
|
Picture Modes |
4 Presets + Film + 6 Users + 2 for Installation Experts only |
|
Color Space Profiles |
9 Presets + 6 Customs |
|
Video Processing |
HDR10+ Auto-Tone mapping HDR Picture modes with Perceptual Quantization (PQ) EOTF and Hybrid Log gamma HDR colorimetry and MaxCLL / MaxFALL meta-data auto-detect Low Latency/Game mode @120Hz for real time simulation and gaming experiences Blur Reduction, 400 Hz Crystal Motion® Theater Optimizer Function DCI-P3 and BT.2020 74% Color Profiles |
|
E-Shift |
UHD-X 4-way 8K Interpolation (8192 x 4320) |
|
Color Modes |
REC.709, wide gamut, DCI-P3, BT.2020 74% |
|
Power Voltage and Consumption |
AC 110~240V 50/60Hz 440 W 0.3 W in Eco Mode standby 1.5W with LAN |
|
Home Automation Control |
RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA) |
|
Active 3D Glasses |
RF Active Shutter 3D glasses (P/N R1048223) with RF 3D Dongle (P/N R1048229) |
|
Ceiling Mount Kit |
Fixed (P/N R9852068) – Motorized 1 meter Lift (P/N M9201400) – Motorized 2 Meters Lift (P/N M9201404) |
|
Other Options |
Static Anamorphic Lens Kit, Special colors and finishes on demand, Passive 3D glasses. |
|
Dimensions (W x H x D) |
50 x 26 x 50,5 cm (19.7” x 10.1” x 19.9”) |
|
Box Dimensions (L x W x H) |
66 x 65 x 44 cm |
|
Weight |
26 kg (57.3 lbs |
|
Packing Weight |
32 kg (70.5 lbs) |
