Cineversum Blackwing Elite Laser - 4K Home Cinema Projector

Features

Equipped with native 4K display panels
1080p Full-HD
Have premium optical lens and brighter light output
Have “Low Latency Mode”
Elite models have exclusive optical filters
Aluminum and ABS plastic to further increase the exhaust heat

The Blackwing MK2022 is equipped with native 4K display panels. This resolution is 4 times the definition of that of 1080p Full-HD and produces sharper pictures, even sharper than the 4K-Interpolation pictures.

The Blackwing Elite MK2022 is capable of displaying up to 8K pixels using E-shift interpolation. This is 16 times the definition of that of 1080p Full-HD and 4 times sharper than Ultra High Definition.

The Blackwing Series MK2022 have a bright light output for their category. The Elite model has the brightest output allowing bigger, brighter screens and High Dynamic Range pictures.

The “Low Latency Mode” enables a thrilling Gaming, Virtual Reality and even Simulation experiences on very large screens.

The Blackwing Two and Elite models have exclusive optical filters that extends their color gamut beyond DCI-P3 standard making them the best choice for BT.2020 color reproduction.

The chassis allies aluminum and ABS plastic to further increase the exhaust heat efficiency and obtain even more silent operation.

The Blackwing Elite MK2022 have a larger screen range thanks to its premium optical lens and brighter light output. The Elite models can accommodate any screen sizes from 60″ to 280″ diagonal (1m30 to 6m20 wide).

SPECIFICATIONS

Model Version	BlackWing Elite-L MK2022
Standard P/N	R9202203
Panel Resolution	3 x 4 096 x 2 160 (4K Resolution)
Light Engine Technology	3 x LCoS 0.69” 2nd generation 4K panels with Ultra-High Contrast Optics
Display Resolution	8 192 x 4 320 (8K Resolution with UHD X Interpolation)
Signal Compatibility	UHD Blu-ray disks up to 8K60p / 4K120p HDR 10+ content with 2 dynamic tone mappings and Frame Adapt HDR HLG (Hybrid Log Gamma) for broadcasting and streaming services High Frame Rate and Low Latency gaming Consoles
Optical Lens	Premium 100 mm diameter lens with Low Dispersion elements, 8K optimized
Throw Ratio (16:9)	1.37:1 – 2.74:1 motorized 2 x zoom
Screen Size (16:9)	60” – 300” diagonal
Optical Offset	Motorized: ± 100% vertical, ± 43% horizontal
Light Source & Lifetime	Laser Diode – up to 20 000 hours or 20 years (no replacement needed)
Brightness after calibration (Ansi lumens)	3 000
Native Contrast Ratio	100 000:1
Dynamic Contrast Ratio	INFINITY:1
Lens Positions	10 Installation Memories
Noise Level	Less than 22 dB (when set to low power mode)

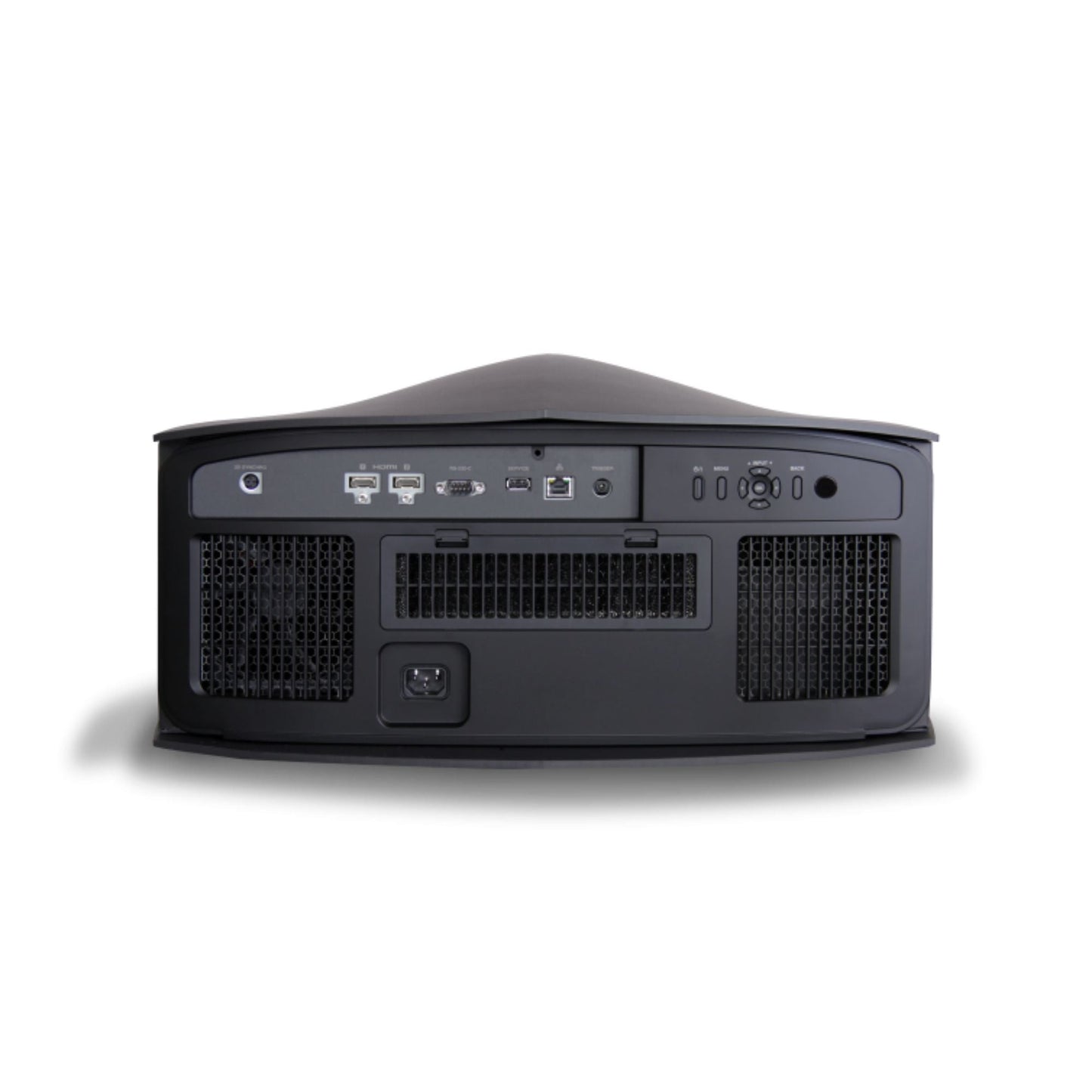

Inputs	2x HDMI 2.1 input with HDCP 2.3 (48 Gbps transmission band]
Expert Calibration Menu	YES (for calibration expert only)
Picture Modes	4 Presets + Film + 6 Users + 4 for Installation Experts only
Color Space Profiles	10 Presets + 6 Customs
Video Processing	HDR10+ Auto-Tone mapping HDR Picture modes with Perceptual Quantization (PQ) EOTF and Hybrid Log gamma HDR colorimetry and MaxCLL / MaxFALL meta-data auto-detect Low Latency/Game mode @120Hz for real time simulation and gaming experiences Blur Reduction, 400 Hz Crystal Motion® Theater Optimizer Function DCI-P3 and BT.2020 74% Color Profiles
E-Shift	UHD-X 4-way 8K Interpolation (8192 x 4320)
Color Modes	REC.709, wide gamut, DCI-P3, BT.2020 74%
Power Voltage and Consumption	AC 110~240V 50/60Hz 440 W 0.3 W in Eco Mode standby 1.5W with LAN
Home Automation Control	RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA)
Active 3D Glasses	RF Active Shutter 3D glasses (P/N R1048223) with RF 3D Dongle (P/N R1048229)
Ceiling Mount Kit	Fixed (P/N R9852068) – Motorized 1 meter Lift (P/N M9201400) – Motorized 2 Meters Lift (P/N M9201404)
Other Options	Static Anamorphic Lens Kit, Special colors and finishes on demand, Passive 3D glasses.
Dimensions (W x H x D)	50 x 26 x 53 cm (19.7” x 10.1” x 20.9”)
Box Dimensions (L x W x H)	66 x 65 x 44 cm
Weight	28 kg (61.7 lbs)
Packning Weight	32 kg (70.5 lbs)
