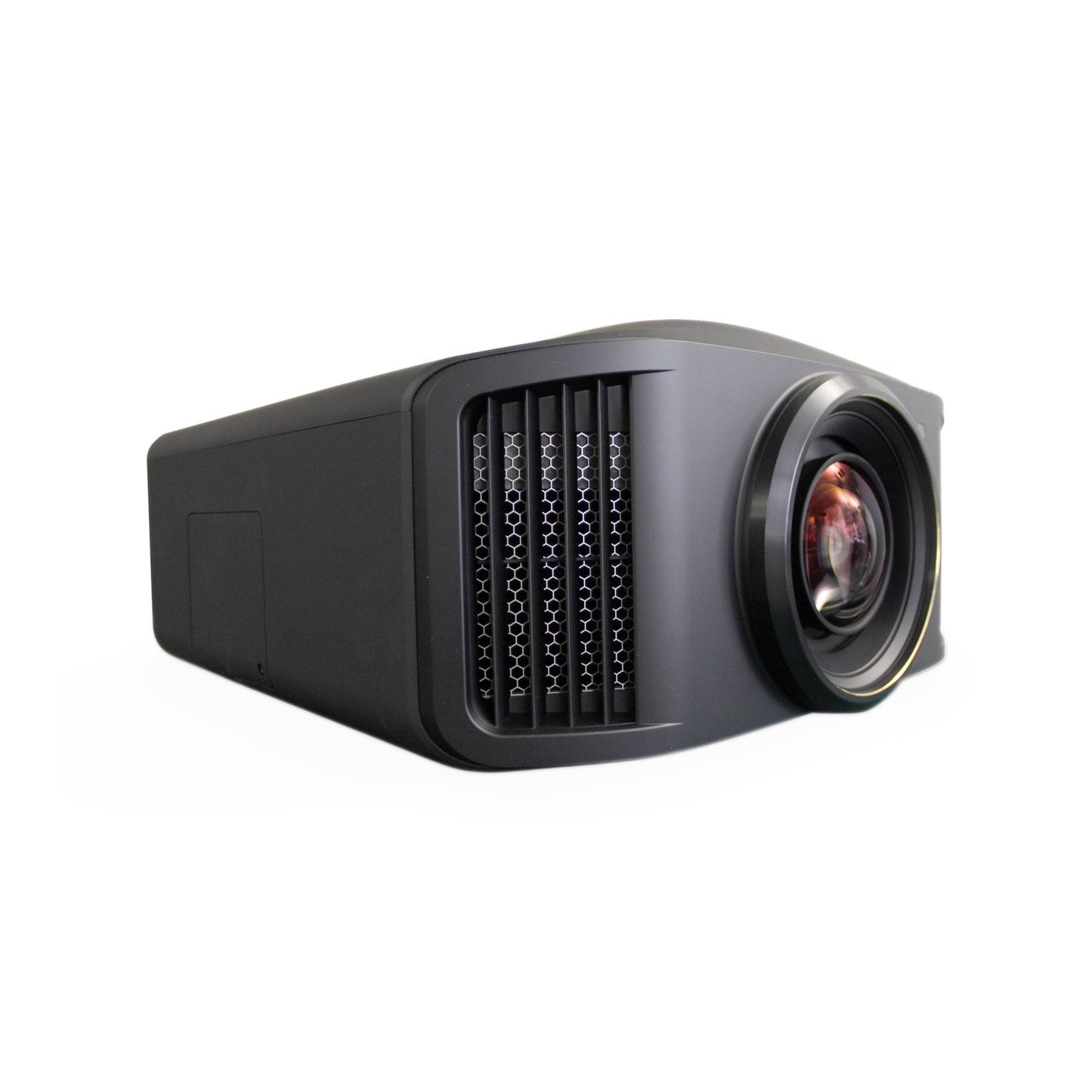

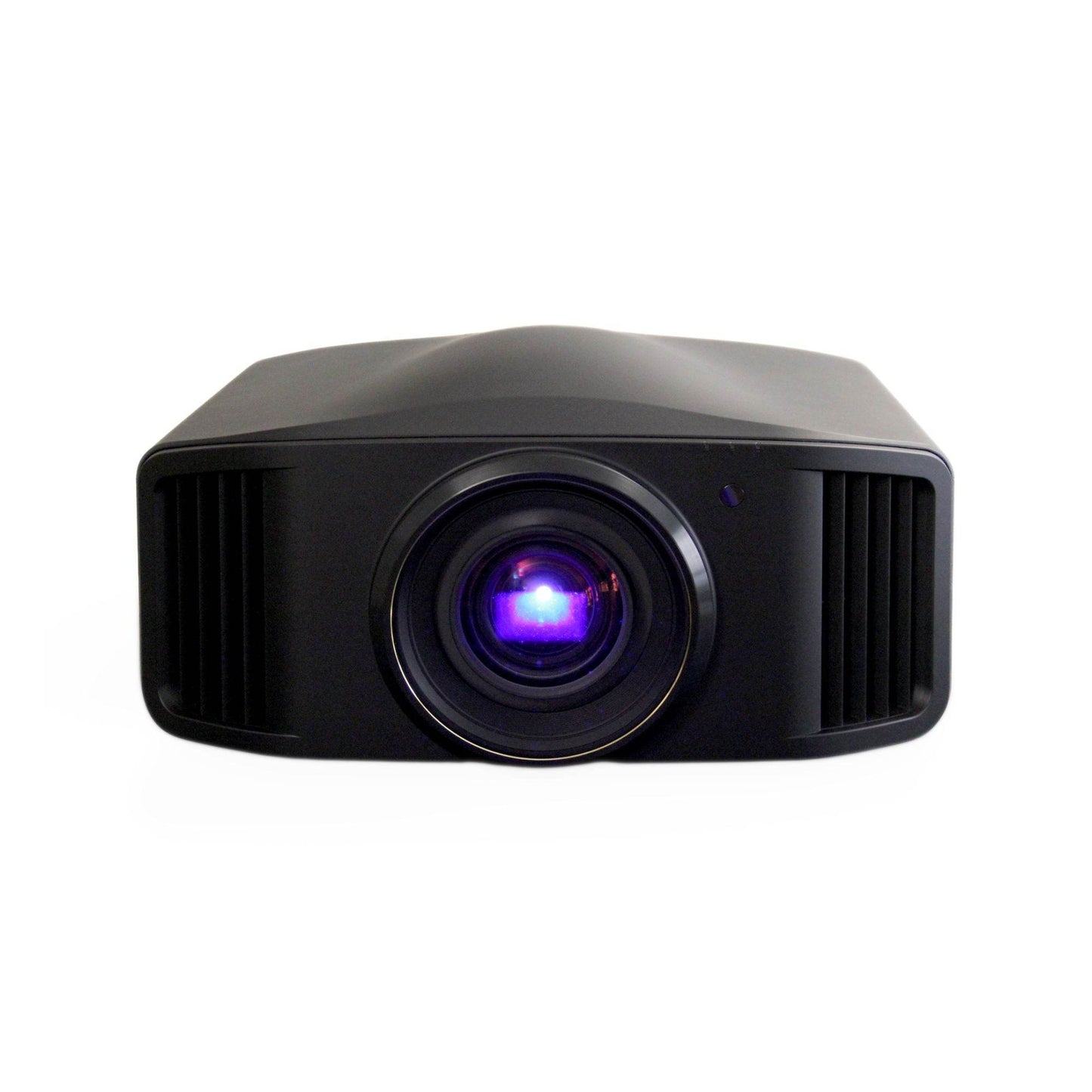

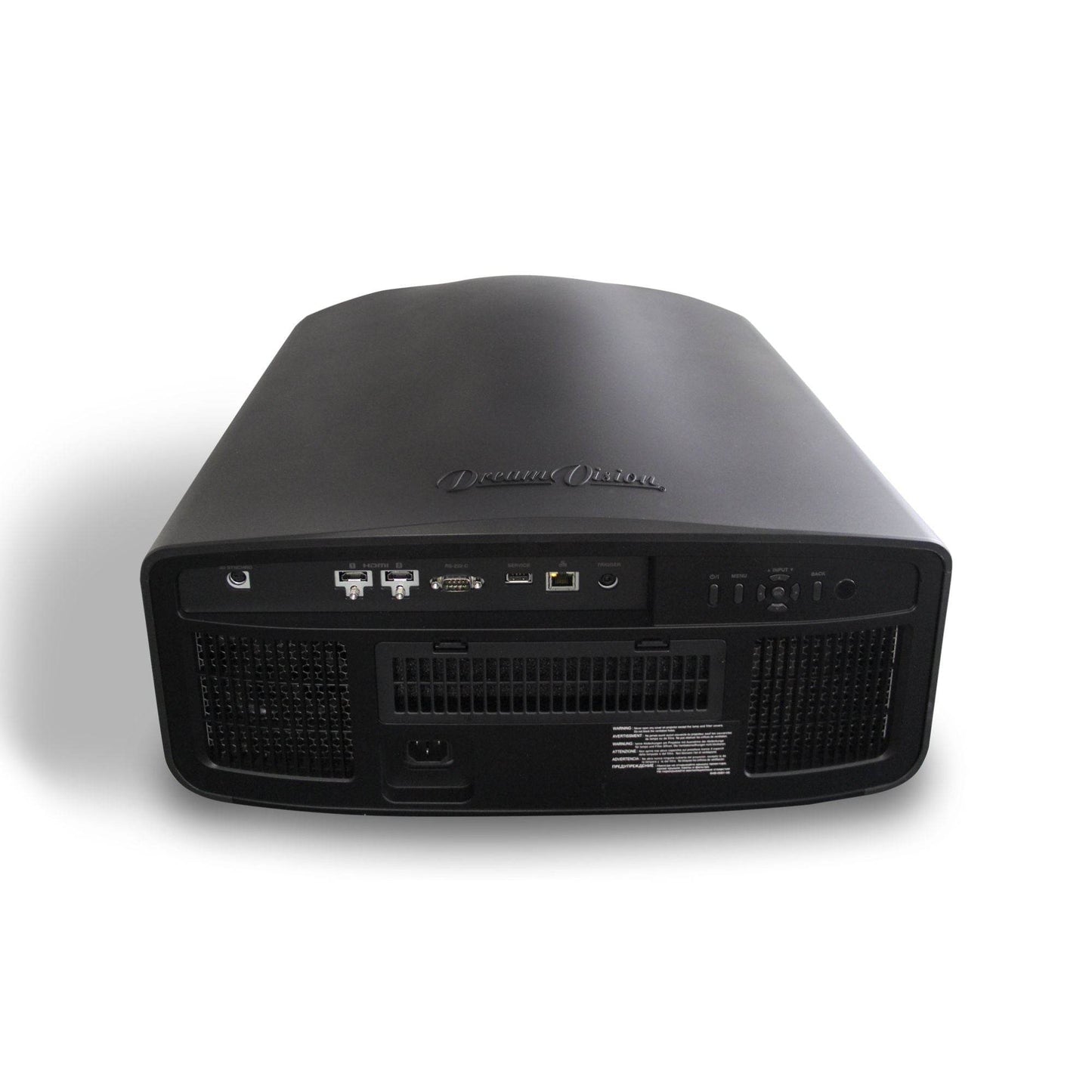

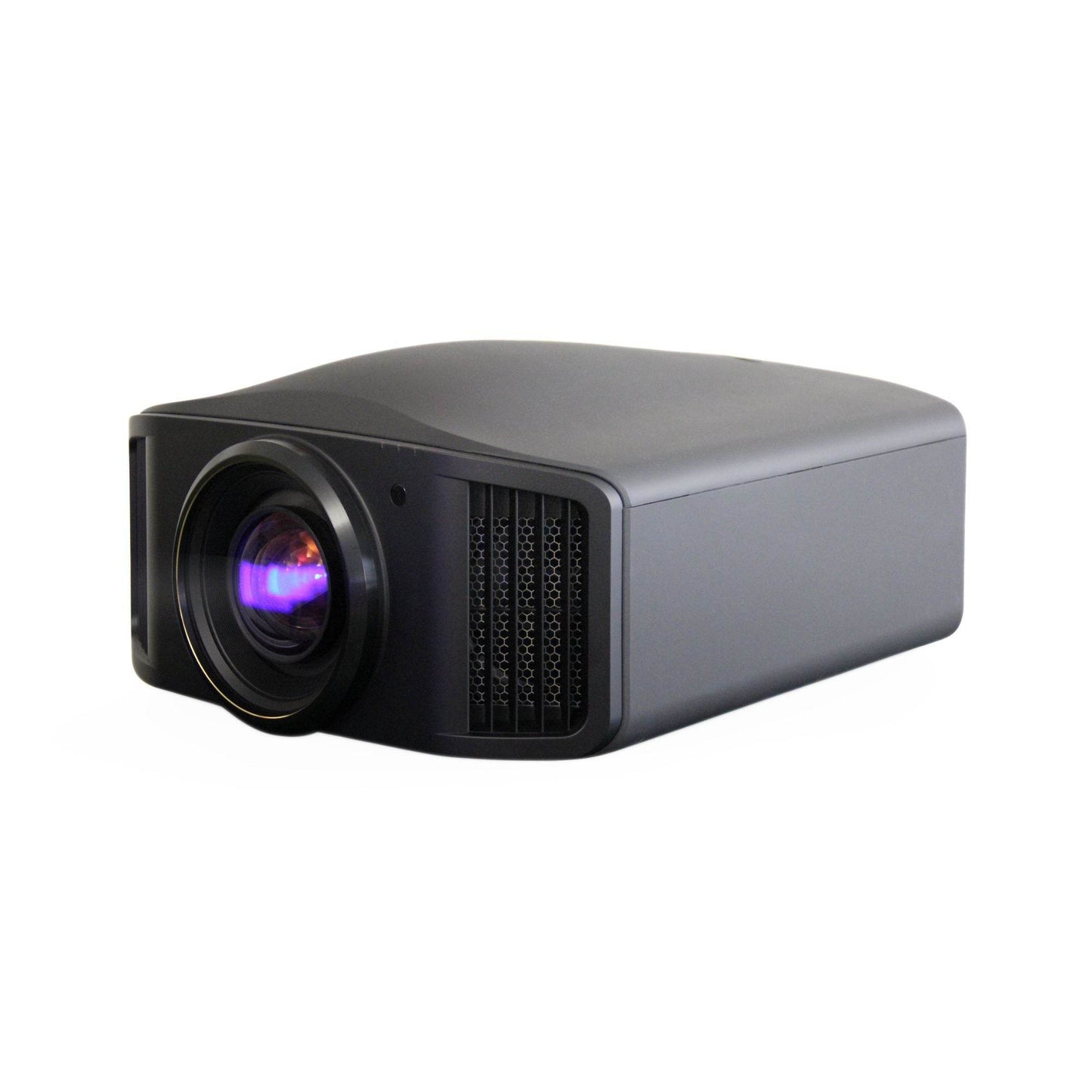

Dream Vision Eos Signature L - 8K Home Theater Projector
Dream Vision Eos Signature L - 8K Home Theater Projector
Key Feature
- Infinite Black dynamic contrast
- Color modes - REC.709, wide gamut (Cinema filter), DCI-P3 and BT.2020
- BLUEScent laser diode - up to 20,000 hours or 20 years (no replacement needed)
- 3-chip LCOS 0.69" panels with ultra- high contrast optics
- High quality, 8K optimized, 100 mm diameter lens with low dispersion elements
Since 1996, DreamVision, in the shadow of the world-famous Montmartre hill in Paris, has been developing and refining the latest advancements in digital display technology in order to provide state-of-the-art video products for Home Cinema. This new projector’s chassis was created by the famed French designer, Antoine Béon.
Dedicated to sharp pictures and precision, the DreamVision Eos projector Series comes with a Low Latency mode that drastically reduces the motion blur and enhances the thrill when playing video games or viewing virtual reality shows and simulations. The Low Latency mode is seconded by the Crystal Motion algorithm which is a frame interpolation method that brings an immersive experience to sports, concerts, or TV shows. In addition to the HDR10 format used in UHD Blu-ray and streaming, as well as the Hybrid Log Gamma format used in broadcasting, the Eos Series now supports the high-level picture quality HDR10+ format with two dynamic tone mappings and Frame Adapt HDR. This, coupled with the Laser technology, allows the Eos Series to achieve the optimum contrast, even at high frame rates, bringing a truer to life picture to your screen.
SPECIFICATIONS
|
Model |
EOS Signature-L |
|
Standard Pack |
R9202203 |
|
Panel Resolution |
3 x 4 096 x 2 160 (4K Resolution) |
|
Panel Technology |
3-chip LCOS 0.69” panels with Ultra-High Contrast Optics |
|
Display Resolution |
8 192 x 4 320 (8K with UHD Interpolation) |
|
Signal Compatibility |
|
|
Optic |
High-Quality, 8K-optimized, 100 mm diameter Lens with Low Dispersion elements (2x Zoom) |
|
Throw Ratio (16:9) |
Motorized zoom: 1.37:1 – 2.74:1 |
|
Screen Offset (16:9) |
Motorized lens shift: ±100% vertically ±43% horizontally |
|
Screen Size |
60” – 300” diagonal |
|
Lamp Consumption |
BLUEScent Laser Diode – up to 20 000 hours or 20 years (no replacement needed) |
|
Brightness |
3 000 Lumens |
|
Native Contrast Ratio |
100 000:1 |
|
Dynamic Contrast Ratio |
Infinity:1 |
|
Color Modes |
REC.709, wide gamut, DCI-P3 and BT.2020 |
|
Expert Calibration |
Yes (for calibration expert only) |
|
Picture Modes |
4 Presets + Film + 6 Users + 4 Installation Expert only |
|
Color Space Profiles |
10 Presets + 6 Customs |
|
Noise Level |
Less than 22 dB (in low mode) |
|
Inputs |
|
|
Home-cinema Video Processing |
|
|
3D Compatibility |
Frame Packing, Side-by-Side, Top & Bottom |
|
Home Automation Control |
RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA) |
|
Power and Consumption |
AC 110~240V 50/60Hz 440 W 0.3W in Standby Eco-Mode 1.5W with LAN |
|
Dimensions (WxHxD) |
50 x 26 x 53 cm (19.7” x 10.1” x 20.9”) |
|
Box dimensions (LxWxH) |
66 x 65 x 44 cm – 30 kg (66.1 lbs) |
|
Weight |
28 kg (61.7 lbs) |
|
3D options |
RF Active Shutter 3D glasses (R1048223) RF 3D Dongle (R1048229) |
|
Ceiling Mounts |
Fixed Position (R9852068) Motorized 1 meter Lift (M9201400) Motorized 2 meters Lift (M9201404) |
|
Other options |
Cinemascope Lens, special colors and finishes on demand or RAL, Passive 3D Glasses. |
