Dream Vision

DreamVision Eos 2-L 3000 Lumen Laser Video Projector

Key Feature

Infinite Black Dynamic contrast
Color modes - REC.709, wide gamut (Cinema filter), DCI-P3 and BT.2020
BLUEScent laser diode - up to 20,000 hours or 20 years
3-chip LCOS 0.69" panels with ultra- high contrast optics

Since 1996, DreamVision, in the shadow of the world-famous Montmartre hill in Paris, has been developing and refining the latest advancements in digital display technology in order to provide state-of-the-art video products for Home Cinema. This new projector’s chassis was created by the famed French designer, Antoine Béon.

The DreamVision Eos Series includes a Low Latency mode that drastically reduces the motion blur and enhances the thrill when playing video games or viewing virtual reality shows and simulations. The Low Latency mode is seconded by the Crystal Motion algorithm which is a frame interpolation method that brings an immersive experience to sports, concerts, or TV shows. In addition to the HDR10 format used in UHD Blu-ray and streaming, as well as the Hybrid Log Gamma format used in broadcasting, the Eos Series now supports the high-level picture quality HDR10+ format with two dynamic tone mappings and Frame Adapt HDR. This, coupled with the Laser technology, allows the Eos Series to achieve the optimum contrast, even at high frame rates. The Dream Vision Eos 2-L is also marketed as the Cineversum BlackWing 2-L.

SPECIFICATIONS

Model	Eos 2-L
Standard Pack	R9202202
Panel Resolution	3 x 4 096 x 2 160 (4K Resolution)
Panel Technology	3-chip LCOS 0.69” panels with Ultra-High Contrast Optics
Display Resolution	8 192 x 4 320 (8K with UHD-X Interpolation)
Signal Compatibility	UHD Blu-ray disks up to 8K60p / 4K120p HDR 10+ content with 2 dynamic tone mappings and Frame Adapt HDR HLG (Hybrid Log Gamma) broadcasting and streaming services High Frame Rate and Low Latency gaming Consoles
Optic	Standard Full-glass 65 mm Lens (2x zoom)
Throw Ratio (16:9)	Motorized zoom: 1.44:1 – 2.88:1
Screen Offset (16:9)	Motorized lens shift: ±80% vertically ±34% horizontally
Screen Size	60” – 200” diagonal
Lamp Consumption	BLUEScent Laser Diode – up to 20 000 hours or 20 years (no replacement needed)
Brightness	2 500 Lumens
Native Contrast Ratio	80 000:1
Dynamic Contrast Ratio	Infinity:1
Color Modes	REC.709, wide gamut, DCI-P3 and BT.2020
Expert Calibration	Yes (for calibration expert only)
Picture Modes	4 Presets + Film + 6 Users + 2 Installation Expert only
Color Space Profiles	9 Presets + 6 Customs
Noise Level	Less than 22 dB (in low mode)
Inputs	1x HDMI 2.1 (with HDCP 2.3 and 48 Gbps transmission band) 1x HDMI 2.0b (with HDCP 2.2 and 18 Gbps transmission band)
Home-cinema Video Processing	HDR10+ Auto-Tone mapping EOTF and Hybrid Log gamma HDR Picture modes with Perceptual Quantization (PQ) HDR colorimetry and MaxCLL / MaxFALL meta-data Low Latency/Game mode @120Hz gaming experiences Blur Reduction, 400 Hz Crystal Motion® Theater Optimizer Function DCI-P3 and BT.2020 Color Profiles
3D Compatibility	Frame Packing, Side-by-Side, Top & Bottom

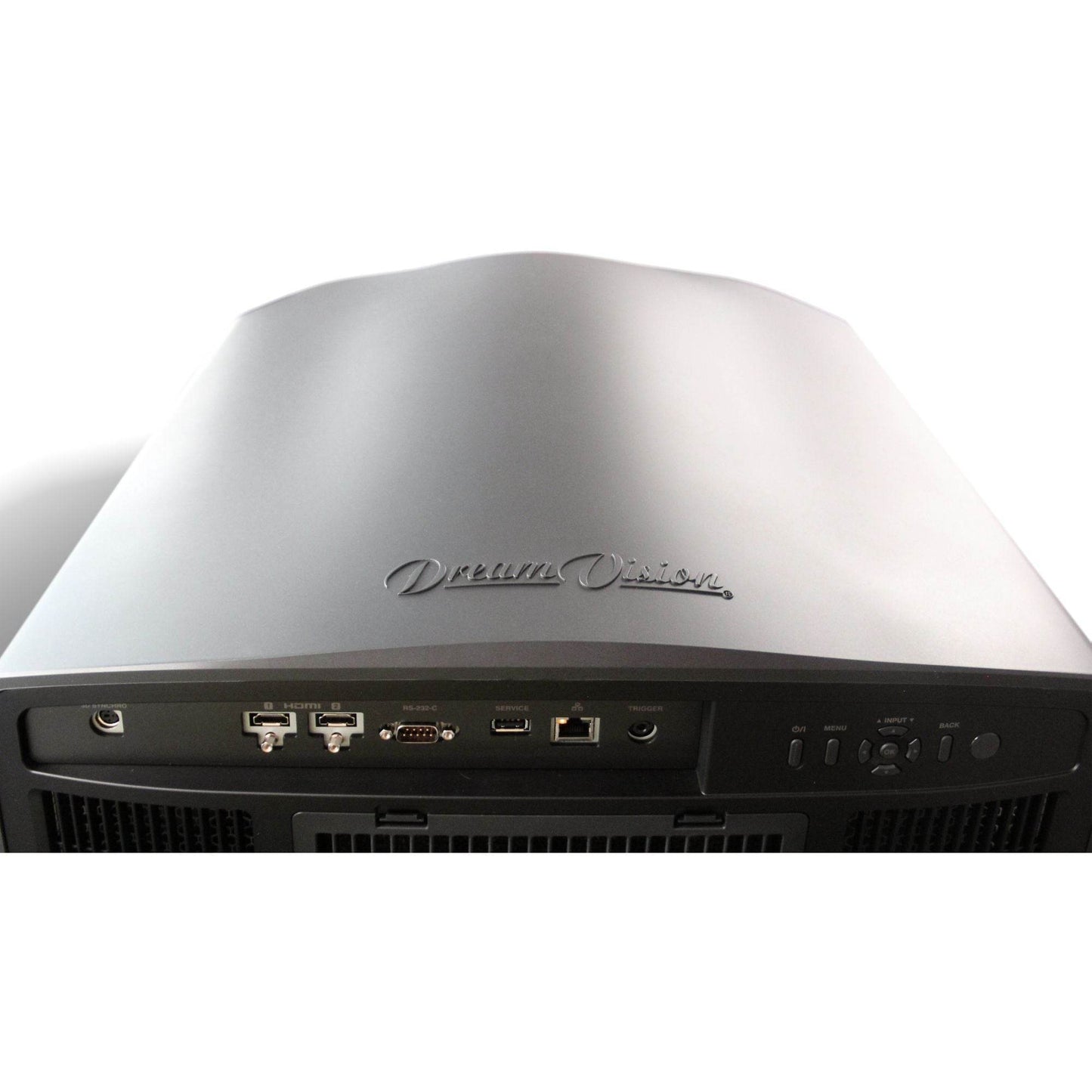

Home Automation Control	RS-232 (Dsub 9) / LAN RJ45 / 12V Trigger (100mA)
Power and Consumption	AC 110~240V 50/60Hz 440 W 0.3W in Standby Eco-Mode 1.5W with LAN
Dimensions (WxHxD)	50 x 26 x 50.5 cm (19.7” x 10.1” x 19.9”)
Box dimensions (LxWxH)	66 x 65 x 44 cm – 30 kg (66.1 lbs)
Weight	26 kg (57.3 lbs)
3D options	RF Active Shutter 3D glasses (R1048223) RF 3D Dongle (R1048229)
Ceiling Mounts	Fixed Position (R9852068) Motorized 1 meter Lift (M9201400) Motorized 2 meters Lift (M9201404)
Other options	Cinemascope Lens, special colors and finishes on demand or RAL, Passive 3D Glasses
