The first Lyngdorf Audio installation speakers

The D-500 and D-5 models bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf Discreet series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.

D stands for discreet

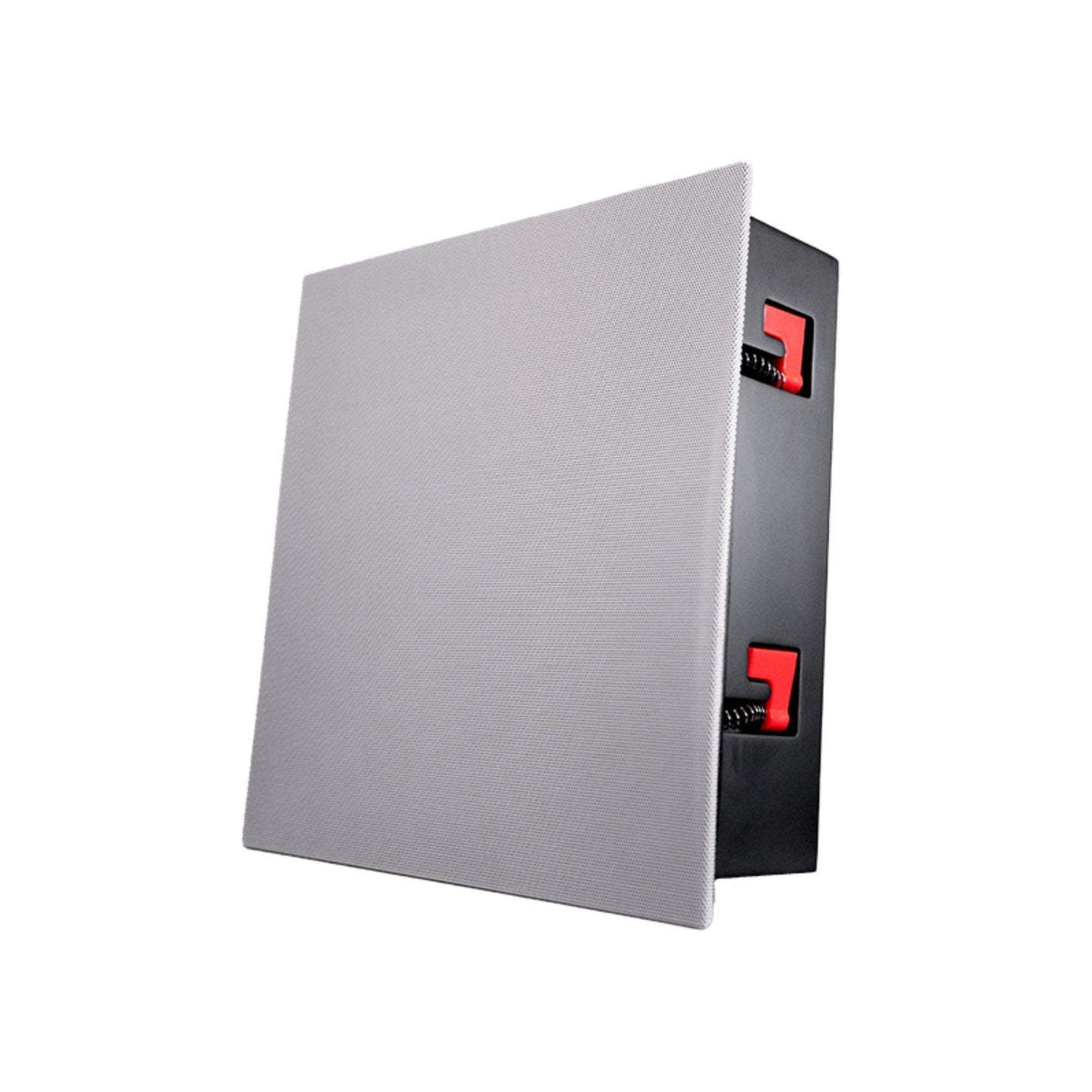

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Unique features

Adjustable tweeter for immersive audio

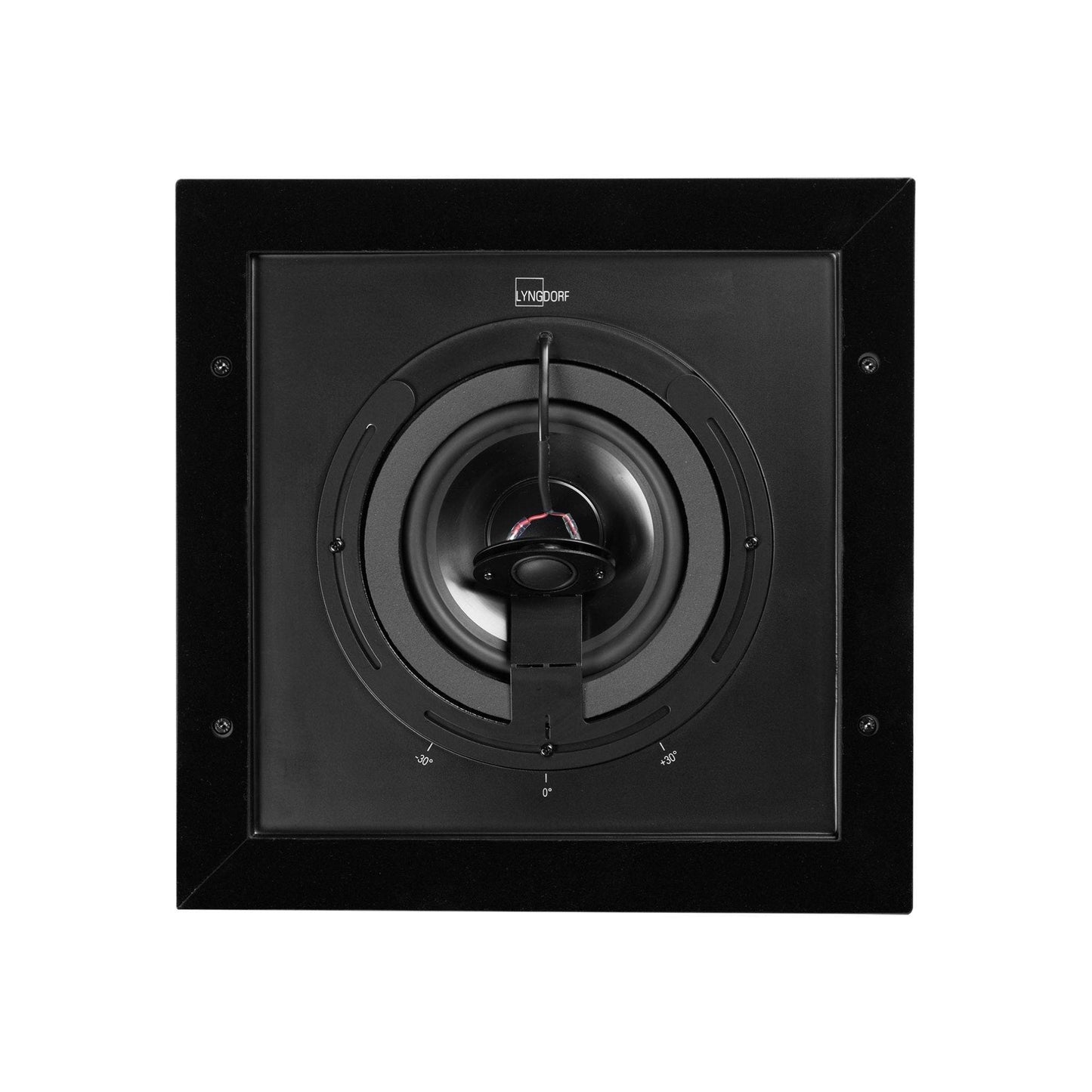

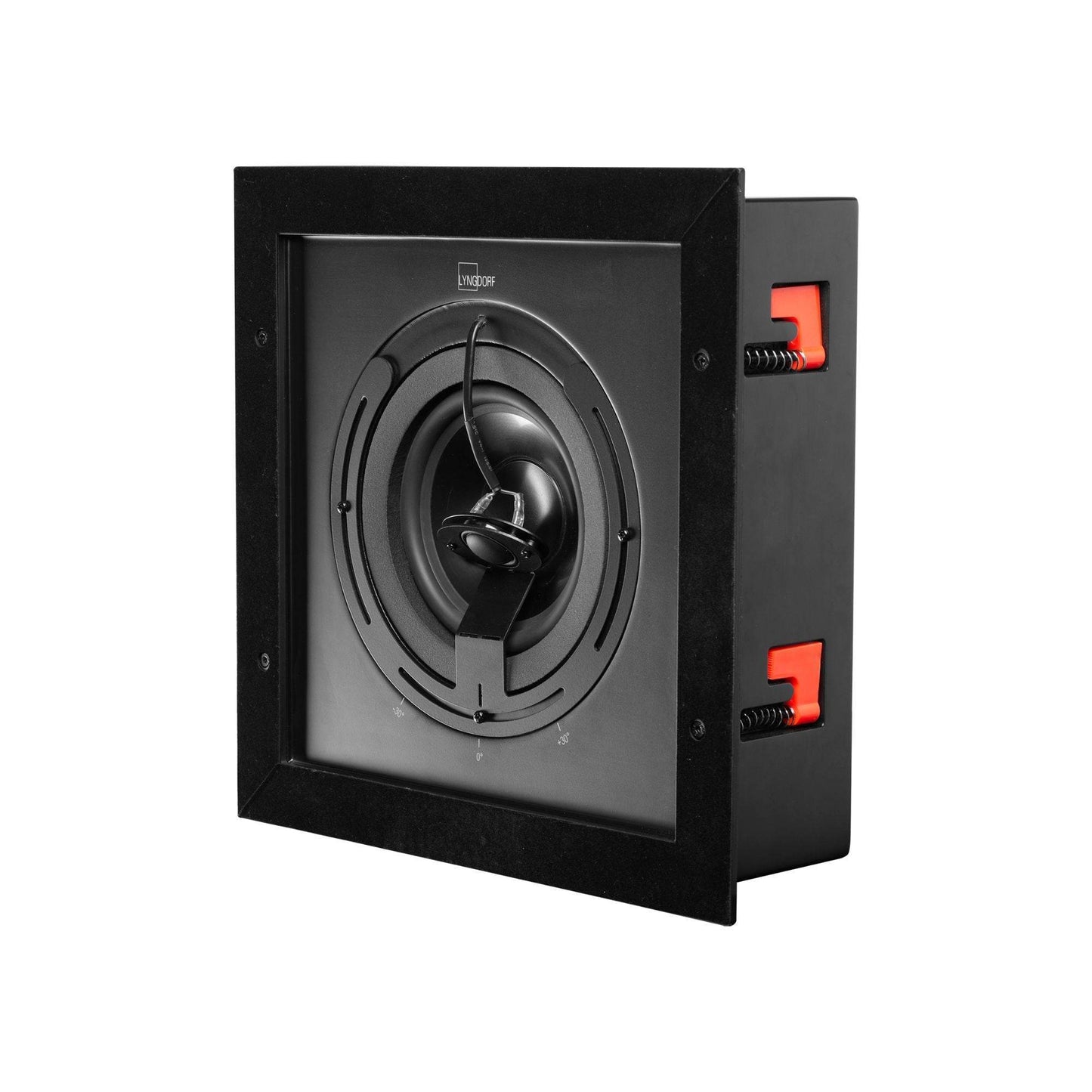

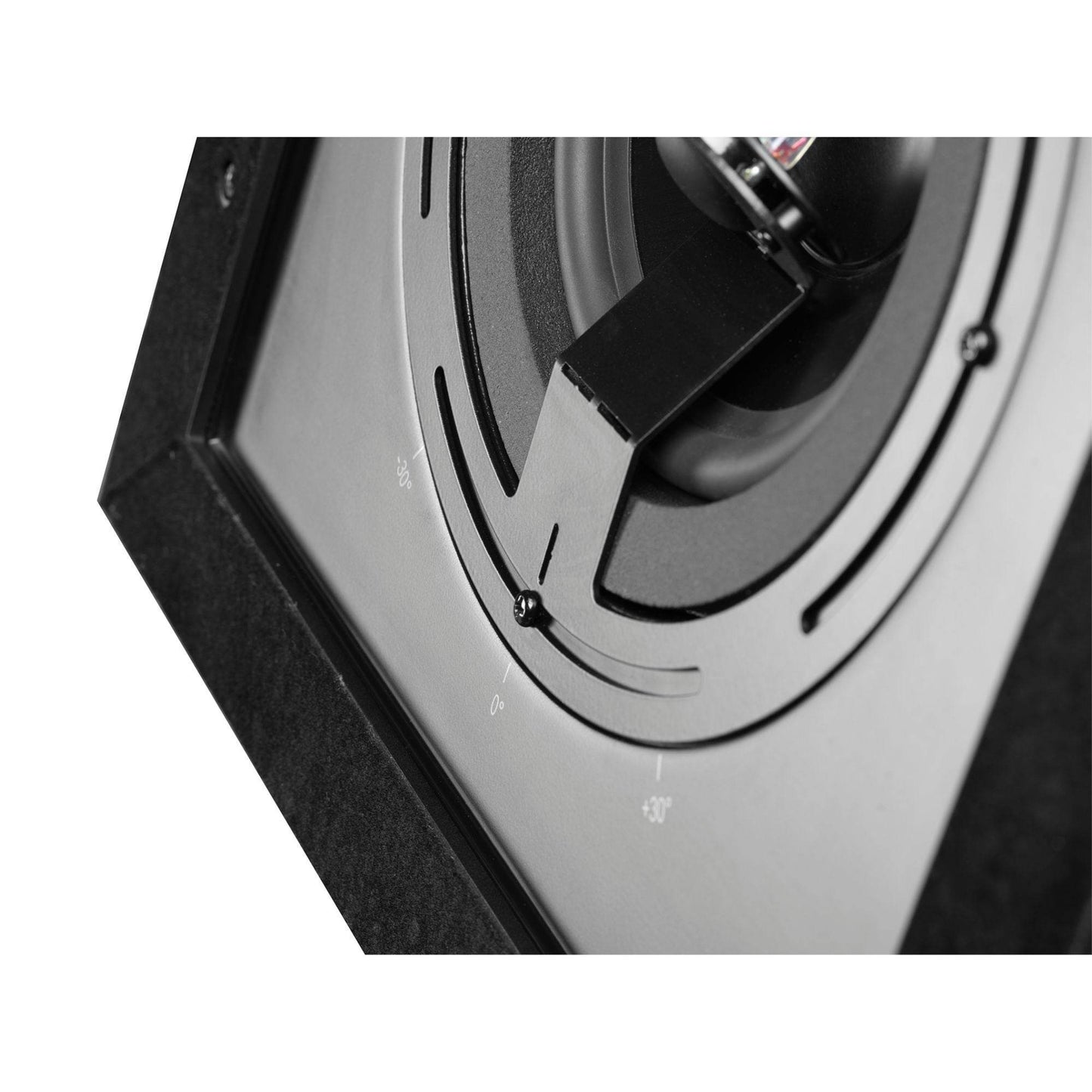

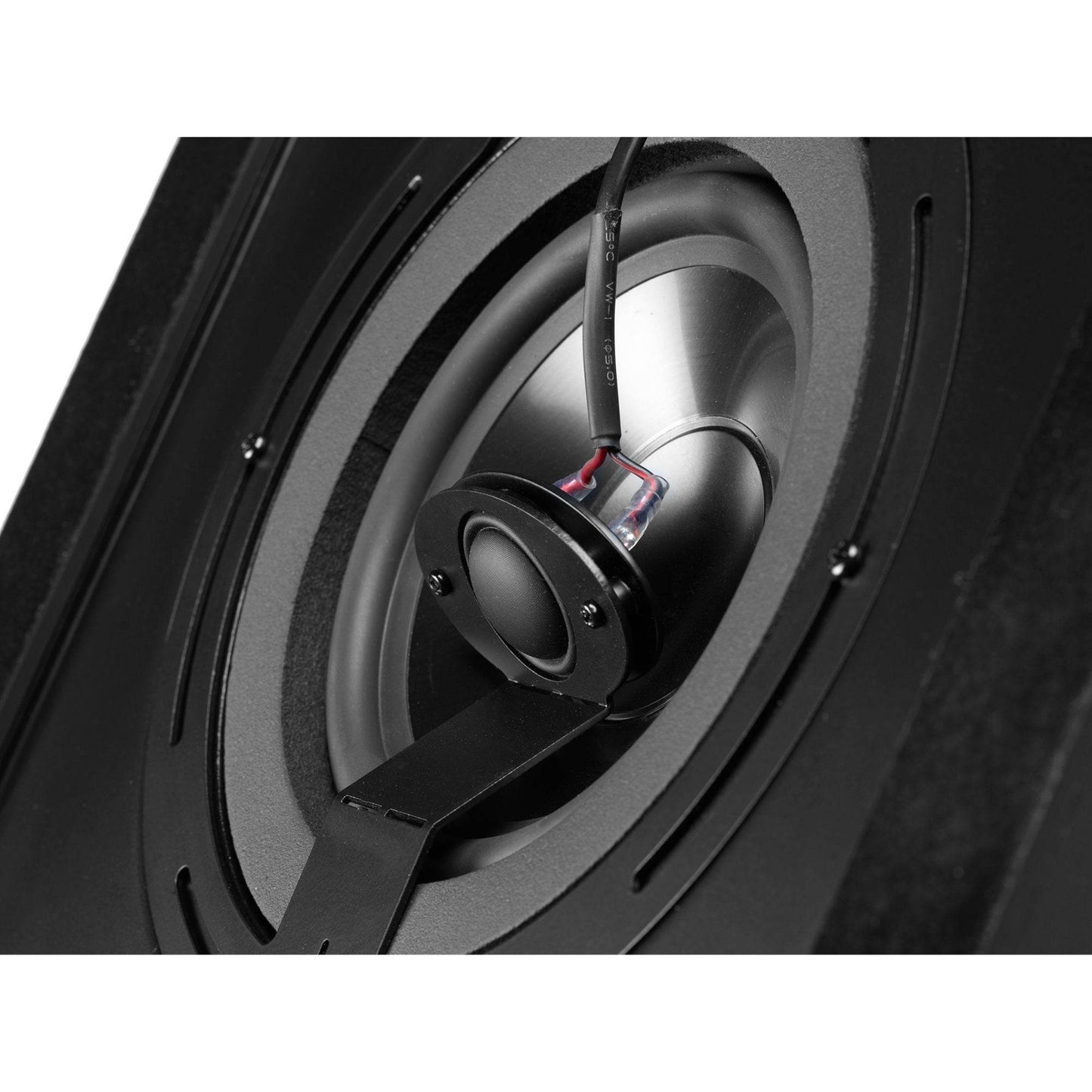

The D-5 IC model features an angled, adjustable tweeter. Together with the square cabinet design, this construction allows the sound to beam towards the listening area, for example when used as height speakers for immersive audio, mounted above in front, at the sides, or behind the listeners. The tweeter radiation can further be fine-tuned after the installation.

Pre-mounted loudspeaker enclosure

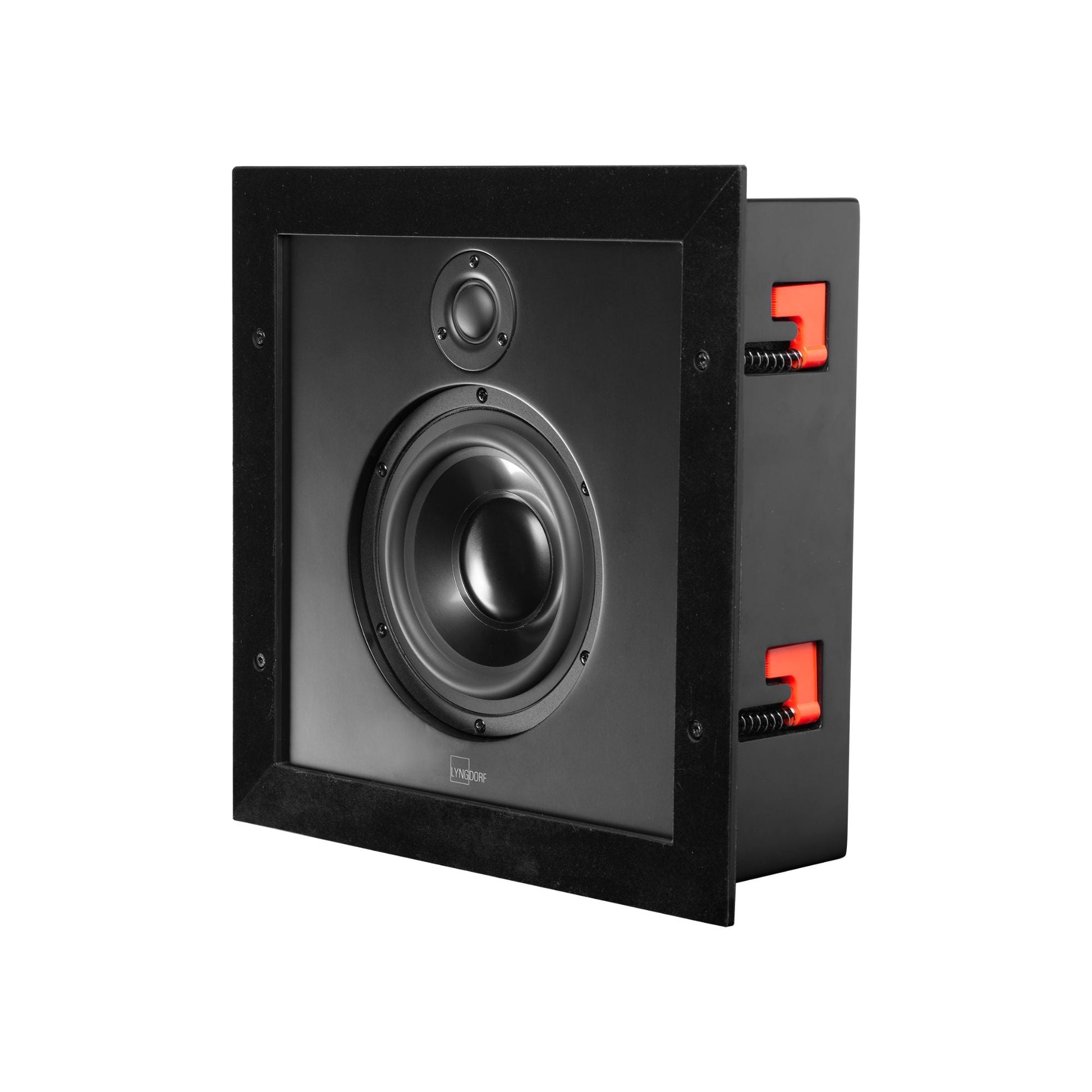

Both D-5 and D-5 IC models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Lyngdorf Audio speaker design and drive-units

The D-500 and D-5 woofers, midrange drivers and tweeters are designed by Lyngdorf Audio and feature soft-dome tweeters, light aluminum cones, and powerful vented magnets..

SPECIFICATIONS

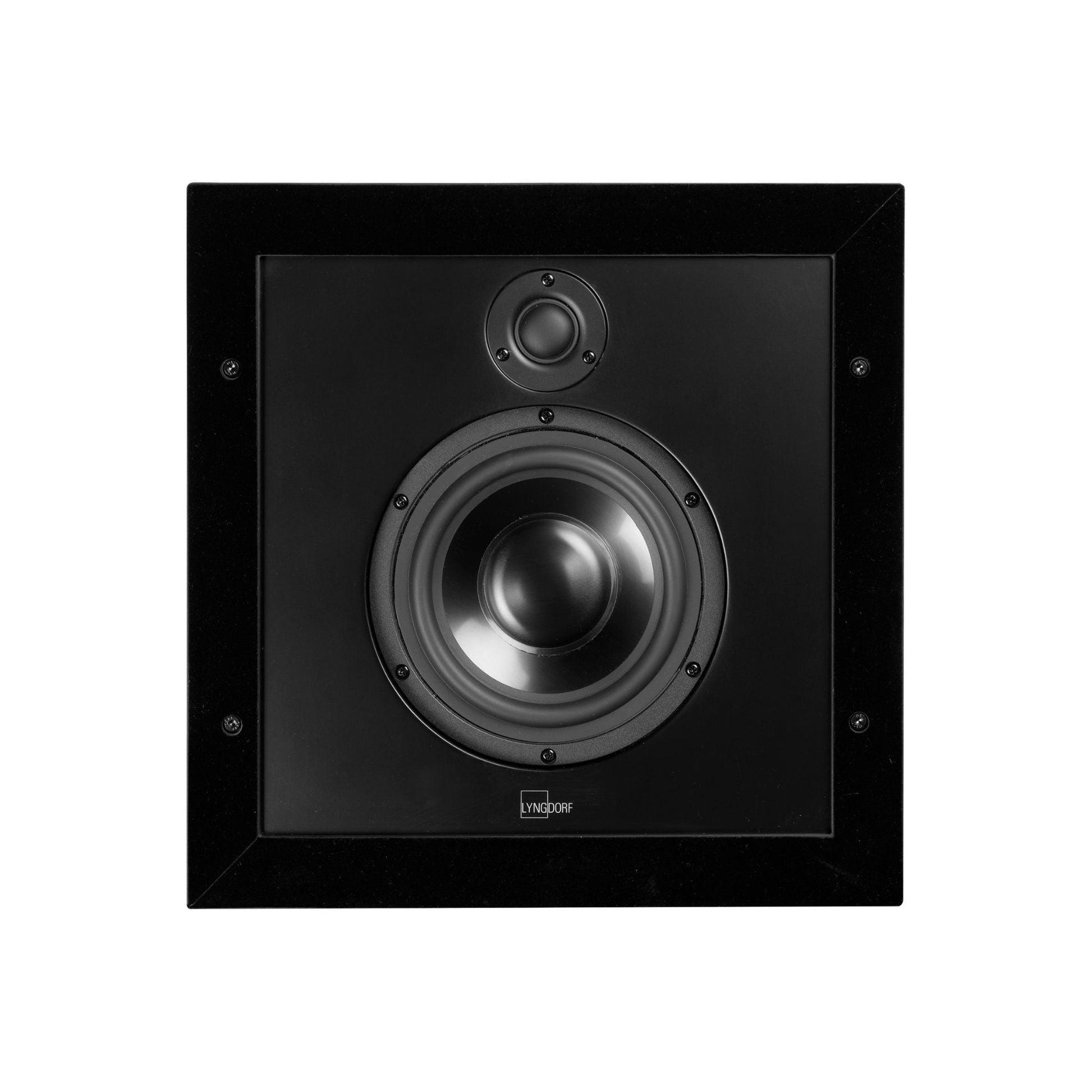

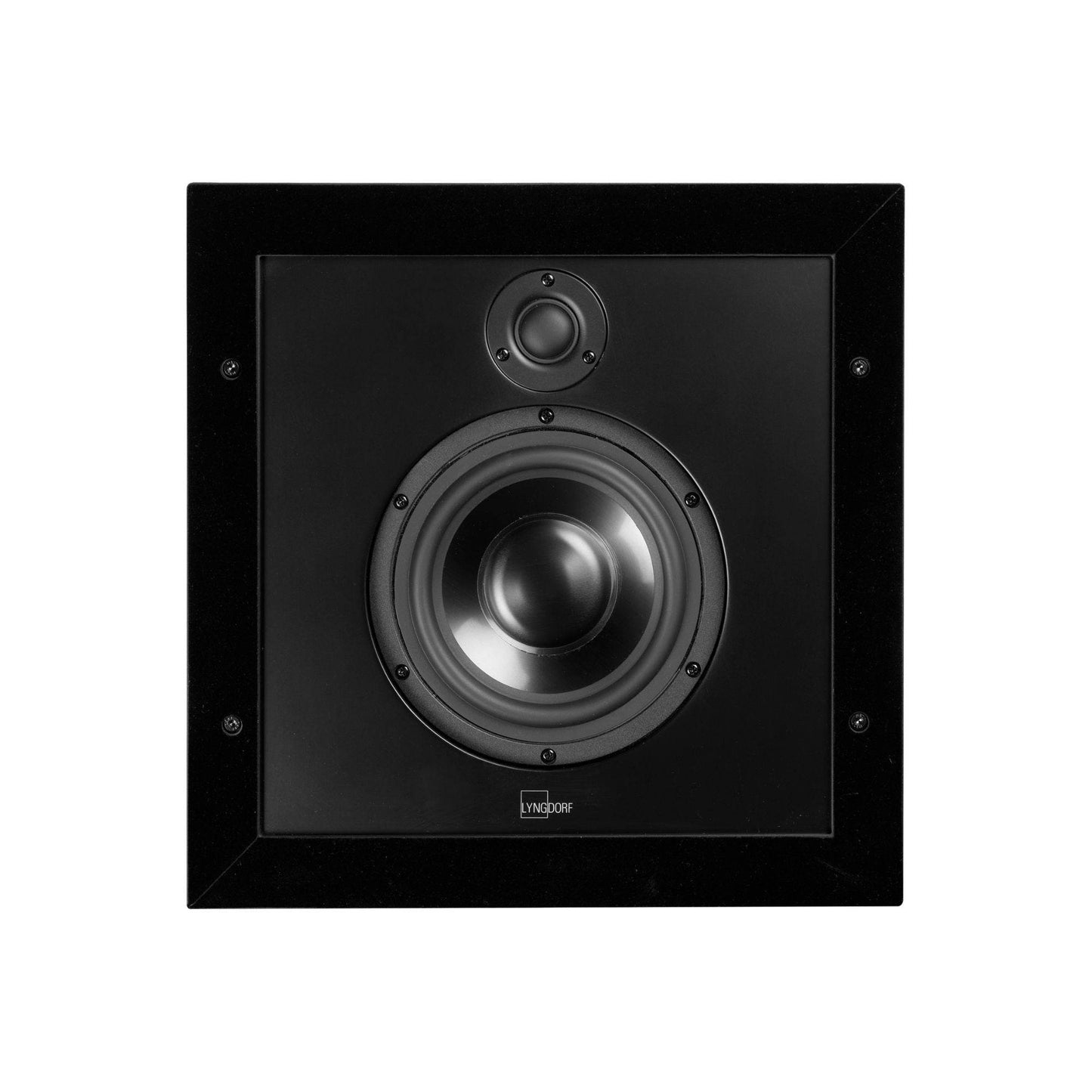

Lyngdorf D-5

Model	Lyngdorf D-5
Description	2 way speaker
Tweeter	25 mm / 1” soft dome
Midrange driver	180 mm, 35 mm voice coil, aluminum cone, vented magnet
Enclosure	Closed MDF cabinet
Frequency range	80 – 20,000 Hz (-3 dB)
Nominal Impedance	4 Ohm
Sensitivity	89 dB (2.83V/1m)
Power handling	100 W (IEC)
Maximum SPL	106 dB
Crossover point	2,2 kHz
Connections	Binding posts
Mounting	In-wall
Dimensions with grill (W x H x D)	362 x 362 x 109 mm / 14.25 x 14.25 x 4.3 inches
Cut-out dimensions (W x H x D)	334 x 334 x 104 mm / 13.2 x 13.2 x 4.1 inches
Weight	6,4 kg / 14.1 lb

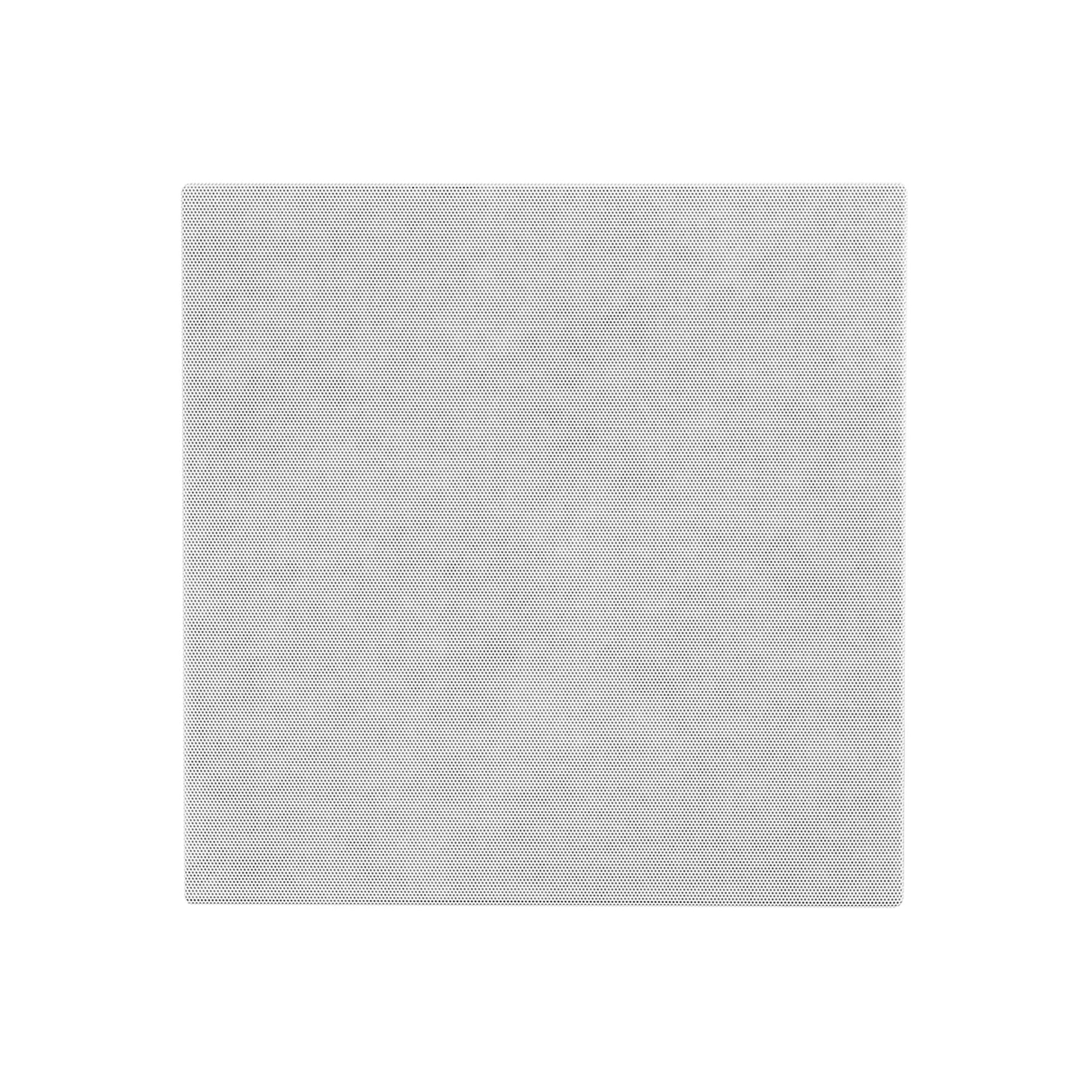

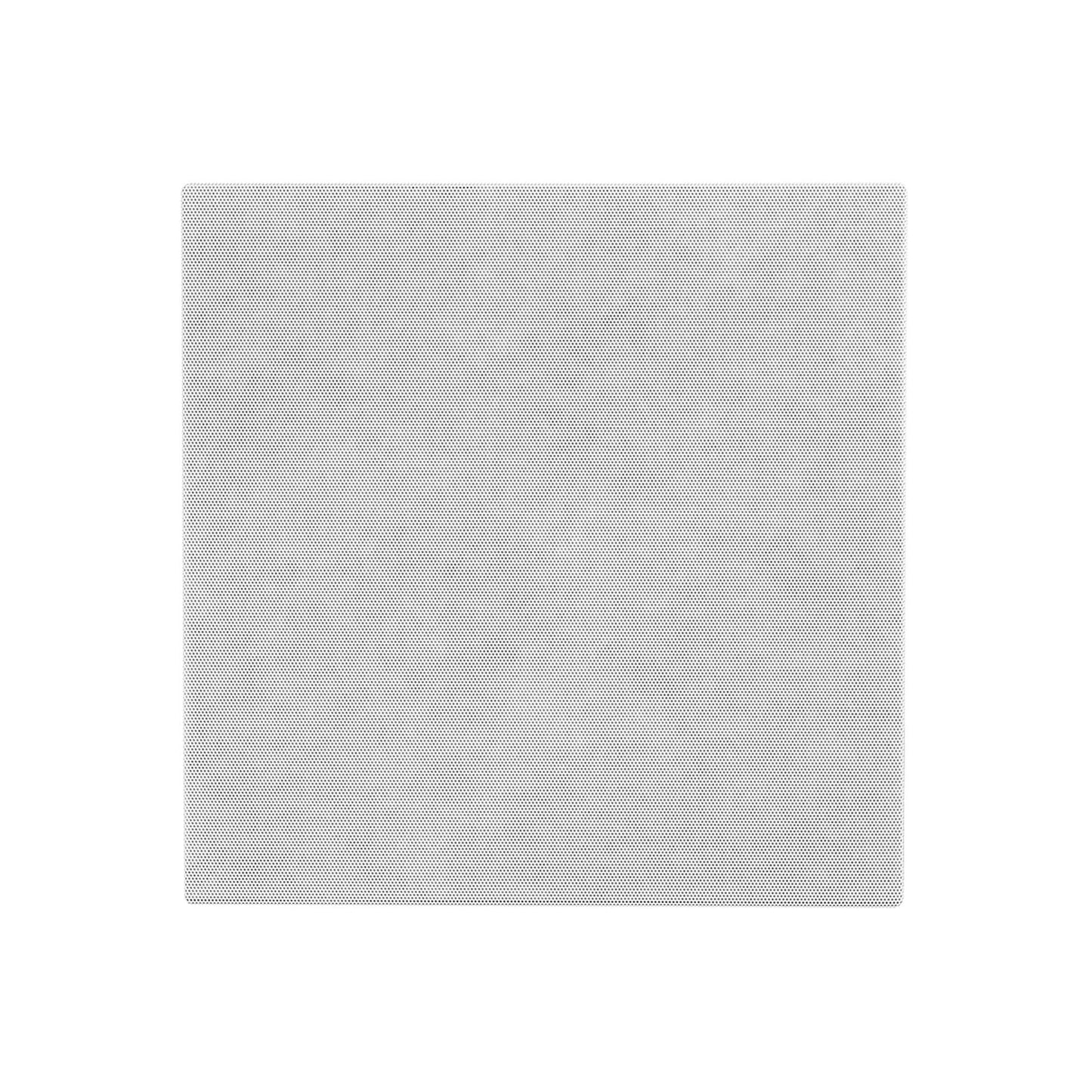

Finish	Matte black, white grill
