Monitor Audio Anthra W15 - 15" Active Subwoofer
Monitor Audio Anthra W15 - 15" Active Subwoofer
The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15” (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

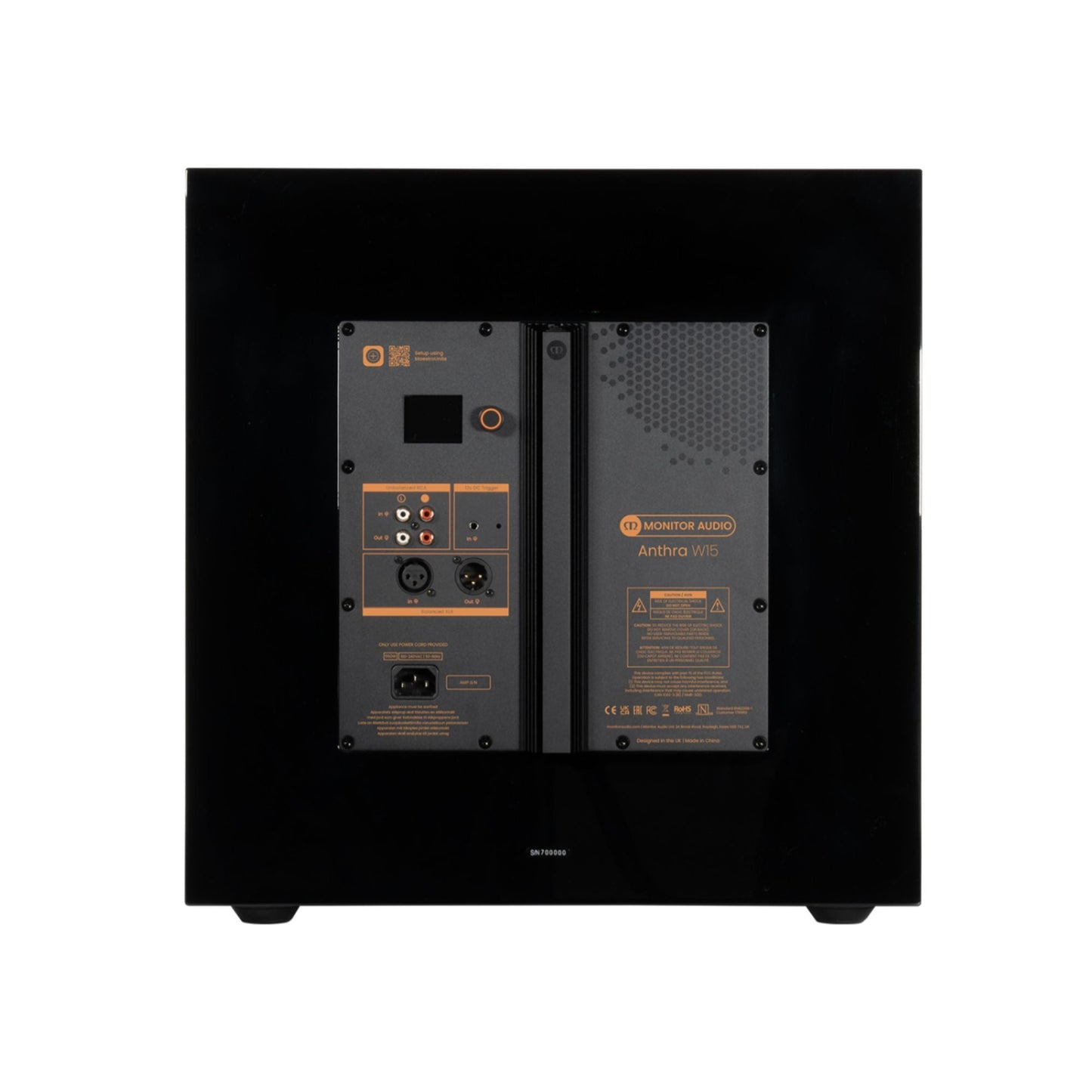

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Key Features
- 1 x 15” (38 cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
- 1 x 1,500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
- 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allows daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allows daisy chain of up to four Anthra subwoofers
- Available in Gloss Black and Satin White finishes
- MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.
SPECIFICATIONS
System Format |
Active - Sealed Cabinet |
Drive Unit Complement |
1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver |
Amplifier Classification |
High-Efficiency Class-D |
Lower Frequency Limit |
-6dB @16Hz |
Upper Frequency Limit |
(LPF Off) -6dB @400Hz |
Driver Excursion (pk-pk) |
50 mm |
DSP |
28 Bit 50 MIPS Configuratable through MaestroUnite |
Analogue Digital Conversion |
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
Amplifier Output Power, 240Vac |
|
Amplifier Output Power, 120Vac |
|
LED UI Control |
Brightness, On-Off |
Phase Control |
0-360 Degrees measured at LPF Crossover |
Low Pass Filter |
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
Custom EQ |
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
Volume Level |
Wide adjustable input gain to allow maximum output from a wide range of input signals |
Inputs |
|
Outputs |
|
Mains Input Voltage |
Universal Mains, 85-265VAC |
External Dimensions (without feet) (HxWxD) |
439 x 439 x 439 mm |
Power Consumption |
550 W |
Cabinet Construction |
Braced 25 mm thick MDF with 36 mm front baffle |
Grille |
Cloth covered magnetically attached Grilles |
Weight |
40.3 kg |
