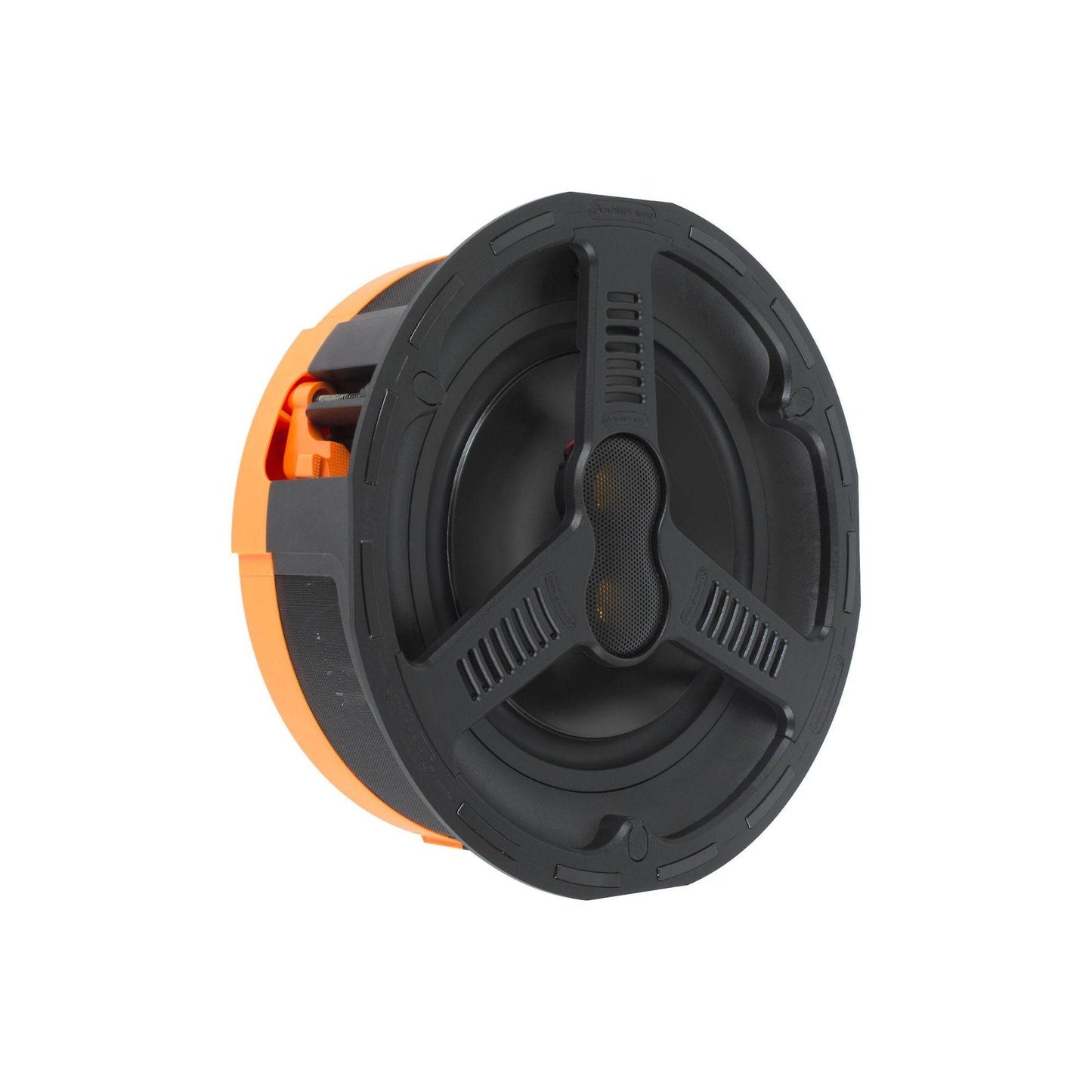

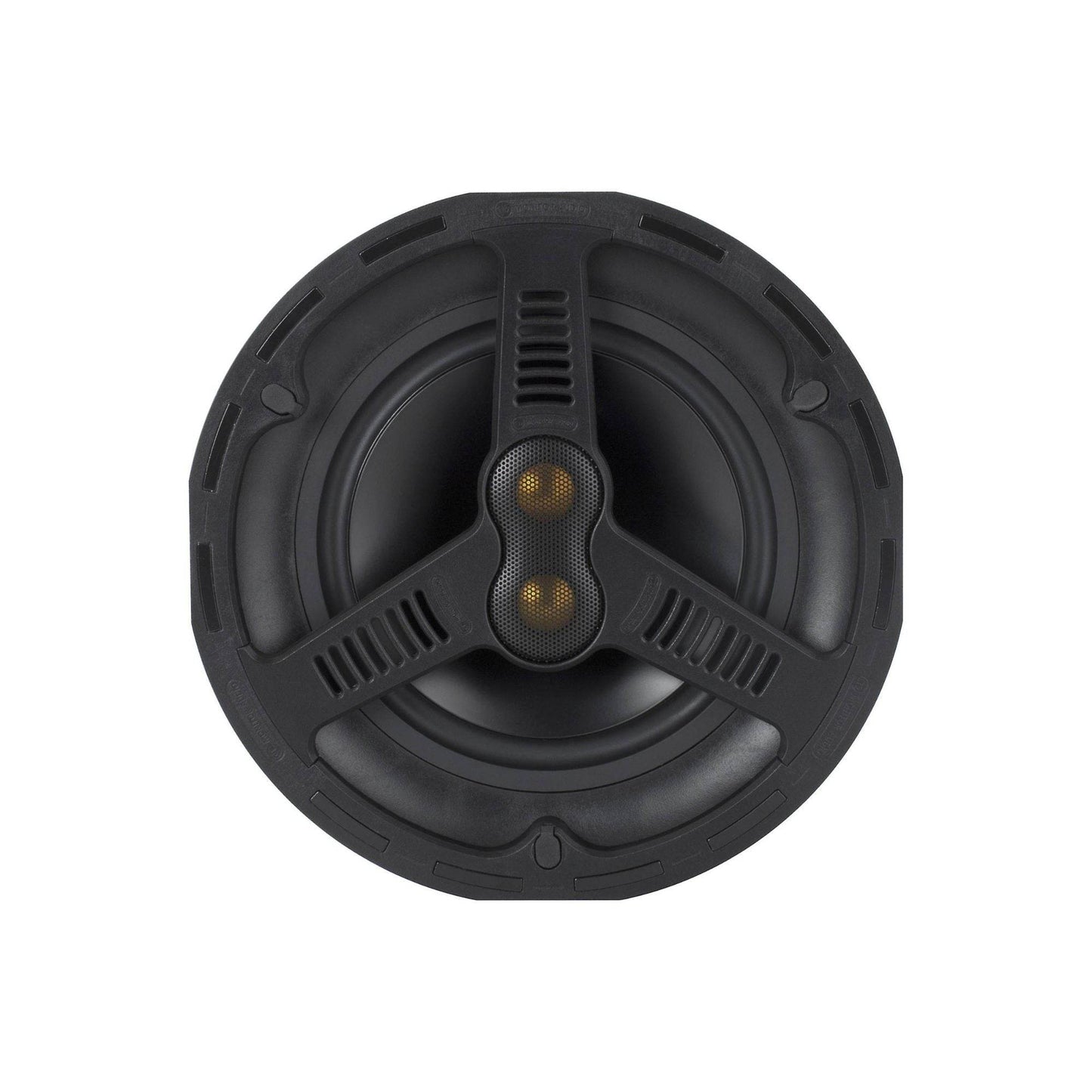

Monitor Audio AWC280-T2 - All-Weather Stereo-Input In-Ceiling Speaker - Piece
Monitor Audio AWC280-T2 - All-Weather Stereo-Input In-Ceiling Speaker - Piece
Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC280-T2 to deliver high performance stereo sound from a single unit where space is limited.
Stereo playback from a single speaker
Here's a great problem-solving speaker for rooms where you want to hear high-quality music playback, but just have room for a single speaker. The Monitor Audio AWC280-T2 uses a dual-tweeter design to deliver the complete stereo mix without the need for an additional speaker.

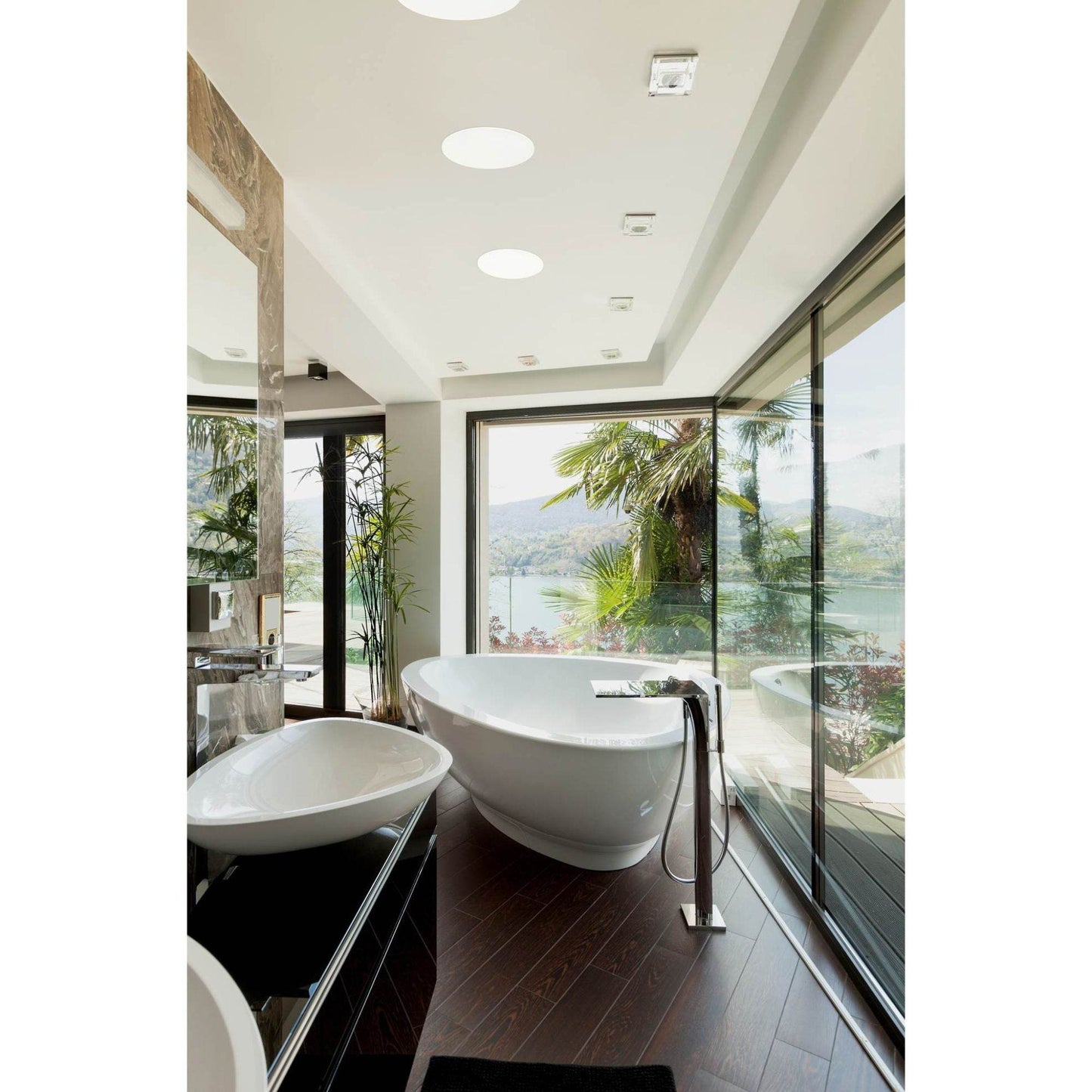

It's perfect for kitchens, hallways, or any other room where you want music from a single in-ceiling location. The AWC280-T2 is also moisture-resistant, so you can use it in humid areas like your bathroom or covered porch with confidence. You'll enjoy solid bass from the 8" woofer, and smooth highs from two 1" gold dome C-CAM® tweeters.
A built-in enclosure elevates your sound

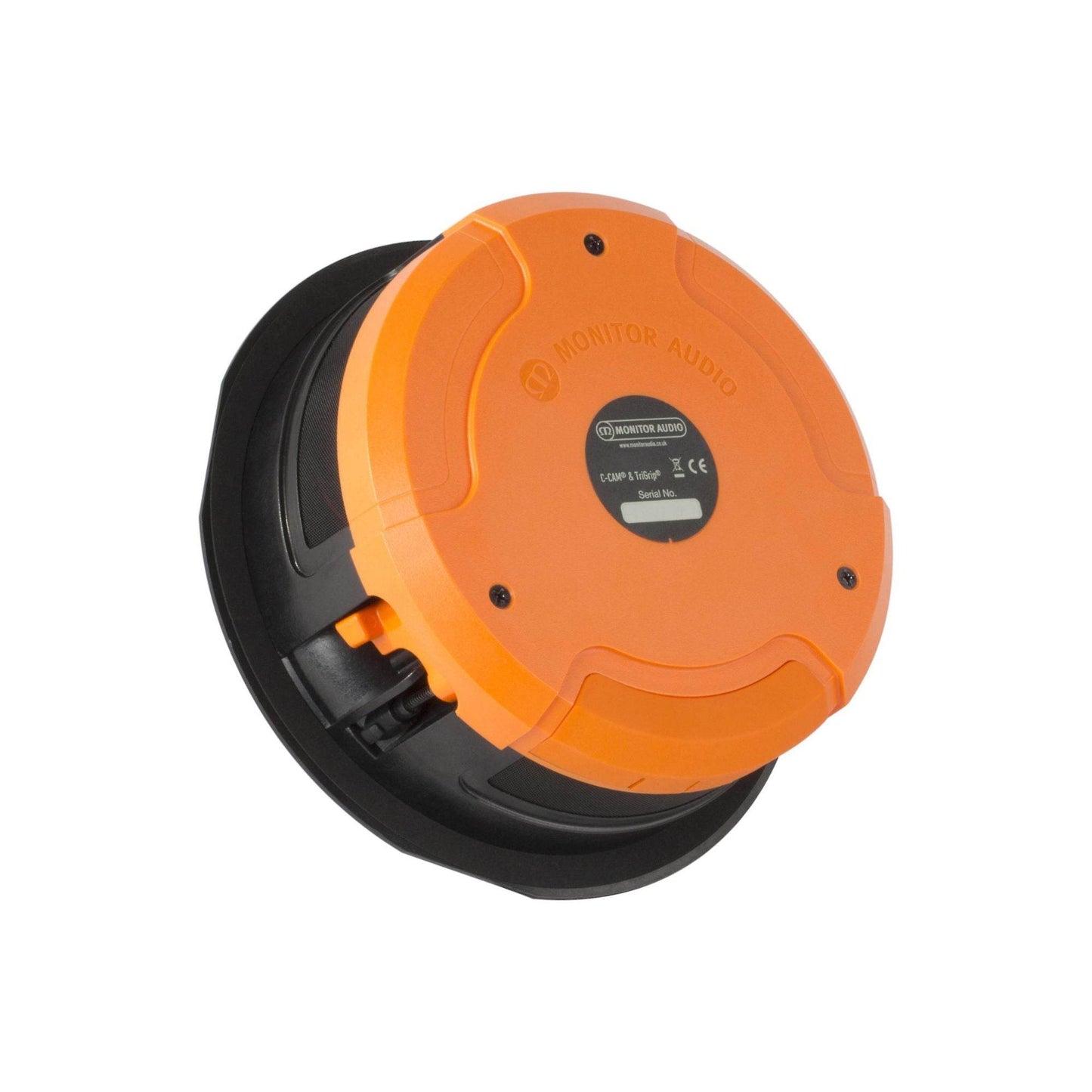

One of my favorite features of this speaker is its built-in back-box. This carefully designed enclosure helps the speaker deliver consistently focused, well-balanced sound no matter what kind of space is behind it in your ceiling. It also keeps dust, dirt, and moisture out of your speaker.
Technology
- High Performance C-CAM bass and high frequency drivers

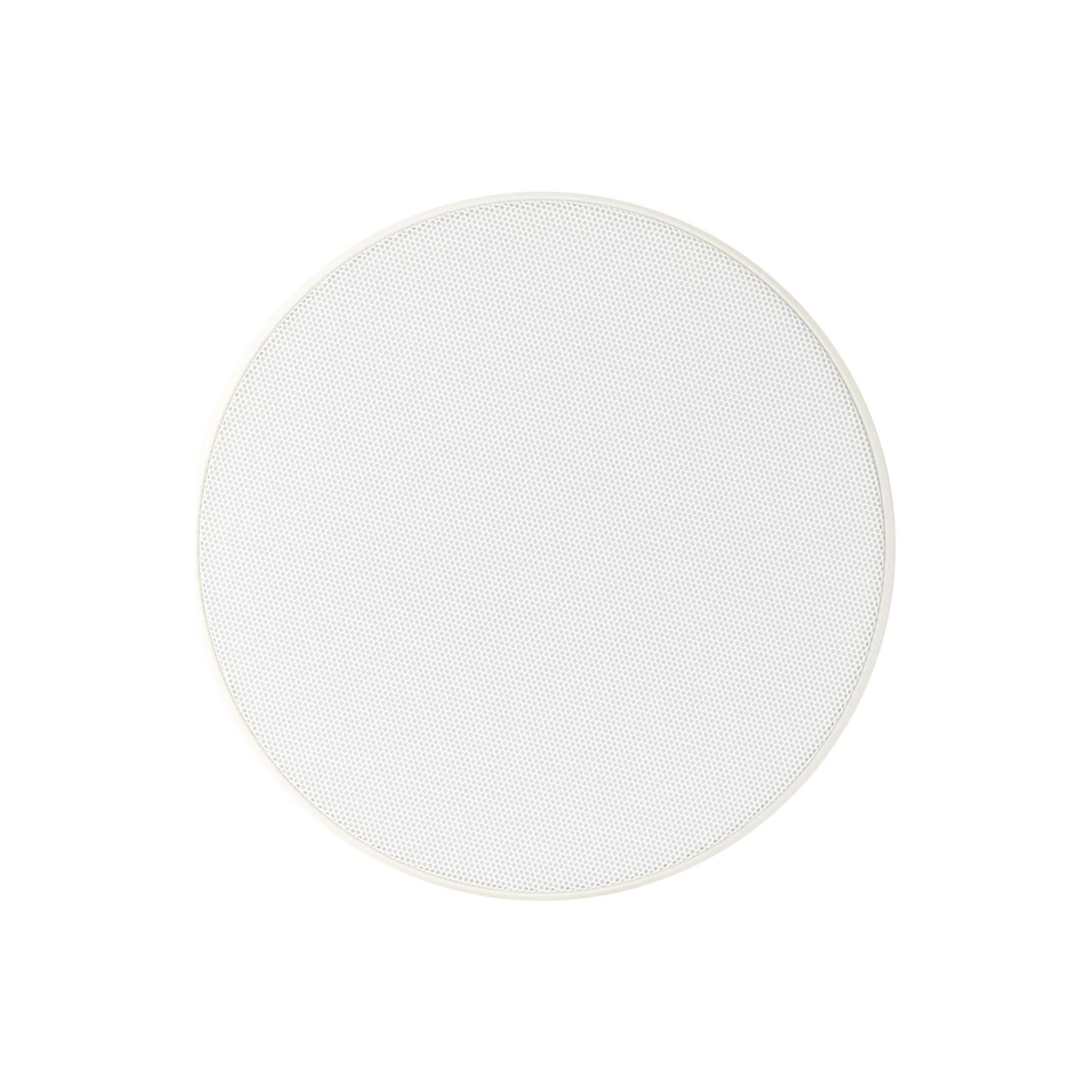

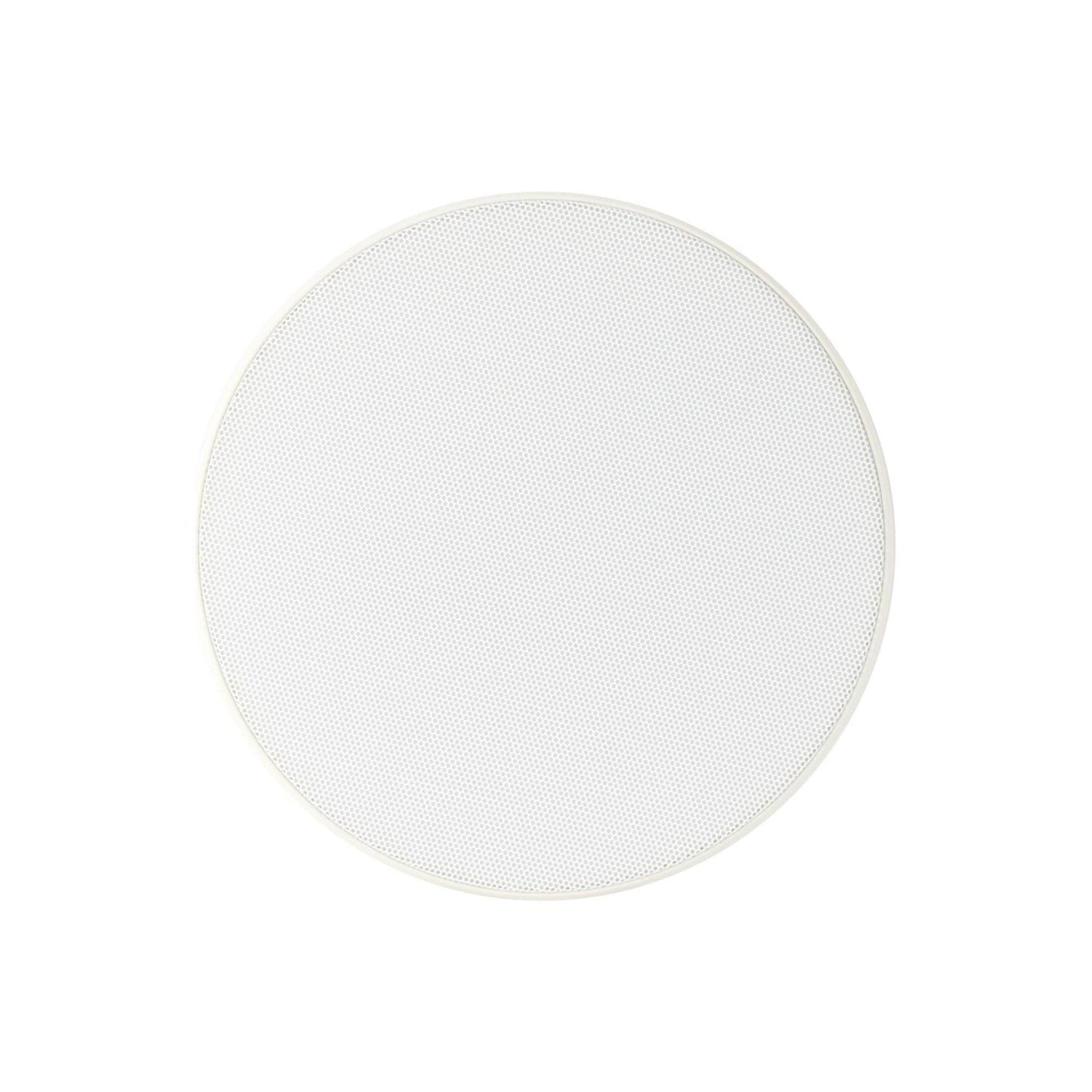

- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
What's in the box
- Monitor Audio AWC280-T2 owner's manual
- In-ceiling speaker
- Grille
- Paint skim
- Installation Guide
- Important Safety Instructions
- Cutout Template
SPECIFICATIONS
Frequency Response |
50 Hz — 30 kHz |
Sensitivity (1W@1M) |
88 dB (both channels driven) |
Nominal Impedance |
8 + 8 ohms |
Maximum SPL |
109 dBA |
Power Handling (RMS) |
100 W |
Recommended Amplifier Requirements |
20 — 100 W |
Drivers |
|
Adjustment Controls |
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation |
Connection |
2 x (2 pairs) Gold plated push style terminal |
Fixing Type |
3 position Tri-Grip dog leg fixings |
Construction Material |
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant) |
Grille |
SS430 Stainless Steel |
Magnets |
Samarium Cobalt |
Operating Temperature Range |
-34° to 79° C -29° to 174° F |
Pre-Construction Bracket |
CM-B |
Back Box |
CML-BOX |
Overall Diameter (Including Grille) |
285 mm (111/4") |
Overall Depth (Including Grille) |
102.5 mm (41/32") |
Cut-Out Hole Diameter |
247 mm (93/4") |
Mounting Depth |
97.6 mm (37/8") |
Optional Square Grille - Outer Dimensions |
285 x 285 mm (111/4") |
Sold As |
Single Unit |
Weight |
2.8 kg (6 lb 2 oz) |
