Monitor Audio Bronze W10 - 10" Active Subwoofer
Monitor Audio Bronze W10 - 10" Active Subwoofer
If you love deep and refined bass notes, the Bronze W10 is a must-have addition to your speaker set-up as every soundscape is effortlessly reinforced by their beautifully designed subwoofer.

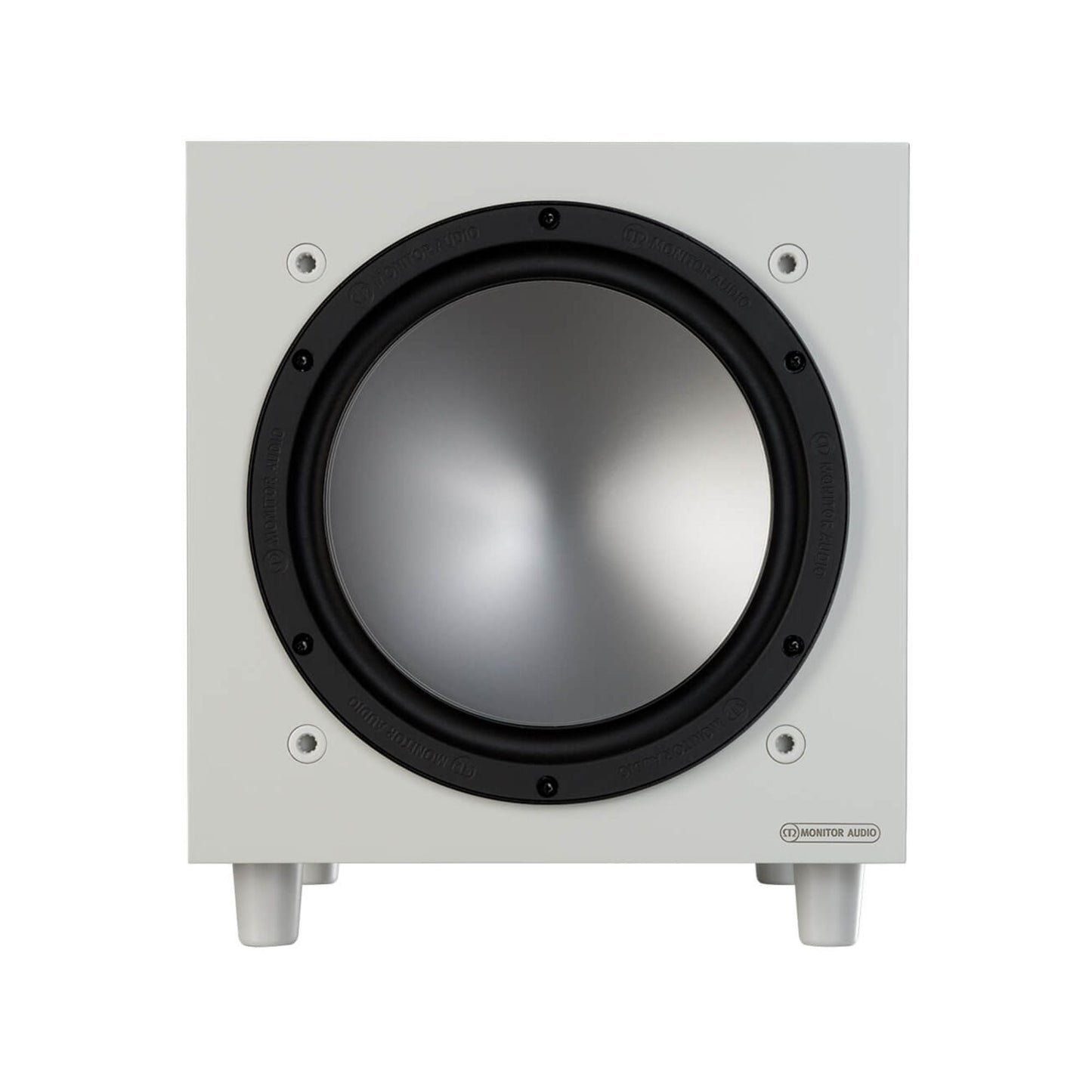

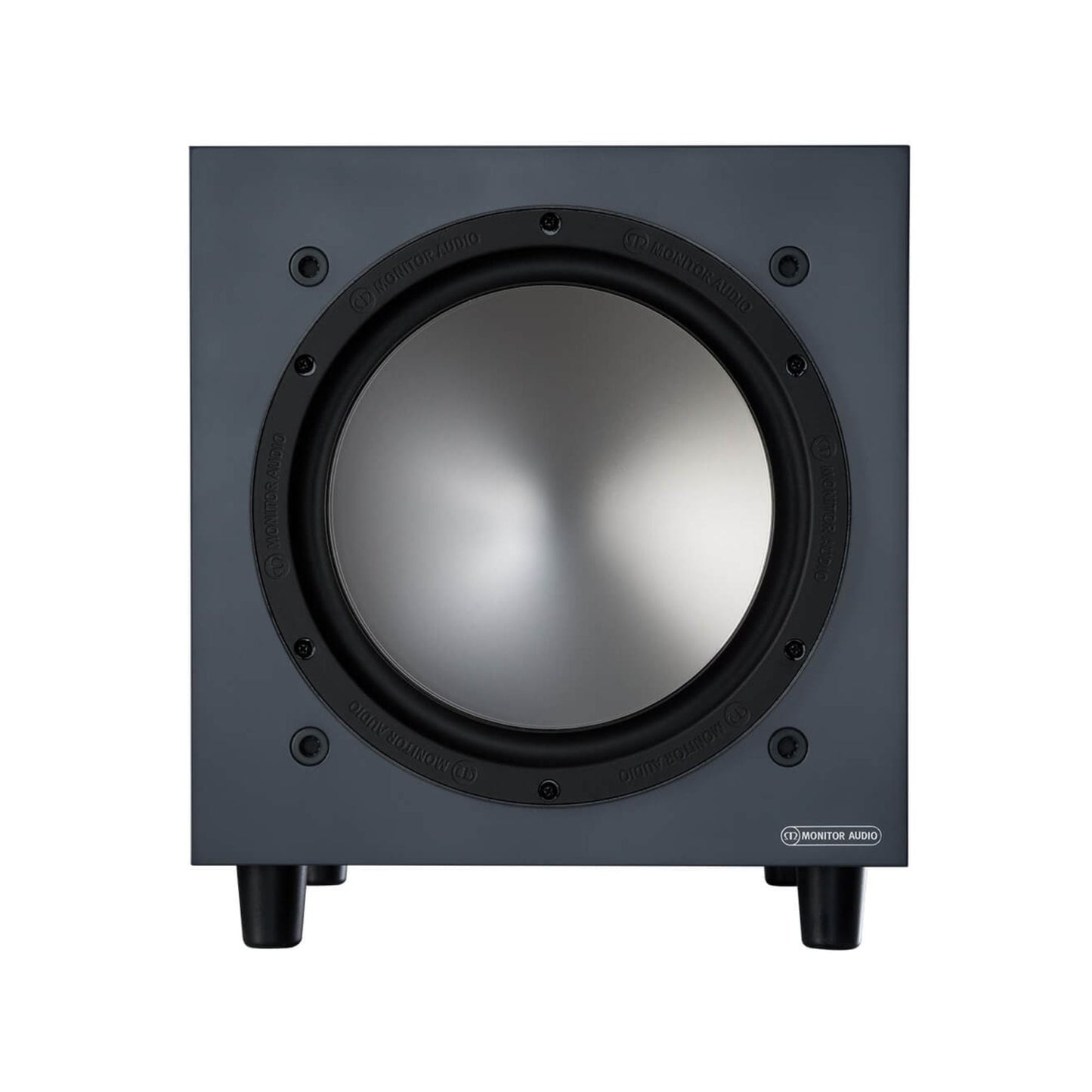

The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.
Monitor Audio’s engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drumsand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.
The Bronze W10 is a stunning addition to any room.
Deep, accurate bass
The Monitor Audio W10 powered subwoofer offers deep, accurate bass that enhances music listening and movie viewing equally. It features a front-firing 10" long-throw woofer and a down-firing 10" auxiliary bass radiator that allow it to reach all the way down to ultra-low notes around 29 Hz. Its built-in 220-watt amplifier gives it ample power to get the job done.
The sub can be configured to suit your listening habits, too. It has three DSP (digital signal processing) settings for different scenarios: Music, Movie and Impact. A variable low-pass filter on the rear panel lets you dial in the bass to complement your speakers perfectly. And you can set it to come on automatically when the rest of your system is powered up.
Key Features
- Long-throw 10" (250 mm) driver featuring ‘dished’ C-CAM
- 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
- Class D amplifier with high current Switch Mode Power Supply (SMPSU)
What's in the box:
- Monitor Audio Bronze W10 owner's manual
- Powered subwoofer
- Grille
- 6.5' AC power cord
- 10' Mono-minijack cable
- 4 Rubber feet
- Quick Start Guide
- Important Safety Instructions
SPECIFICATIONS
System Format |
|
Lower Frequency Limit |
-3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room) |
Upper Frequency Limit |
-6 dB @ 150 Hz |
Drive Unit Complement |
1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil |
Linear Driver Excursion |
17 mm peak to peak |
Amplifier Output |
220 W |
Amplifier Classification |
Class D with high current Switch mode power supply (SMPSU) |
Phase Control |
0 Degrees & 180 Degree pure Invert |
Low Pass Filter Alignment |
4th order (24 dB/Octave), from 50 Hz to 120 Hz |
Equalisation DSP |
3 pre-set modes: Music, Movie, Impact |
Auto Sensing |
Line Level >3mV. Auto Standby feature after 20 mins |
Audio Input/Outputs |
|
Input Impedance |
20 kOhms input impedance |
12 V Trigger |
3.5 mm mono mini-jack. 6 V threshold |
Electrical Certifications |
CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant) |
Mains Input Voltage |
110 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected) |
Power Consumption |
Maximum 300 W, Standby <0.5 W (ErP compliance) |
Fuse Type |
20 mm T4AL 250 VAC |
External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) |
321 x 321 x 364 mm (125/8 x 125/8 x 145/16") |
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) |
366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16") |
Weight (unpacked) |
13.4 kg (29 lb 9 oz) |
