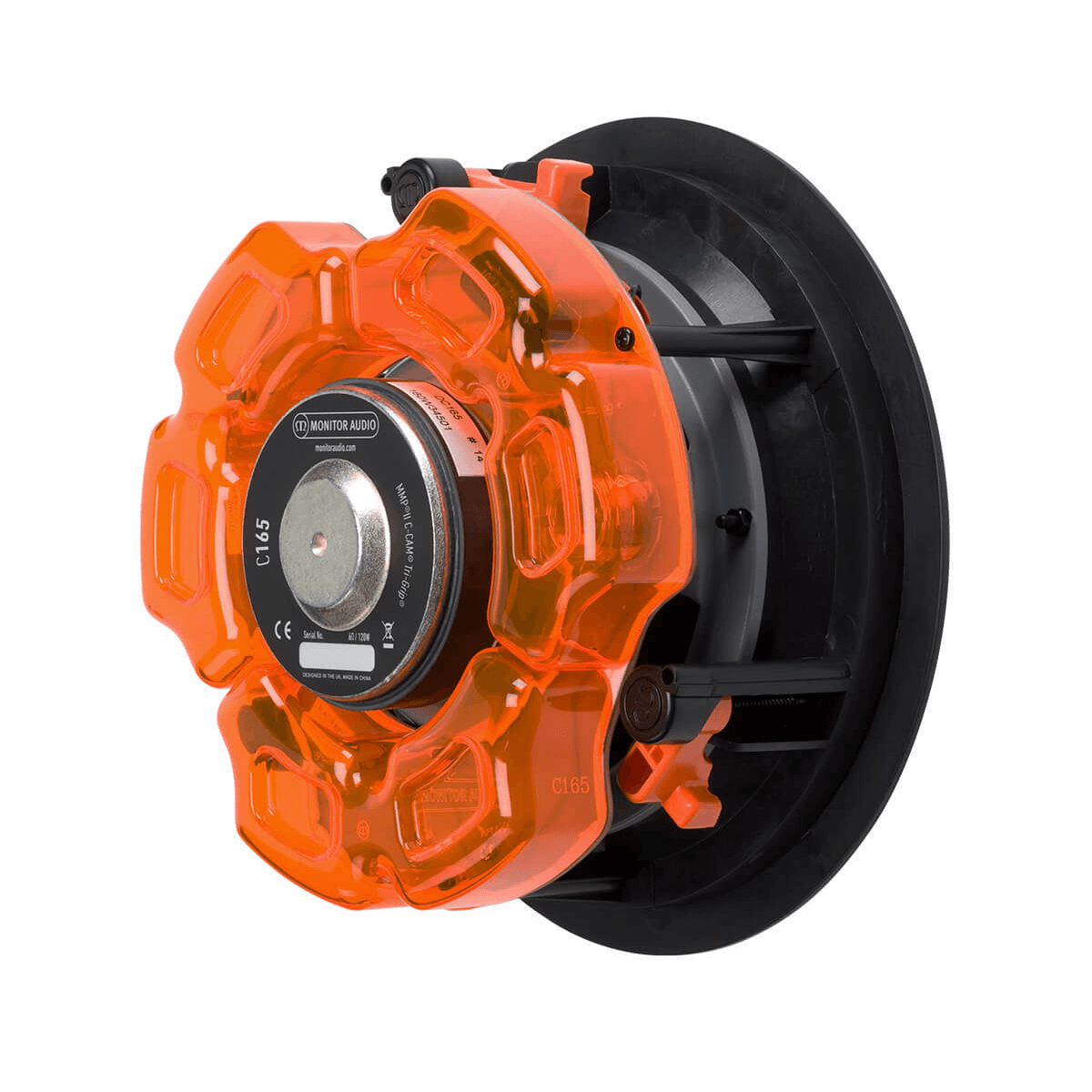

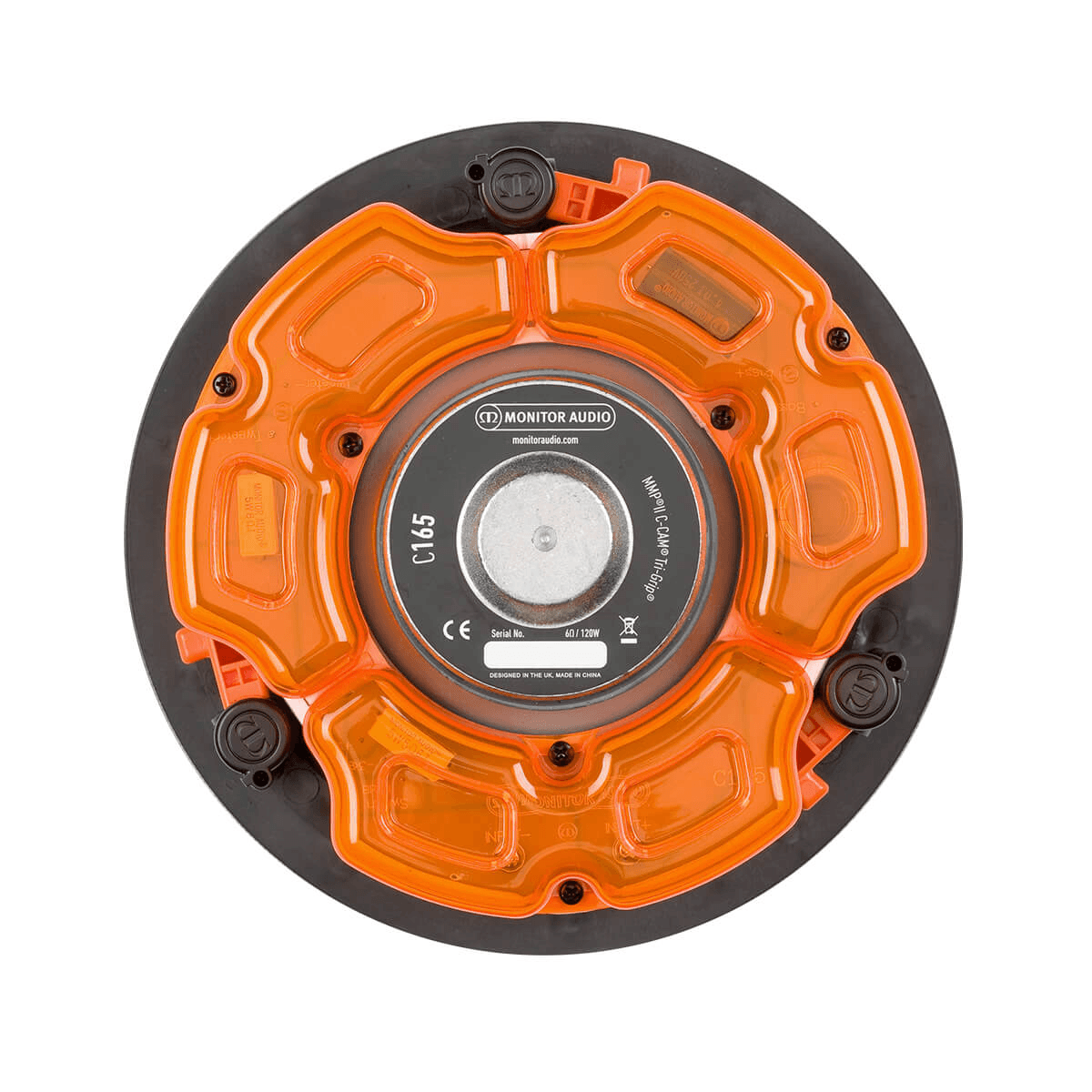

C165

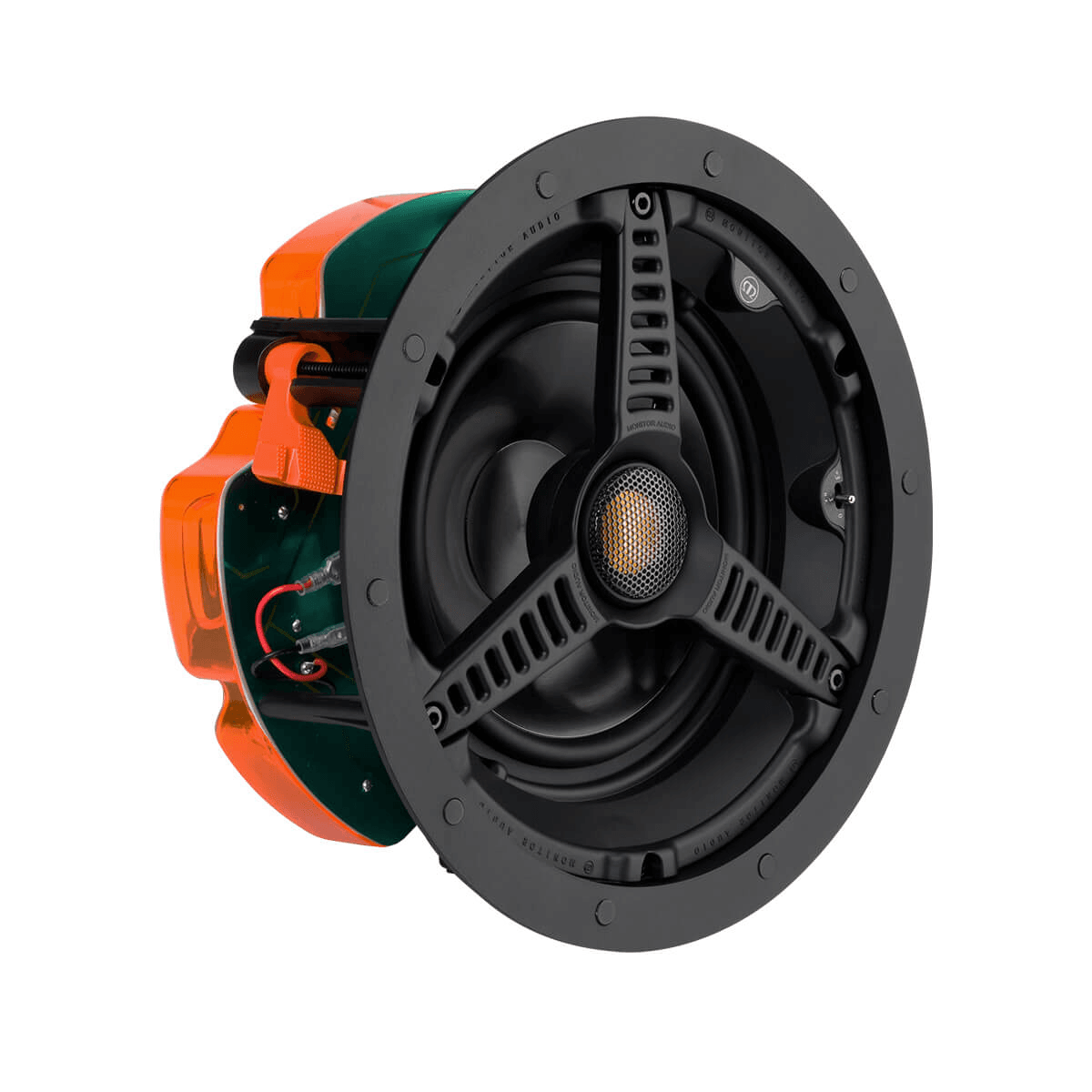

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
|
Frequency Response |
60 Hz – 25 kHz |
|
Nominal Impedance |
6 ohms |
|
Sensitivity (1W@1M) |
88.5 dB |
|
Maximum SPL |
107.4 dBA |
|
Power Handling (RMS) |
65 W |
|
Recommended Amplifier Requirements |
20 – 65 W |
|
Drive Unit Complement |
|
|
Adjustment Controls |
HF Level Switch (+3 dB / 0 dB / -3 dB) |
|
Overall Diameter (Including Grille) |
250 mm (913/16") |
|
Overall Depth (Including Grille) |
120 mm (43/4") |
|
Mounting Depth |
116 mm (49/16") |
|
Cut-Out Hole Diameter |
211 mm (81/4") |
|

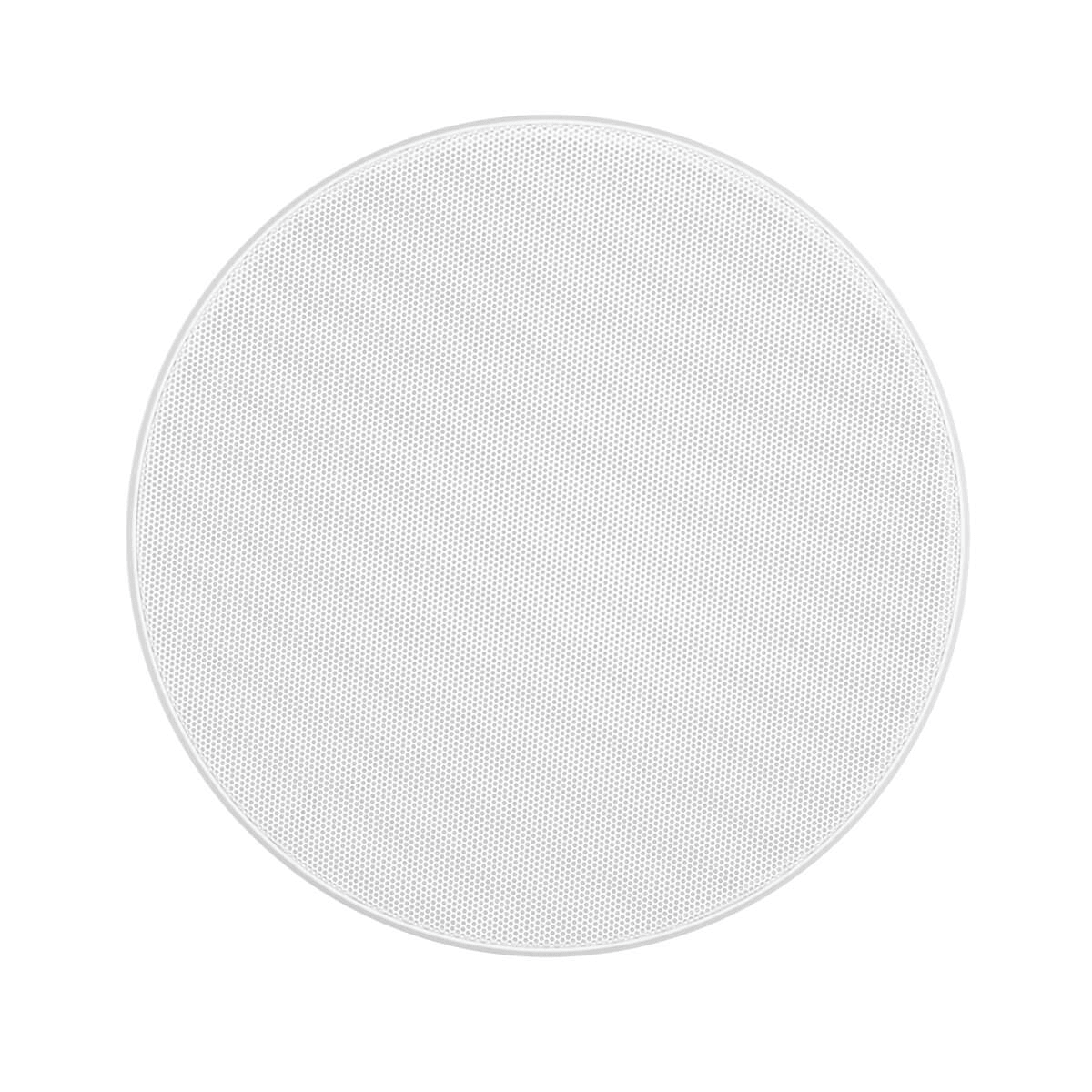

Optional Square Grille - Outer Dimensions |
249 x 249 mm (9 3/16") |
|
Fixing Type |
3 position Tri-Grip dog fixings |
|
Construction Material |
Mineral filled ABS, RoHS compliant |
|
Weight |
1.92 kg (4 lb 4 oz) |
|
Pre-Construction Bracket |
CB6 Pre-Construction Bracket (Purple) |
|
Back Box |
CCBOX-R / CMBOX-R |
