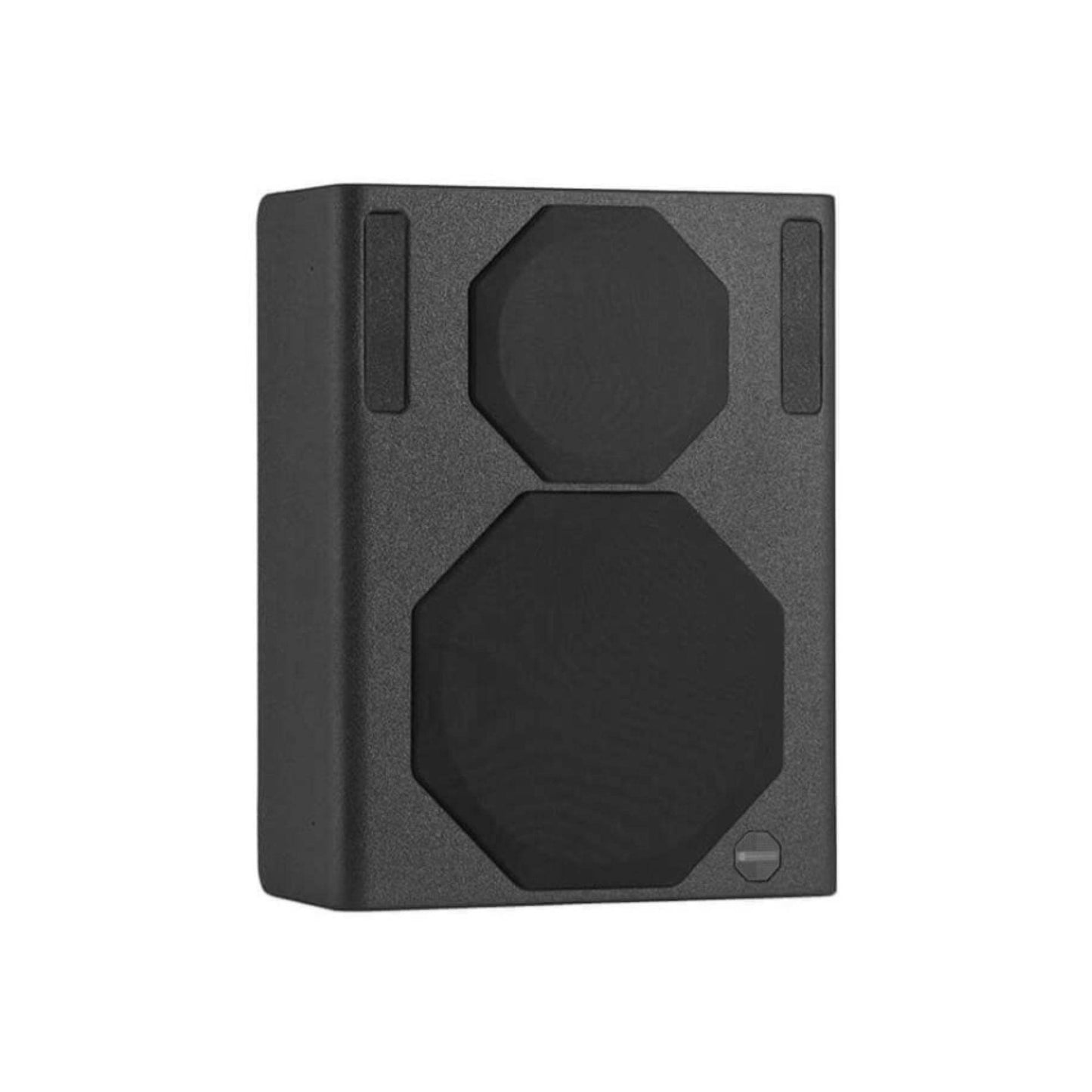

Monitor Audio Cinergy 100 - In-Wall Speaker - Piece
Monitor Audio Cinergy 100 - In-Wall Speaker - Piece
Whether it’s mounted on the wall or integrated within it, the Monitor Audio Cinergy 100 brings exceptional audio to your cinema space.
Unique isolation options separate the speaker from surfaces around it, reducing vibrations for purer sound and a truly cinematic experience. Removable port bungs give your installer the power to tailor the bass response to you. And thanks to precise equaliser settings for use with Monitor Audio's Amplifiers, it’s possible to fine-tune your listening experience even further.
A cinema built around you? Unheard of.
At Monitor Audio, they have been doing extraordinary things with sound for over 50 years. As the experts in making audio human, they are perfectly placed to bring every sound in your favourite movies to life. By choosing their Cinergy system, you’ll have a dedicated cinema that makes the whole experience as real, immersive and natural as possible. Of course, they could tell you all about the innovations, materials and engineering that make it possible, but that’s only part of the story. What really matters is the moment when you press play, the movie starts… and the rest of the world stops. When you experience audio so spectacular, it’s unheard of.
Incredible technology
Monitor Audio brought everything they have learned about audio to the big screen. From MPD High-Frequency Transducers to RDT II drivers, every element plays a part in the epic performance of Cinergy. And even before you hear it, you’ll see a distinctive mark of quality: the THX certified stamp, promising the highest standards of cinematic excellence.
Amazing design
The best cinemas are purpose-built, from the ground up, enabling you to create a world all of your own. Cinergy sits at the heart of this world, giving your installer the creative flexibility using modular designs, bespoke isolation and clever fixing methods. All with one goal: achieving unforgettable audio that’s perfectly attuned to your chosen space.
Key Features
- Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience

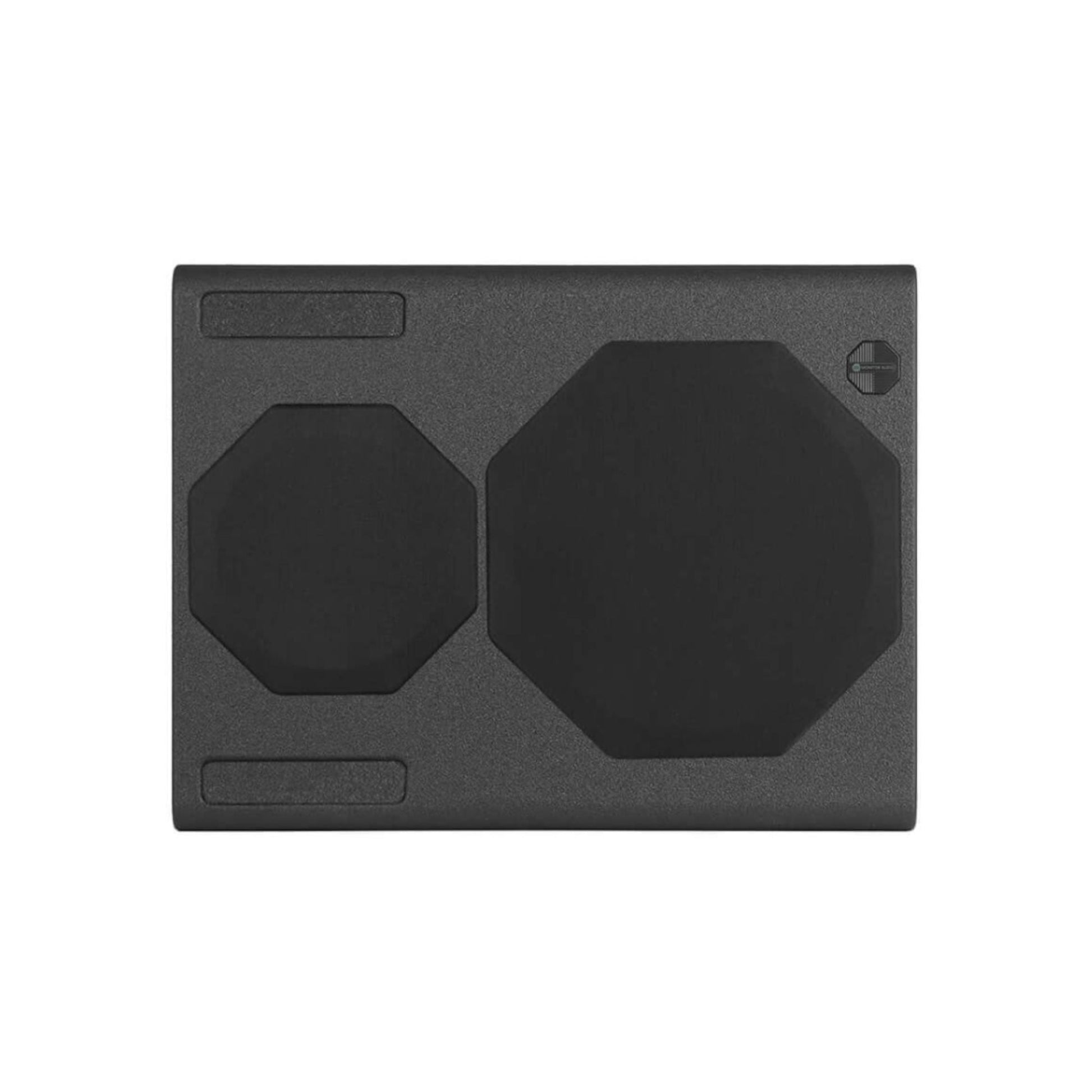

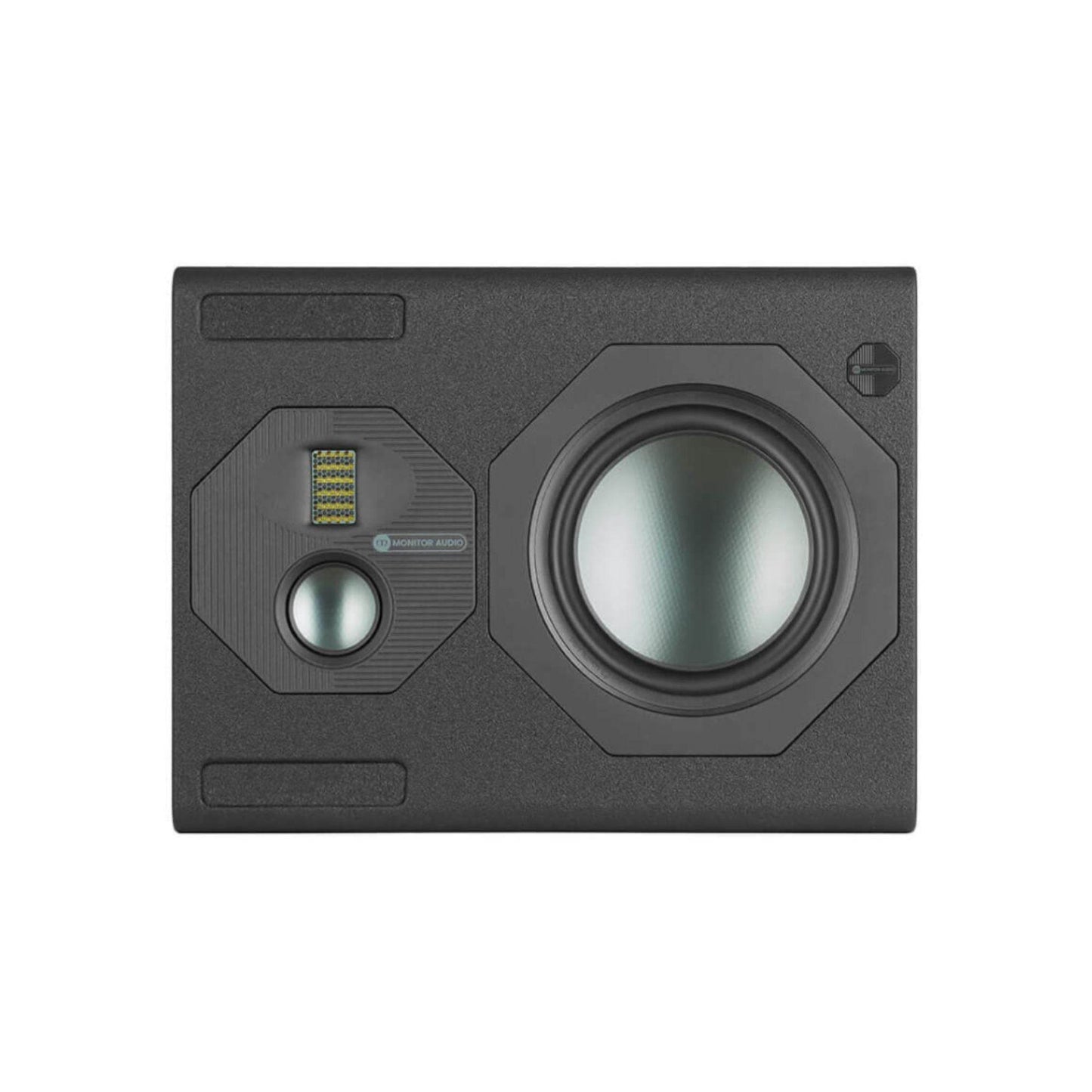

- Rotatable mid-tweeter array for use vertically or horizontally

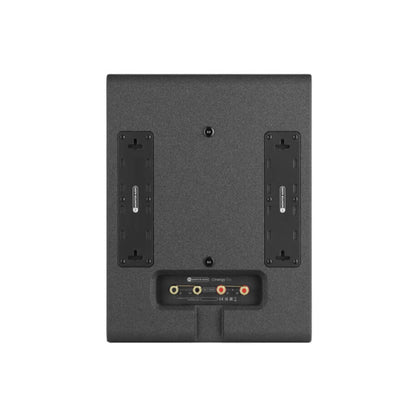

- Numerous mounting options, with a design perfectly suited to custom built mounting behind an acoustically transparent screen
- Removable port bungs to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers

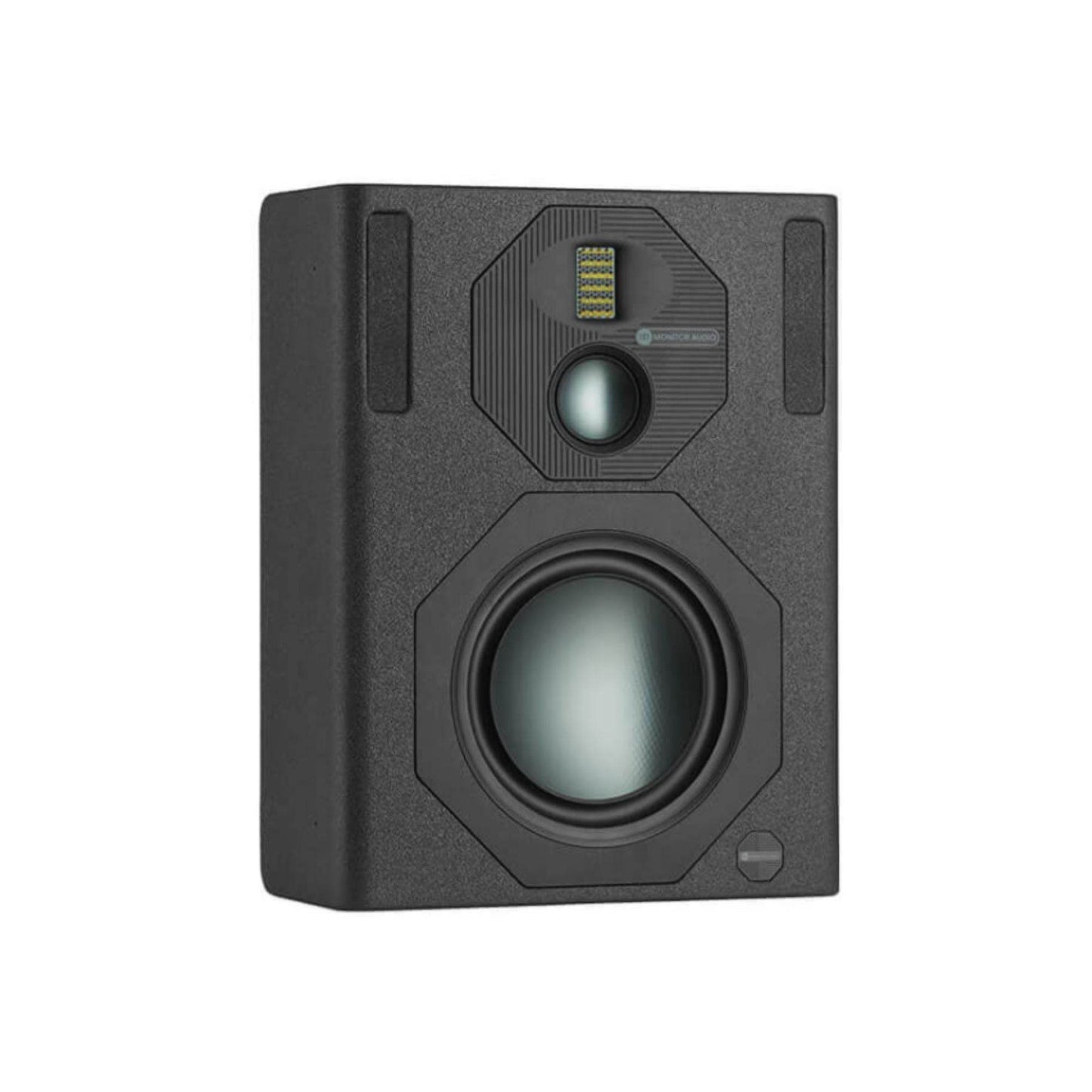

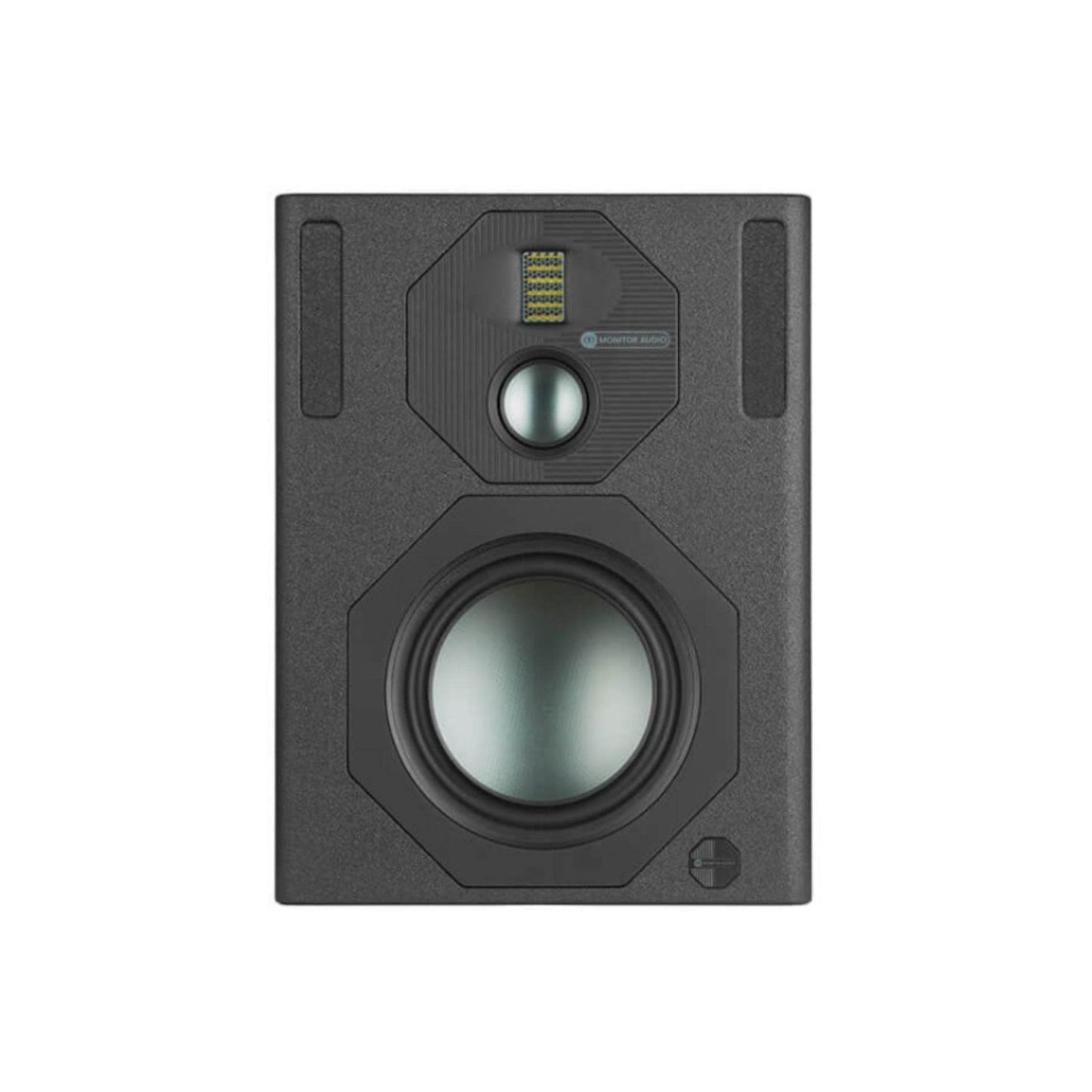

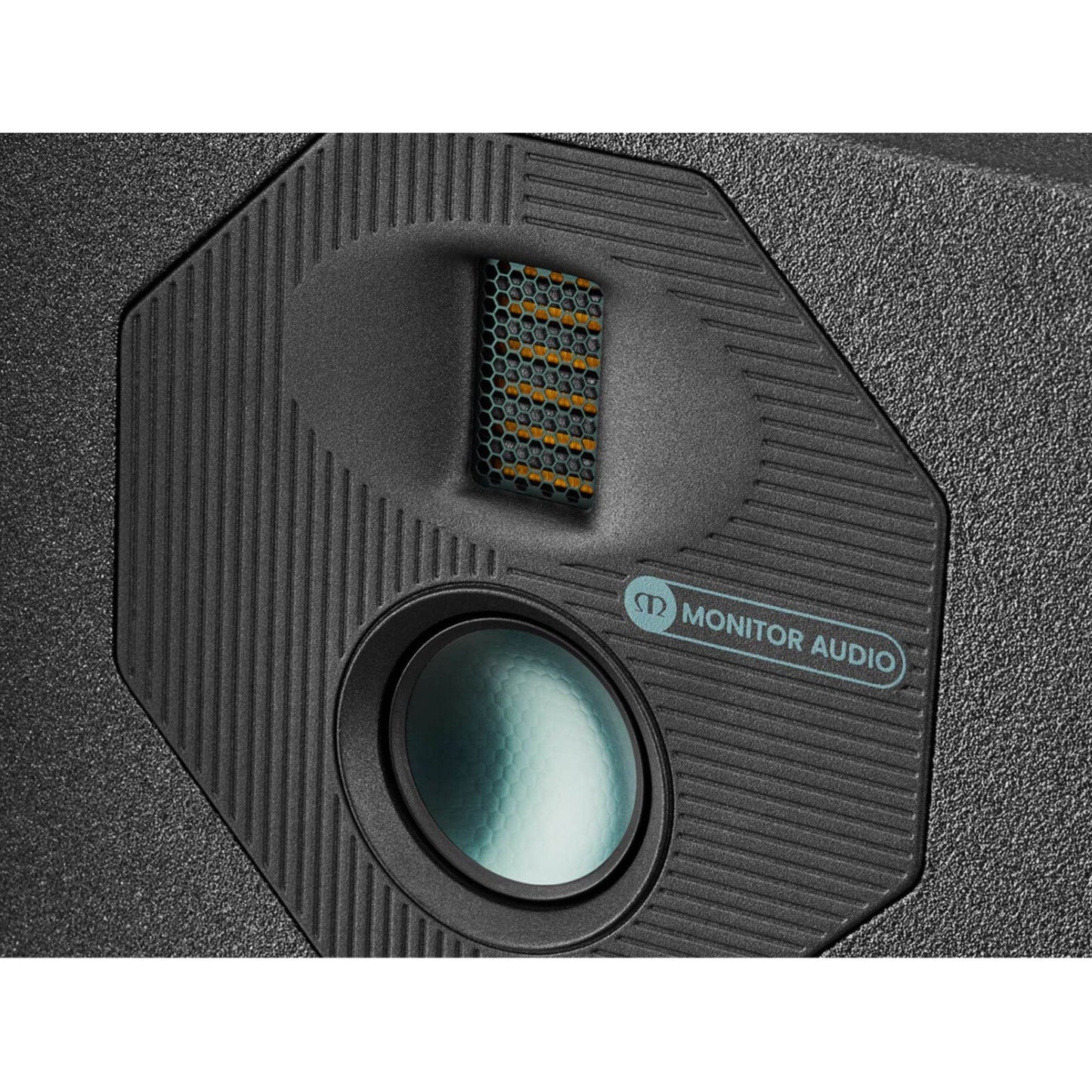

- MPD high-frequency transducer with accuracy, clarity and lifelike sound
- C-CAM mid-range driver with high power handling, high sensitivity, wide directivity
- RDT II Bass driver with exceptional high-power handling, high sensitivity, high excursion and low distortion
- Crossover with performance of the highest level, even when pushed hard for long periods of time

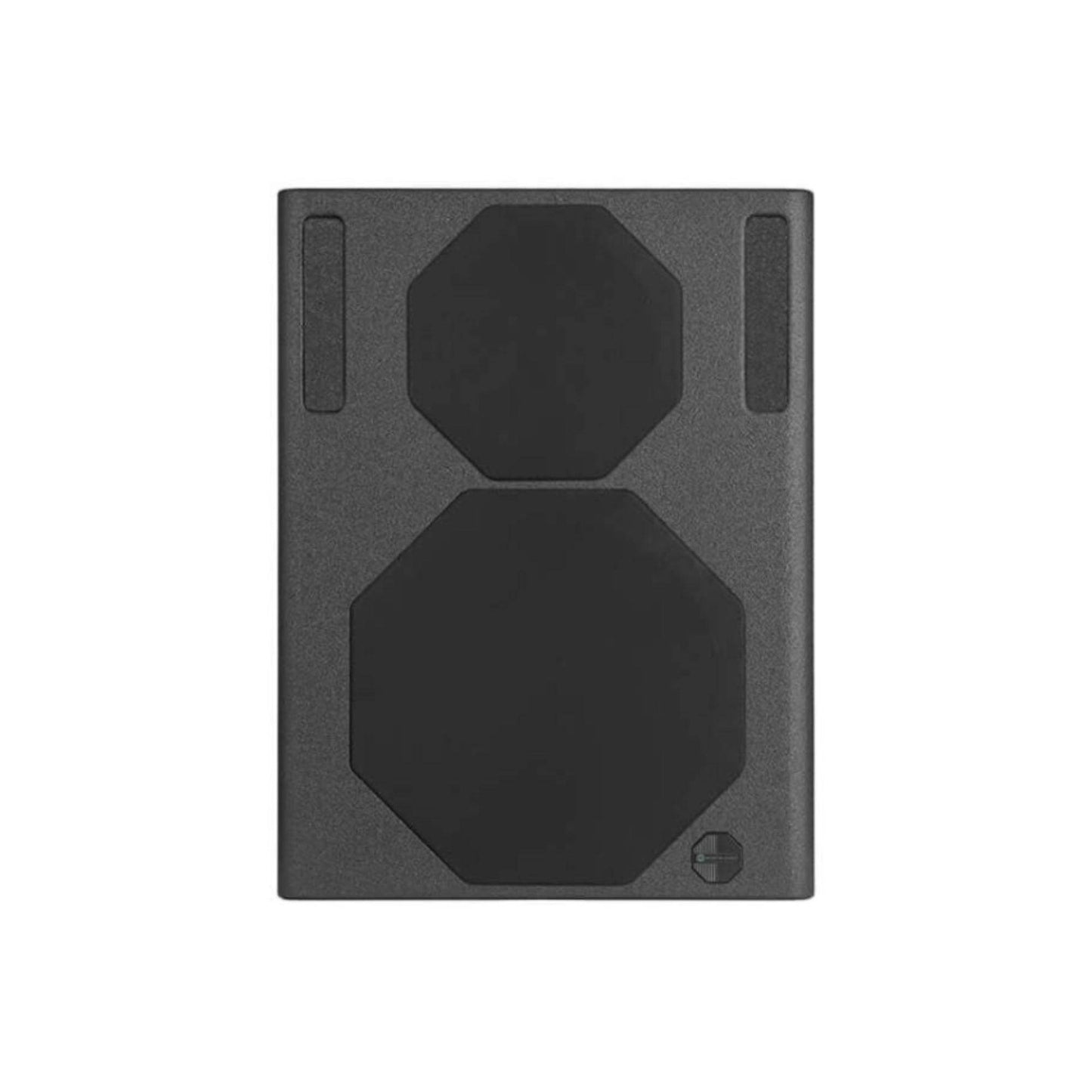

- Magnetic grilles to hide drivers and prevent visual reflections from brightly lit cinema screens
SPECIFICATIONS
THX Certification |
THX® Certified Ultra |
System Format |
3 Way |
Sensitivity (2.83 Vrms @ 1 M) |
89 dB |
Maximum Linear SPL**** (@1m, free space) |
Continuous 103 dB, Peak 116 dB |
Power Handling (RMS) |
Continuous 200 W, Peak* 800 W |
Nominal Impedance |
4 Ohms |
Minimum Impedance (20 Hz - 20 kHz) |
3.8 Ohms |
Recommended Low Frequency Crossover Frequency |
80 - 100 Hz (High Pass) |
Recommended Amp Requirements (RMS) |
100 - 800 W (IA750-2 or IA750-4) |
Bass Alignment |
Ported** |
Port Tuning Frequency |
67 Hz** |
LF Extension, In Wall, With Port Bungs (- 6dB) |
48 Hz |
LF Extension, In Free Space, No Port Bungs (- 6dB) |
65 Hz |
HF Extension (-6dB) |
>30 kHz |
Drive Unit Complement |
|
External Dimensions (Cabinet Only (H x W x D)) |
460 x 350 x 160 mm (181/8 x 133/4 x 65/16") |
External Dimensions (Inc Grille) (H x W x D) |
460 x 350 x 174.1 mm (181/8 x 133/4 x 67/8") |
Weight |
18.4 kg (40 lb 8 oz) |
