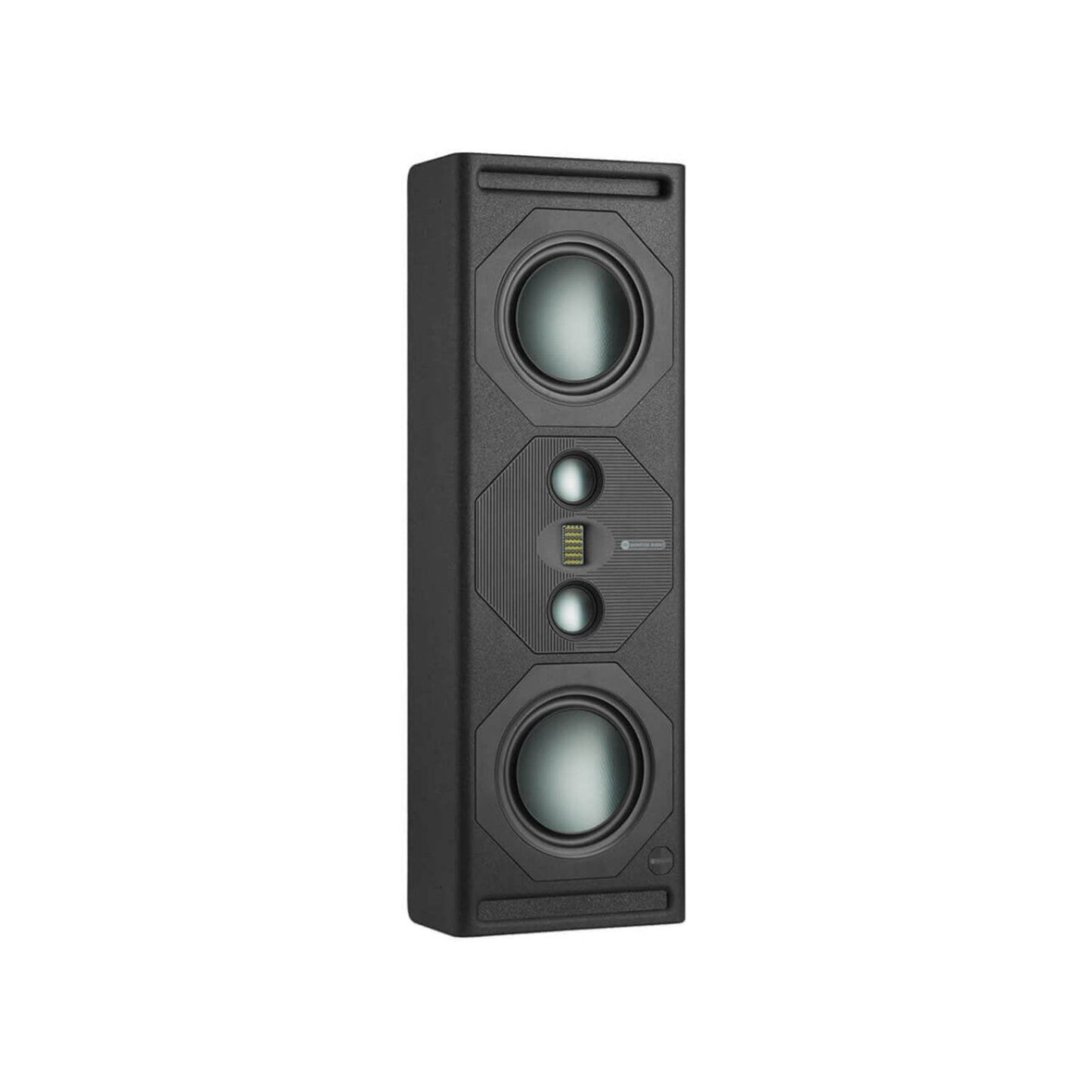

Monitor Audio Cinergy 200 - In-Wall Speaker - Piece

Monitor Audio Cinergy 200 - In-Wall Speaker - Piece

Like the rest of the Cinergy range, the 200 incorporates some very smart features to achieve its effortless performance.

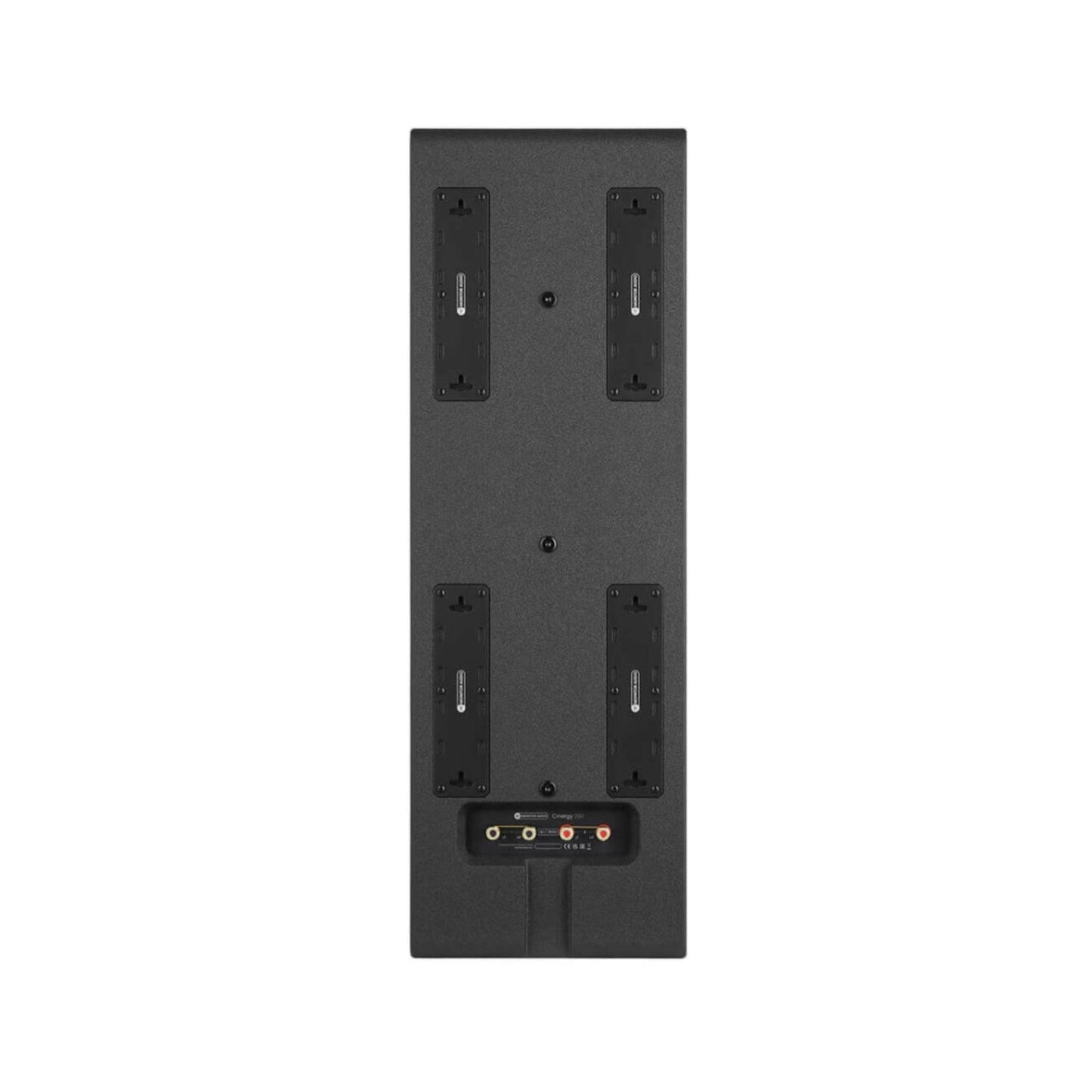

On the outside, handy brackets make installation easy. Inside, two mid-range drivers double the power handling, improve efficiency and reduce reflections off ceilings and floors. Together, they ensure everything from the most epic cinematic score to the quietest whisper of dialogue is reproduced beautifully and faithfully.

Incredible technology

Monitor Audio have brought everything they have learned about audio to the big screen. From MPD High-Frequency Transducers to RDT II drivers, every element plays a part in the epic performance of Cinergy. And even before you hear it, you’ll see a distinctive mark of quality: the THX certified stamp, promising the highest standards of cinematic excellence.

Monitor Audio Cinergy 200 ‘s Amazing design

The best cinemas are purpose-built, from the ground up, enabling you to create a world all of your own. Cinergy sits at the heart of this world, giving your installer the creative flexibility using modular designs, bespoke isolation and clever fixing methods. All with one goal: achieving unforgettable audio that’s perfectly attuned to your chosen space.

Key Features

  • Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience

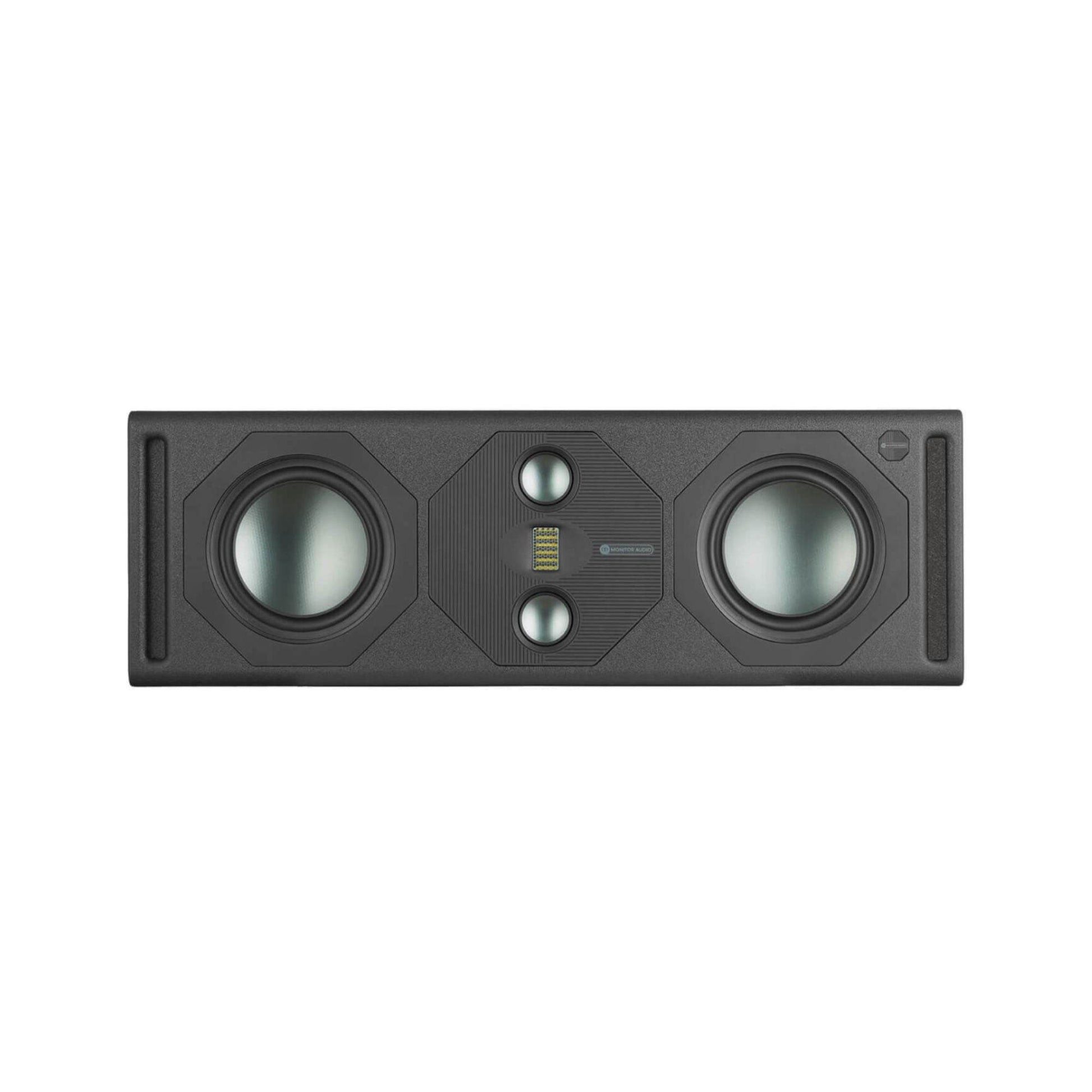

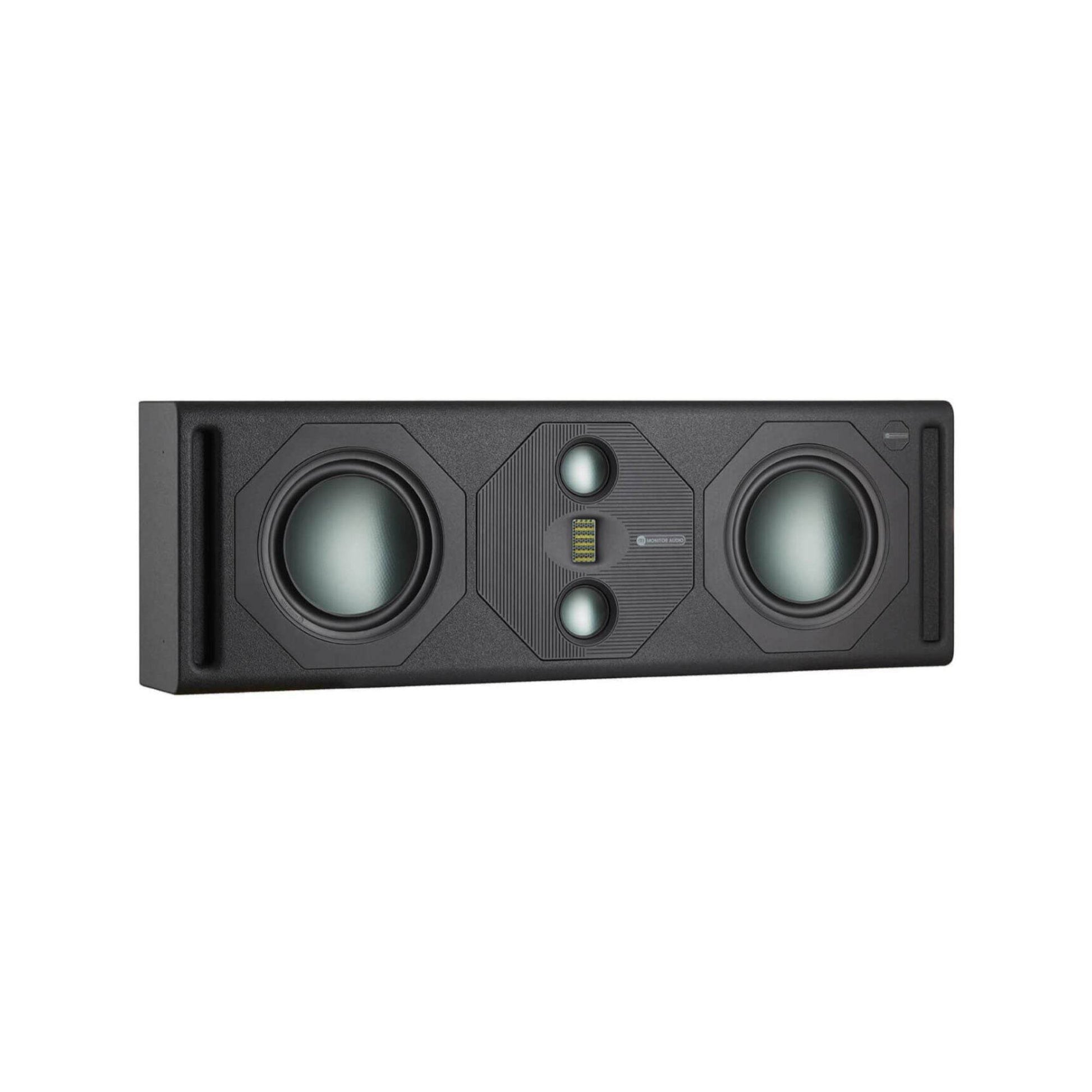

  • Rotatable mid-tweeter array
  • Numerous mounting options, with a design perfectly suited to an in-cabinet mounting behind an acoustically transparent screen
  • Removable port bungs to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers

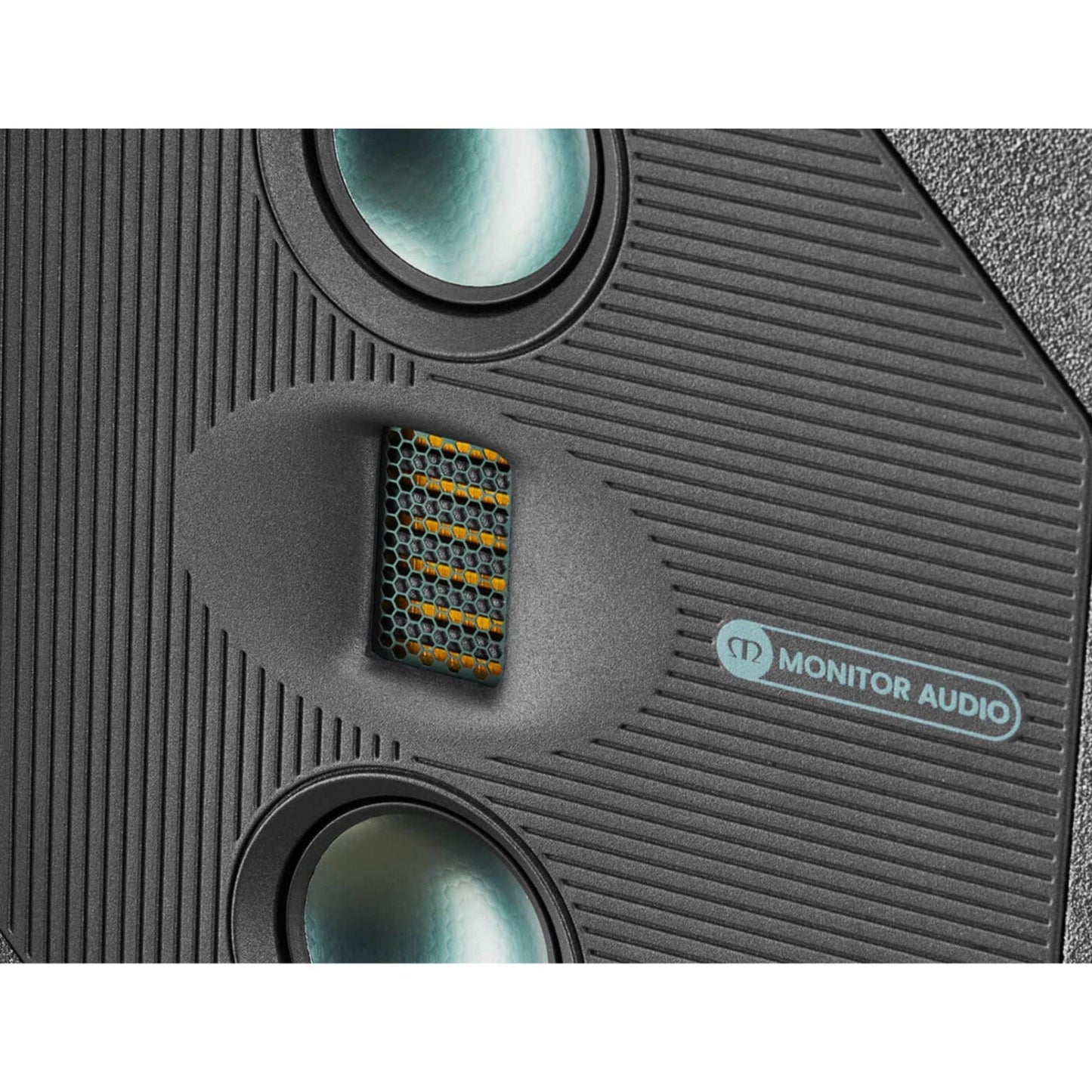

  • MPD high-frequency transducer with accuracy, clarity and lifelike sound 
  • C-CAM mid-range driver with high power handling, high sensitivity, wide directivity
  • RDT II bass driver with exceptional high-power handling, high sensitivity, high excursion and low distortion
  • Crossover with performance of the highest level, even when pushed hard for long periods of time

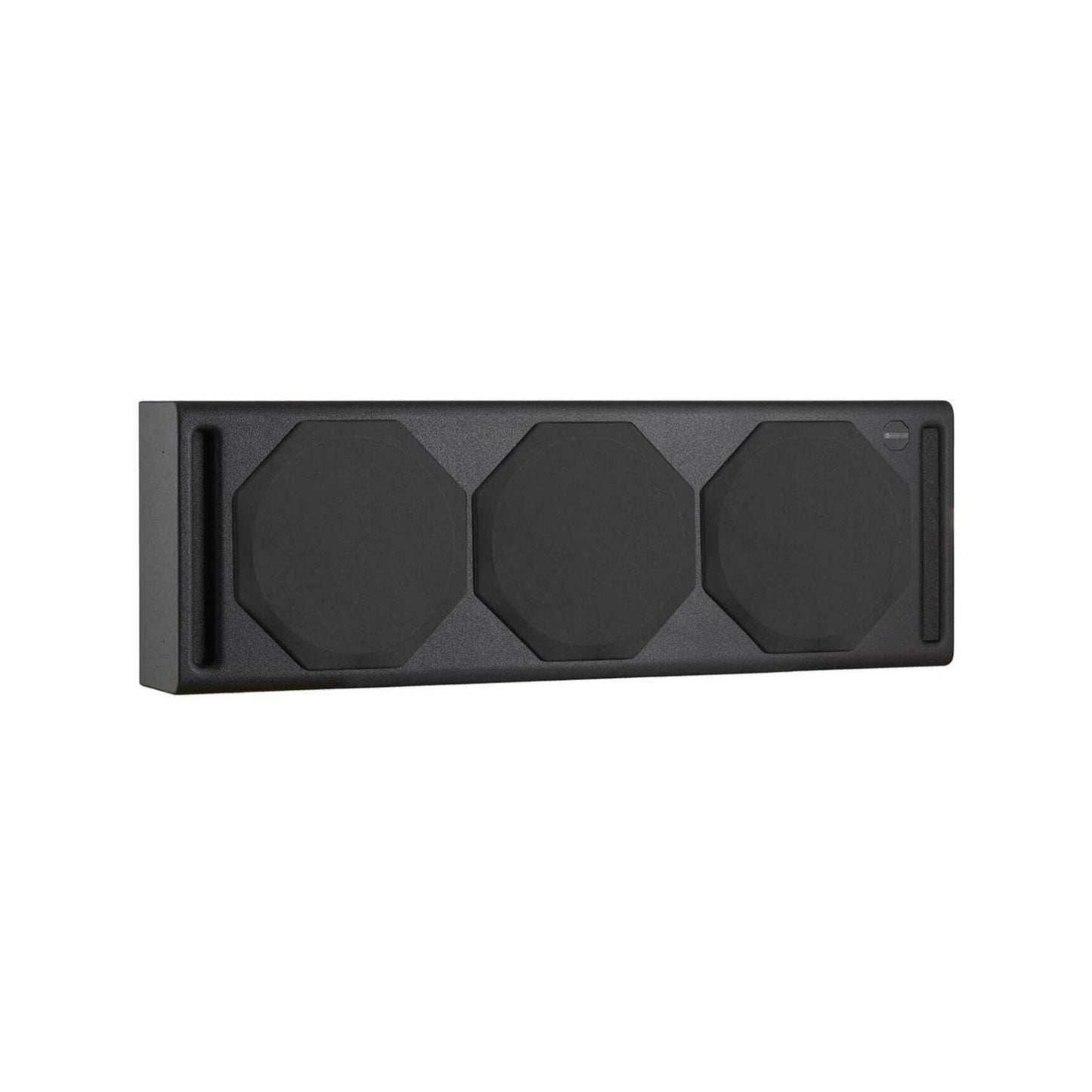

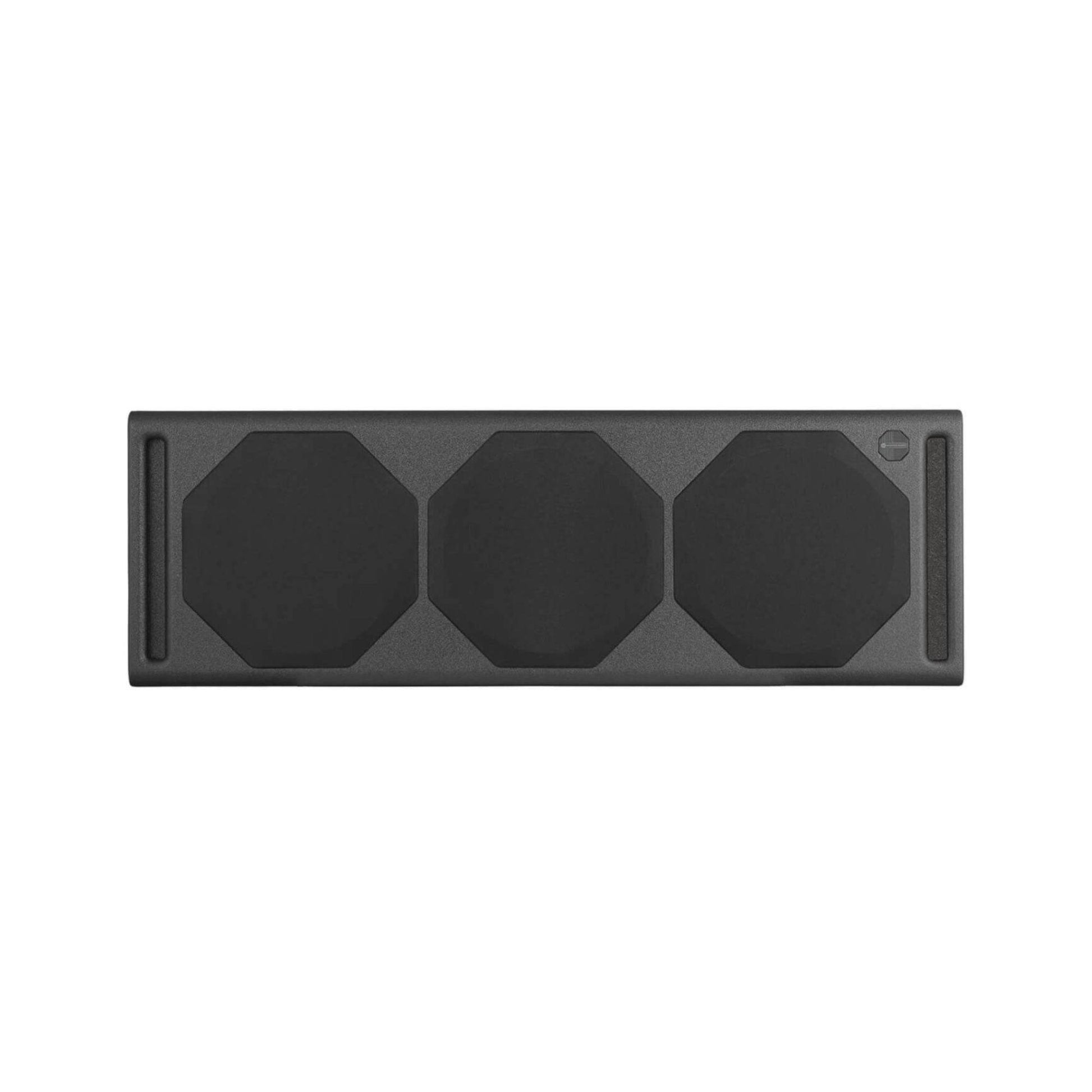

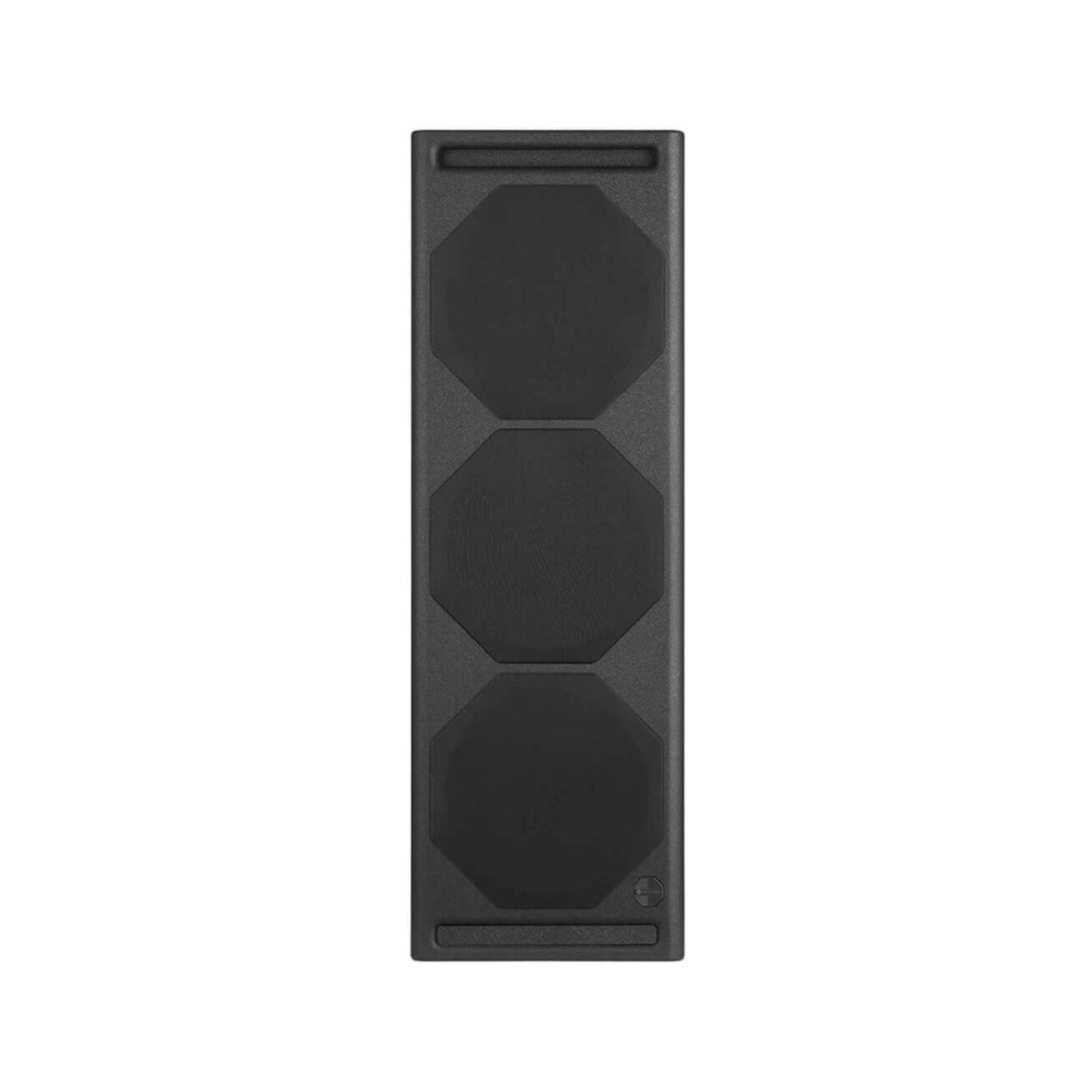

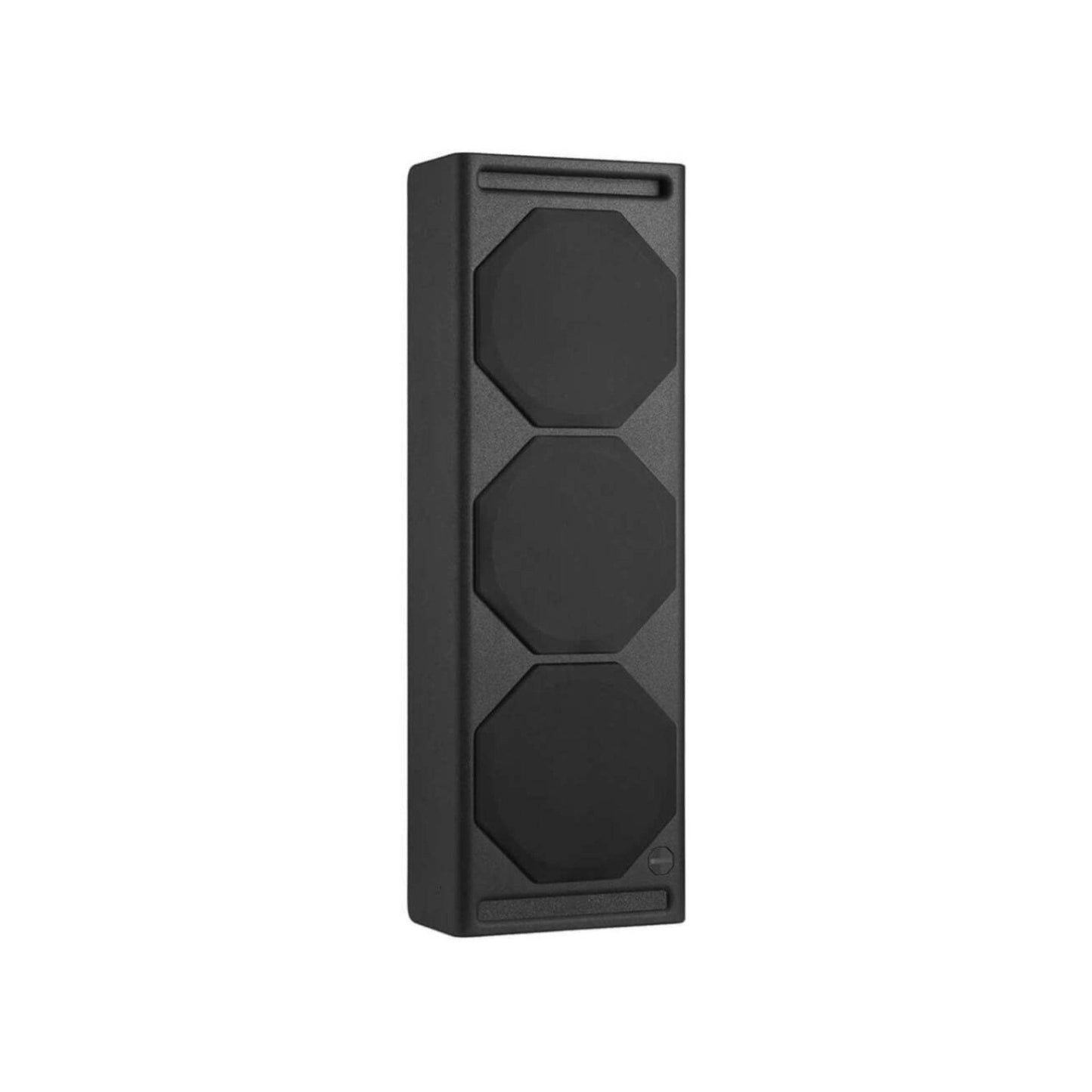

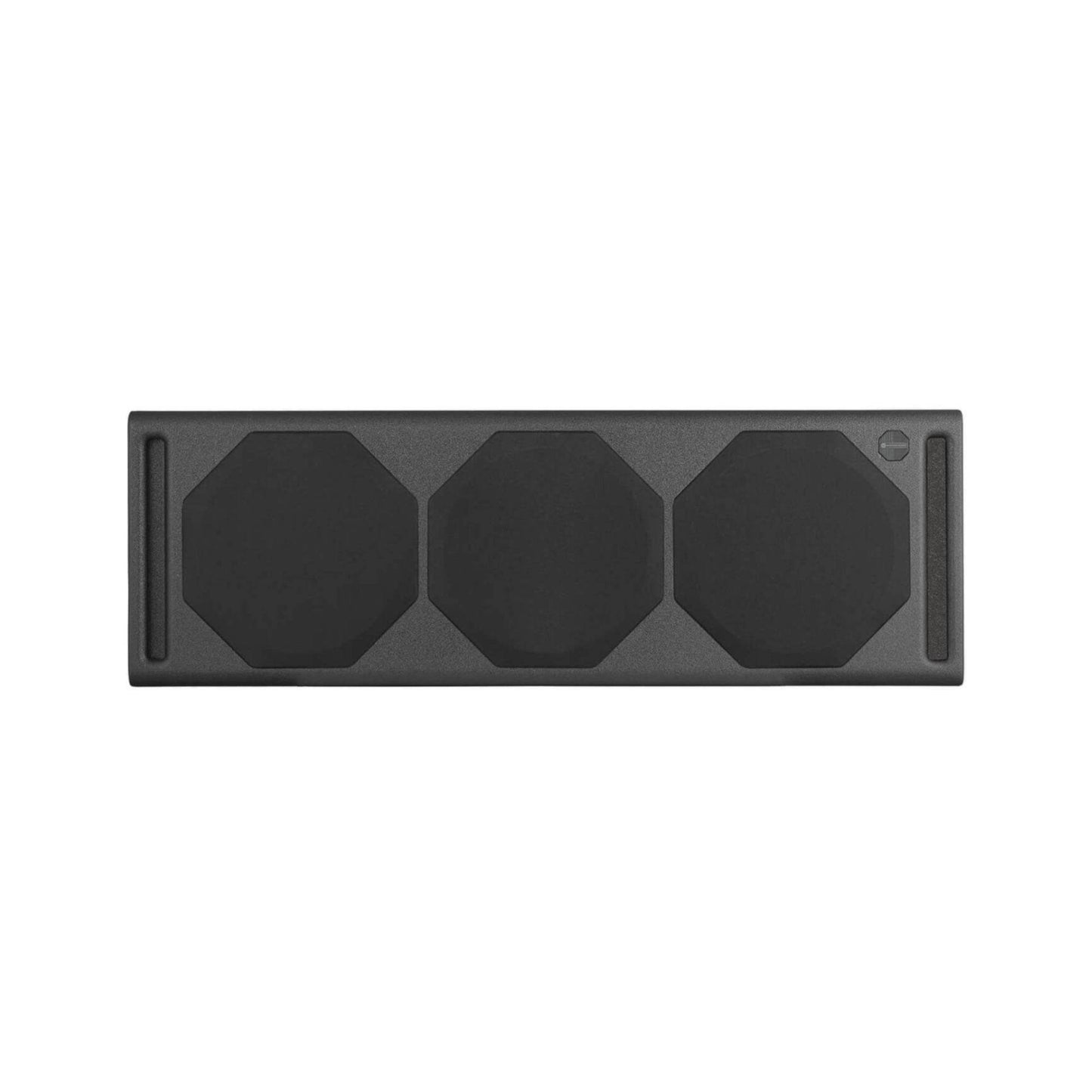

  • Magnetic grilles to hide drivers and prevent visual reflections from brightly lit cinema screens, when not used with acoustically transparent cloth

SPECIFICATIONS

THX Certification

THX® Certified Ultra

System Format

3 Way

Sensitivity (2.83 Vrms @ 1 M)

90 dB

Maximum Linear SPL**** (@1m, free space)

Continuous 109 dB, Peak 122 dB

Power Handling (RMS)

Continuous 350 W, Peak* 1400 W

Nominal Impedance

4 Ohms

Minimum Impedance (20 Hz - 20 kHz)

3.8 Ohms

Recommended Low Frequency Crossover Frequency

80 - 100 Hz (High Pass)

Recommended Amp Requirements (RMS)

200 - 1400 W (IA750-2 or IA750-4)

Bass Alignment

Ported**

Port Tuning Frequency

47 Hz**

LF Extension, In Wall, With Port Bungs (- 6dB)

47 Hz

LF Extension, In Free Space, No Port Bungs (- 6dB)

47 Hz

HF Extension (-6dB)

>30 kHz

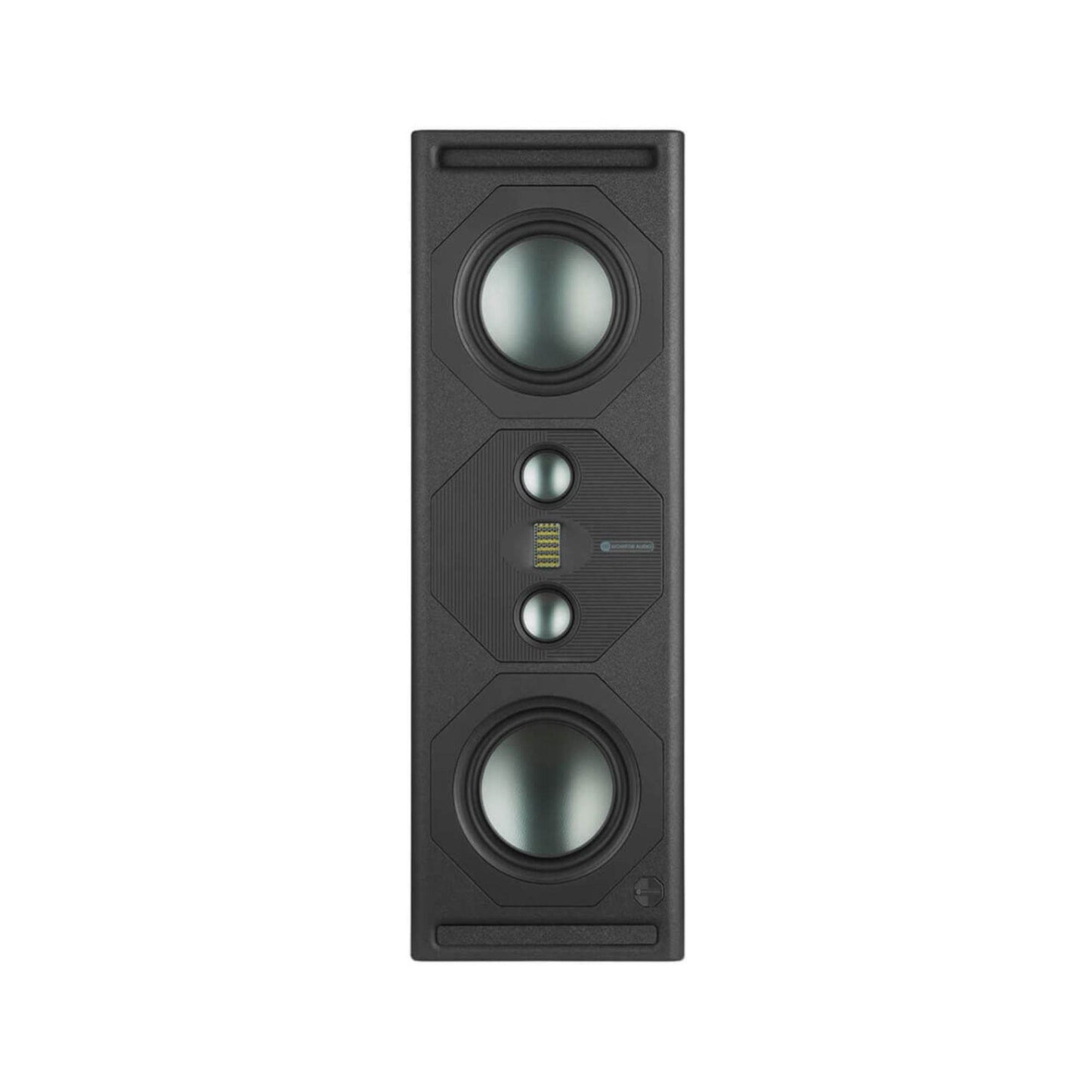

Drive Unit Complement

  • 2 x 8" RDT Driver
  • 2 x 2.5" C-CAM Driver
  • 1 x MPD Transducer

External Dimensions (Cabinet Only (H x W x D))

904 x 300 x 160 mm (359/16 x 1113/16 x 65/16")

External Dimensions (Inc Grille) (H x W x D)

904 x 300 x 173.6 mm (359/16 x 1113/16 x 613/16")

Max External Dimensions (Inc all Fittings) (H x W x D)

904 x 300 x 173.6 mm (359/16 x 1113/16 x 613/16")

Weight

30 kg (66 lb)
