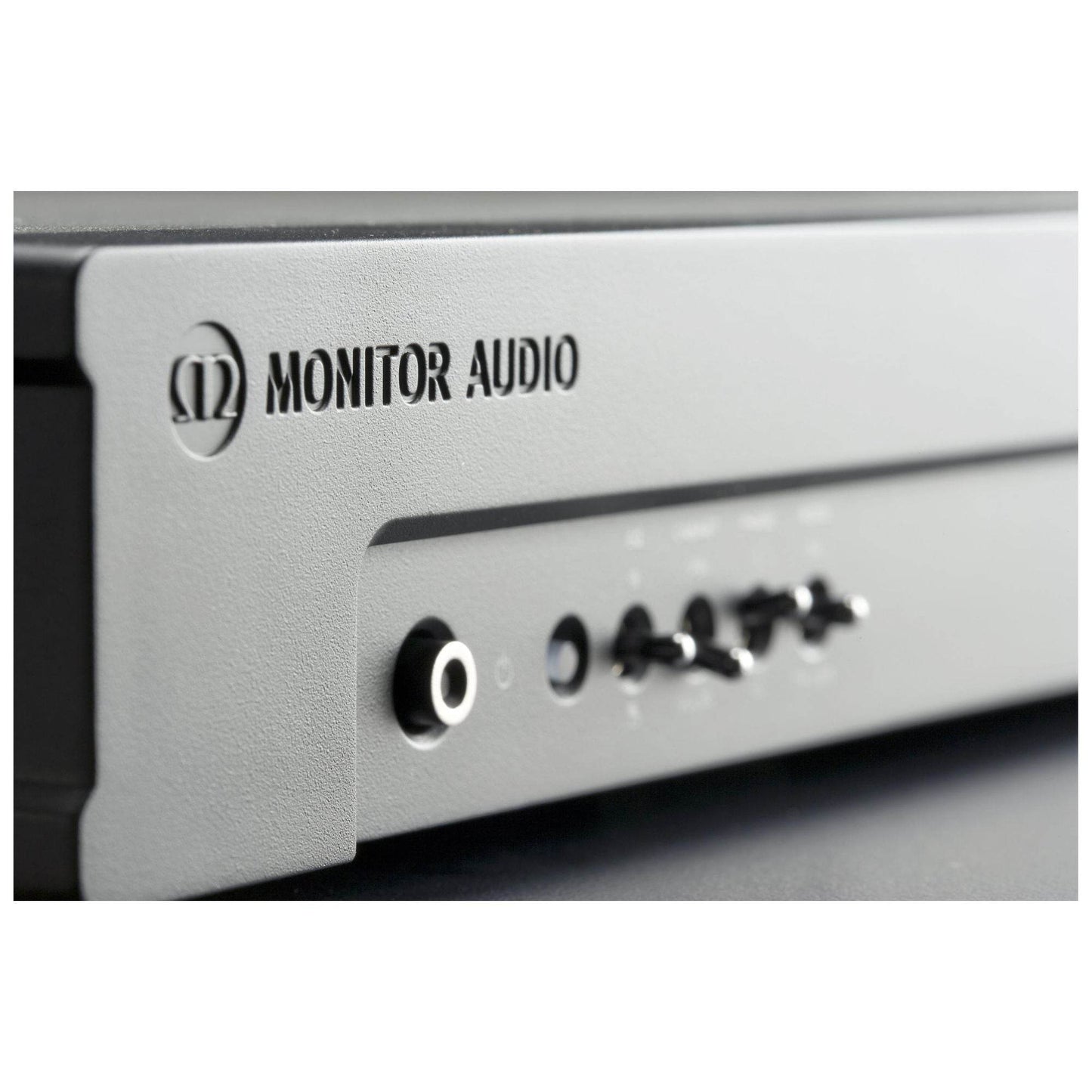

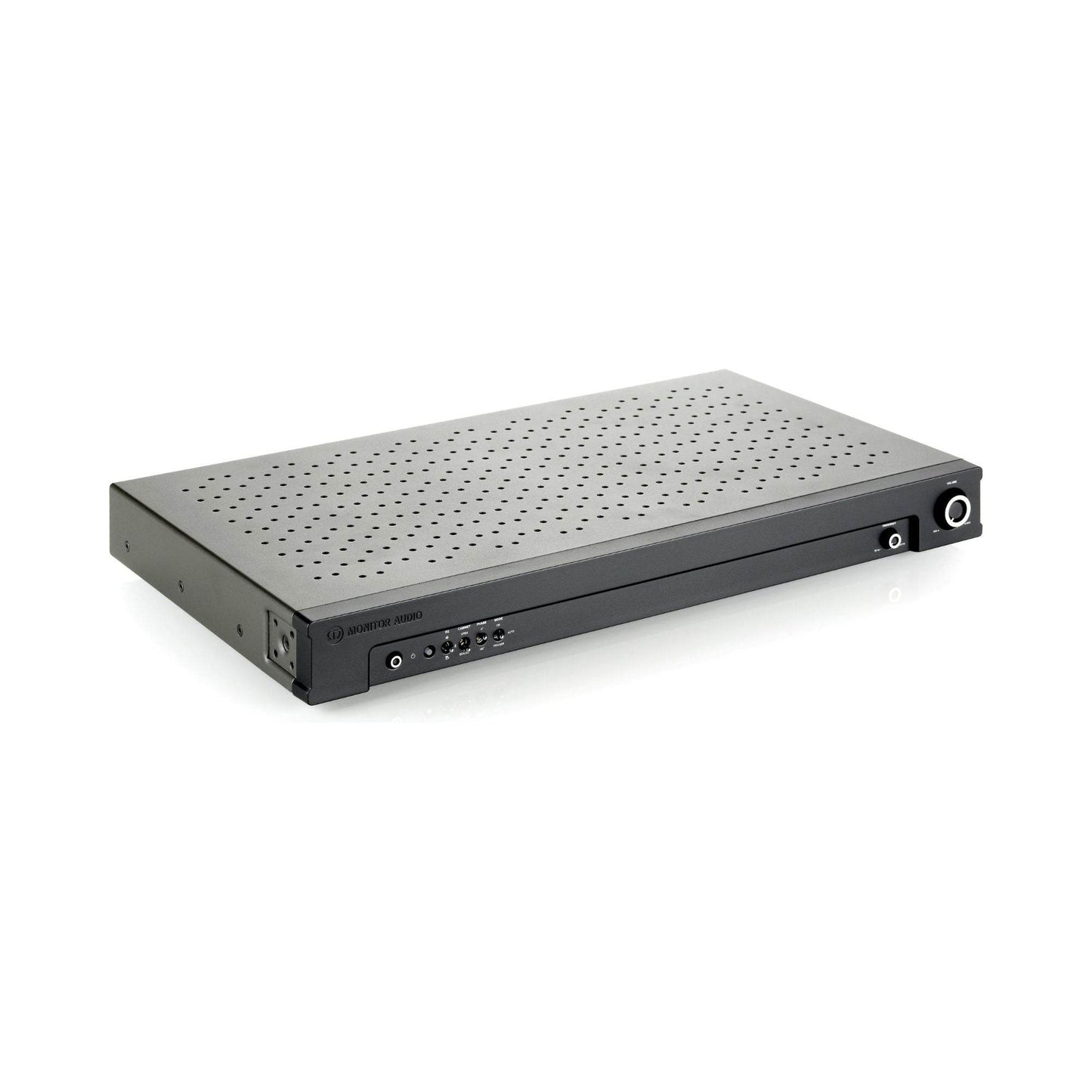

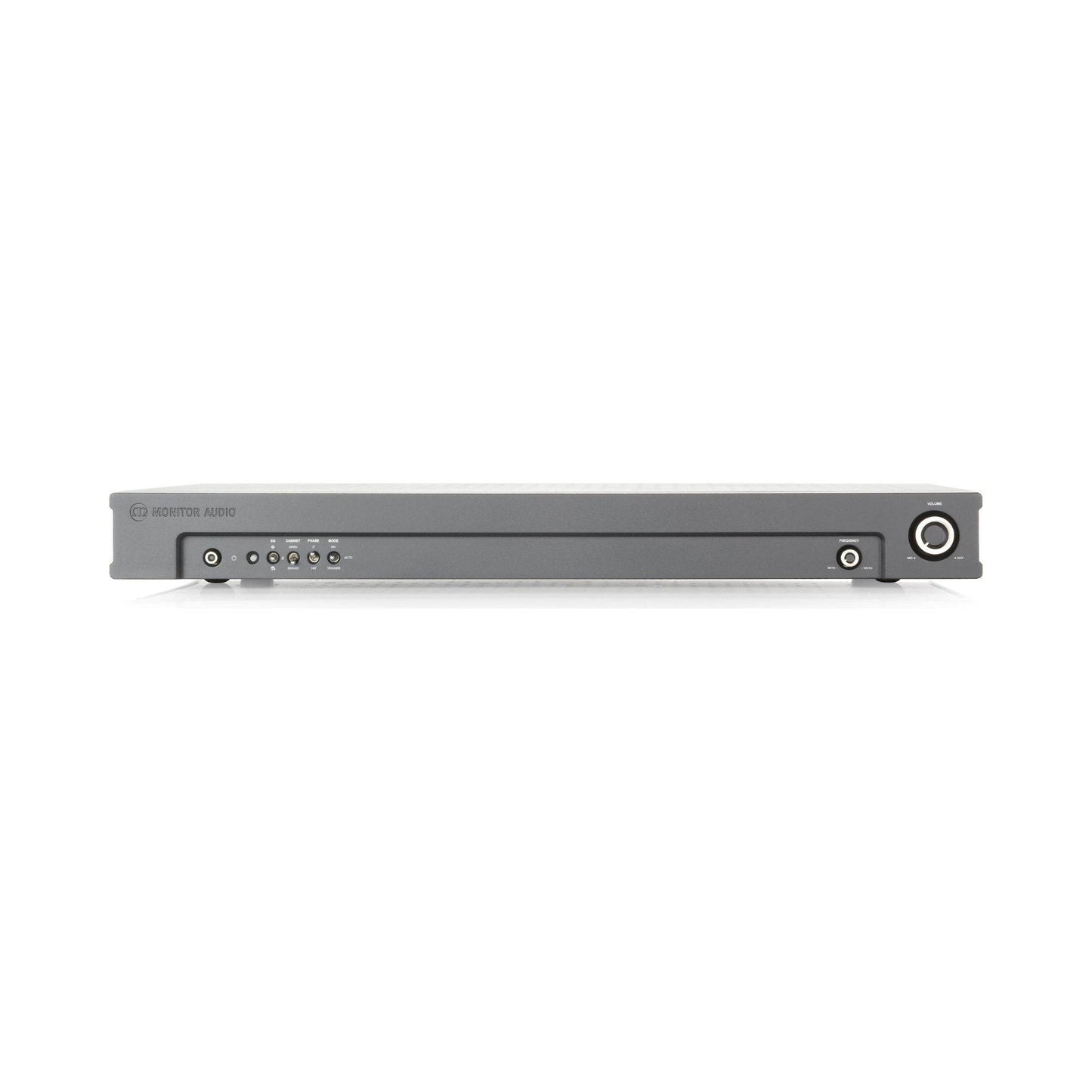

The IWA-250 switch mode amplifier is a slim, powerful dedicated design in a heavy-duty 1U rack mount case.

Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10's to provide higher power levels for larger rooms or to meet customer demands.

Power for your passive sub

Yes, you can fit a subwoofer in a wall, just like a full-range speaker. But it's tough to find room in the wall for powerful amplification to drive that sub. For that, you need a dedicated subwoofer amp like the Monitor Audio IWA-250. It was designed for use with their IWS-10 passive in-wall subwoofer, and can drive it to deliver powerfully pleasing bass. The IWA-250 can even drive two of these in-wall subs, offering 250 watts of power when driving both loads. That's the kind of sub output made for large home theaters that need a second sub for impactful low-frequency effects that are well-balanced throughout the room.

Connections for receivers and integrated amps

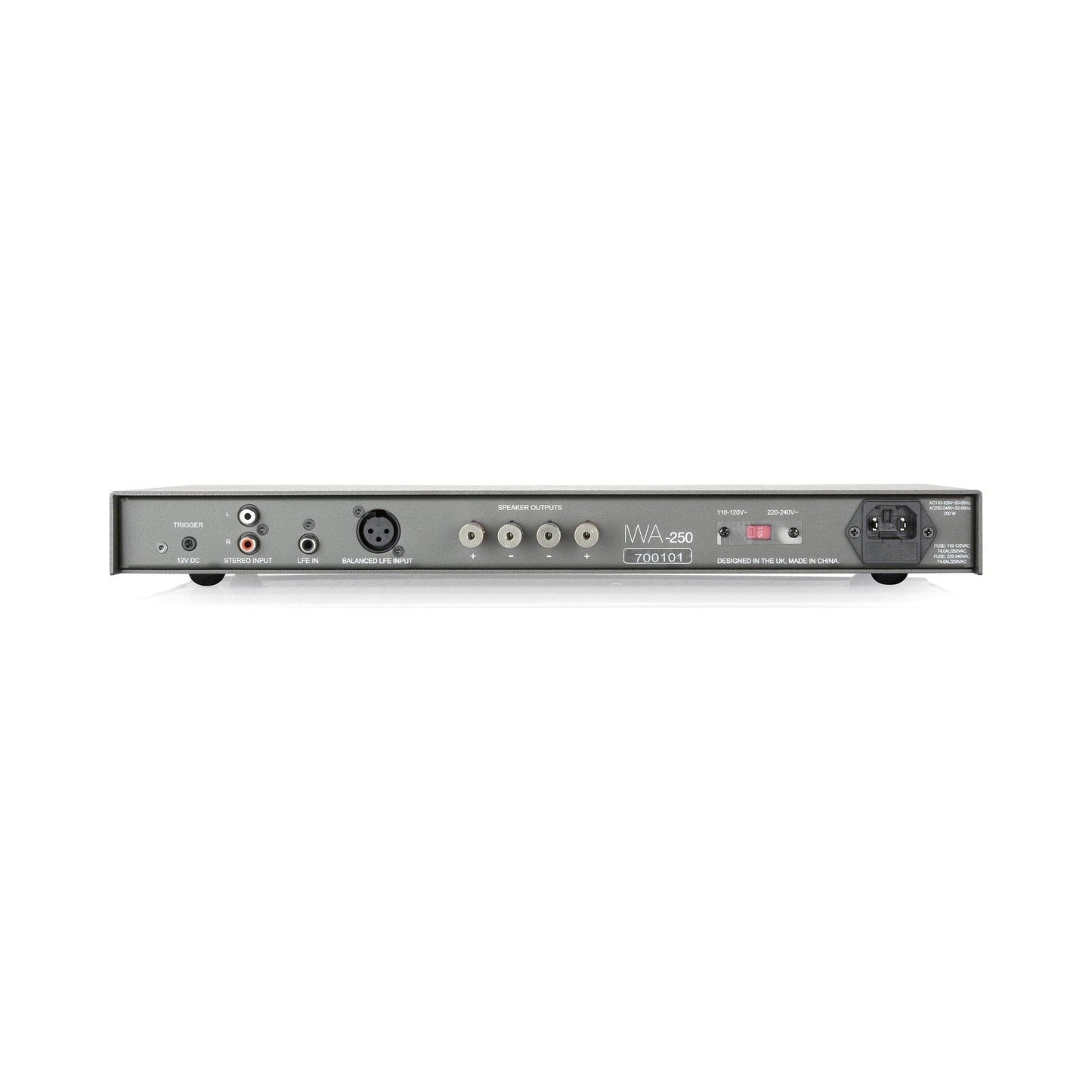

If you're using the IWA-250 with a home theater receiver, there are balanced and unbalanced LFE inputs. If you're connecting it to an integrated amp without a subwoofer output, there are stereo RCA inputs with a variable crossover for fine-tuning the low-pass filter. The Class D amp is equipped with digital signal processing to ensure you get even response from your subs at various listening levels while also limiting distortion at high volumes.

Turns on automatically

The IWA-250 has a 12-volt trigger connection, so it can automatically switch on with your receiver, amp, or external control system. It can also be set to power on when an input signal is detected.

Technology

• Rigid, high quality steel case
• Switch mode power supply
• Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
• High efficiency design resulting in cool running – low thermal output
• DSP controlled with advanced limiters
• <0.5watt standby power consumption (ErP certified)
• DC short circuit protection, over-current and thermal protection

What's in the box:

• Monitor Audio IWA-250 owner's manual
• Subwoofer amplifier
• 6' AC power cord
• 10' Mono minijack cable
• 2 Rack-mount brackets
• 8 Screws
• Owner's Manual
• Important Safety Instructions

SPECIFICATIONS
