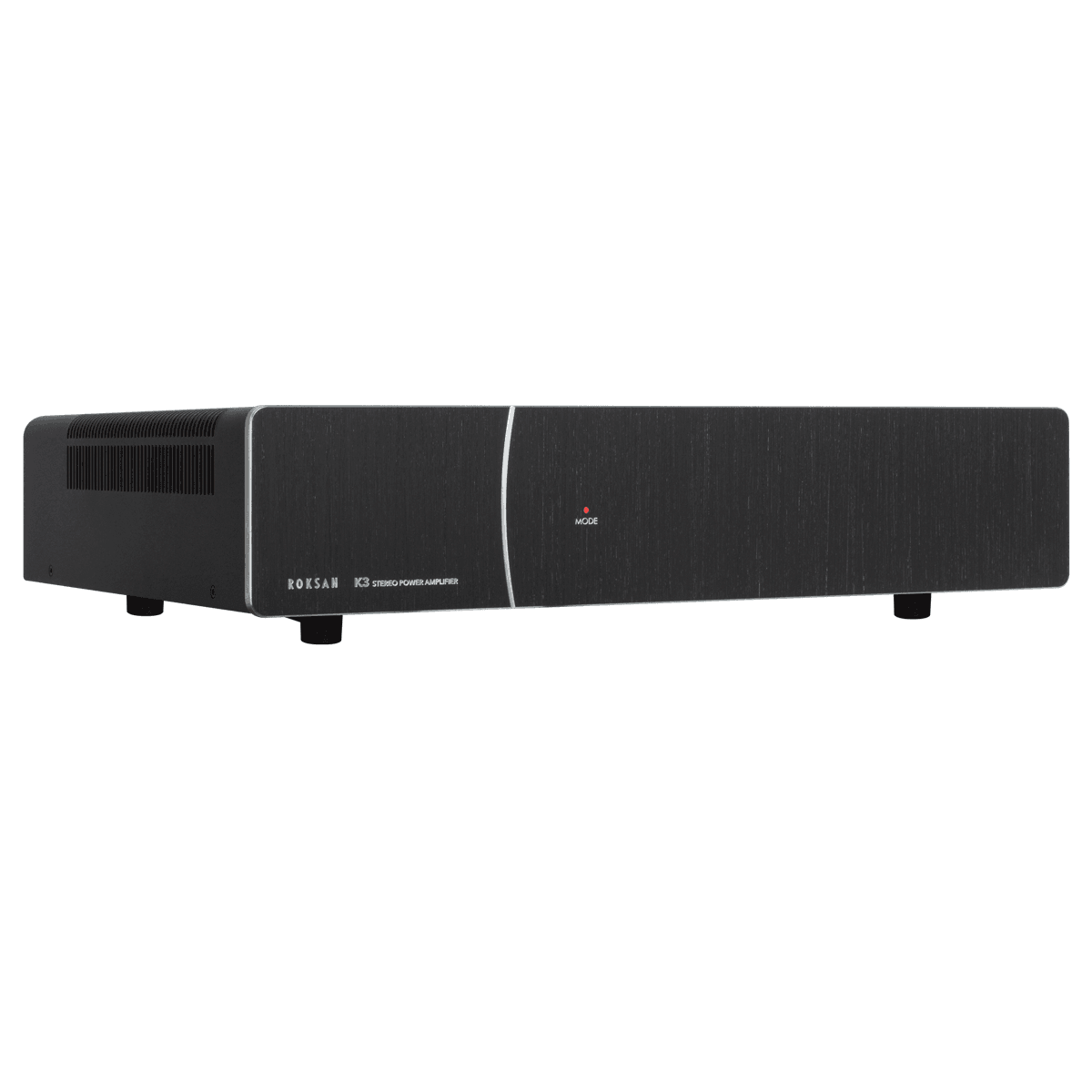

ROKSAN K3 POWER AMPLIFIER
An optimised power supply, a directly mains-powered power amplifier section and other key design features ensure high performance and reliability.
The 140 W (RMS) per channel (into 8 ohms) K3 Power Amplifier offers a simple yet very effective route for upgrading the musical performance of your system.
With a smooth and solid sound, the K3 Power Amplifier can be used in combination with the K3 Integrated Amplifier to form a bi-amplified or even tri-amplified system (with compatible speaker systems) delivering the ultimate power and control to your loudspeakers. Offering balanced XLR and single-ended RCA inputs and outputs, the K3 Power Amplifier will fit in with nearly all audio systems.
Key Features
- Symmetrical amplifier layout
- Optimised power supply layout, distribution and decoupling
- Decoupling and power regulation to all stages
- Directly powered power amp section
- Optimised routing and short speaker output cables
- Balanced XLR and single-ended RCA inputs and output
- 0.5W standby operation with auto detect and a 30 minute standby timer
SPECIFICATIONS
|
Input |
RCA, XLR |
|
Input Impedance |
23 kohms |
|
Input Sensitivity |
(115 W) - 900 mV |
|
Outputs |
Speaker (L & R) |
|
Power Output (Per Channel) |
|
|
Power Supply |
500 VA Ultra low noise toroidal transformer |
|
Damping Factor |
>110 (8 ohms) |
|
Frequency Response |
<3 Hz - >100 kHz (-3 dB) |
|
Gain |
31.6 dB |
|
Harmonic Distortion |
<0.003 % 1 kHz - 8 ohms |
|
Power Consumption |
|
|
Signal to Noise Ratio |
100 dB (ref. 900 mV) |
|
Dimensions (W x H x D) |
432 x 105 x 380 mm |
|
Weight |
14 kg |
