Velodyne Acoustics

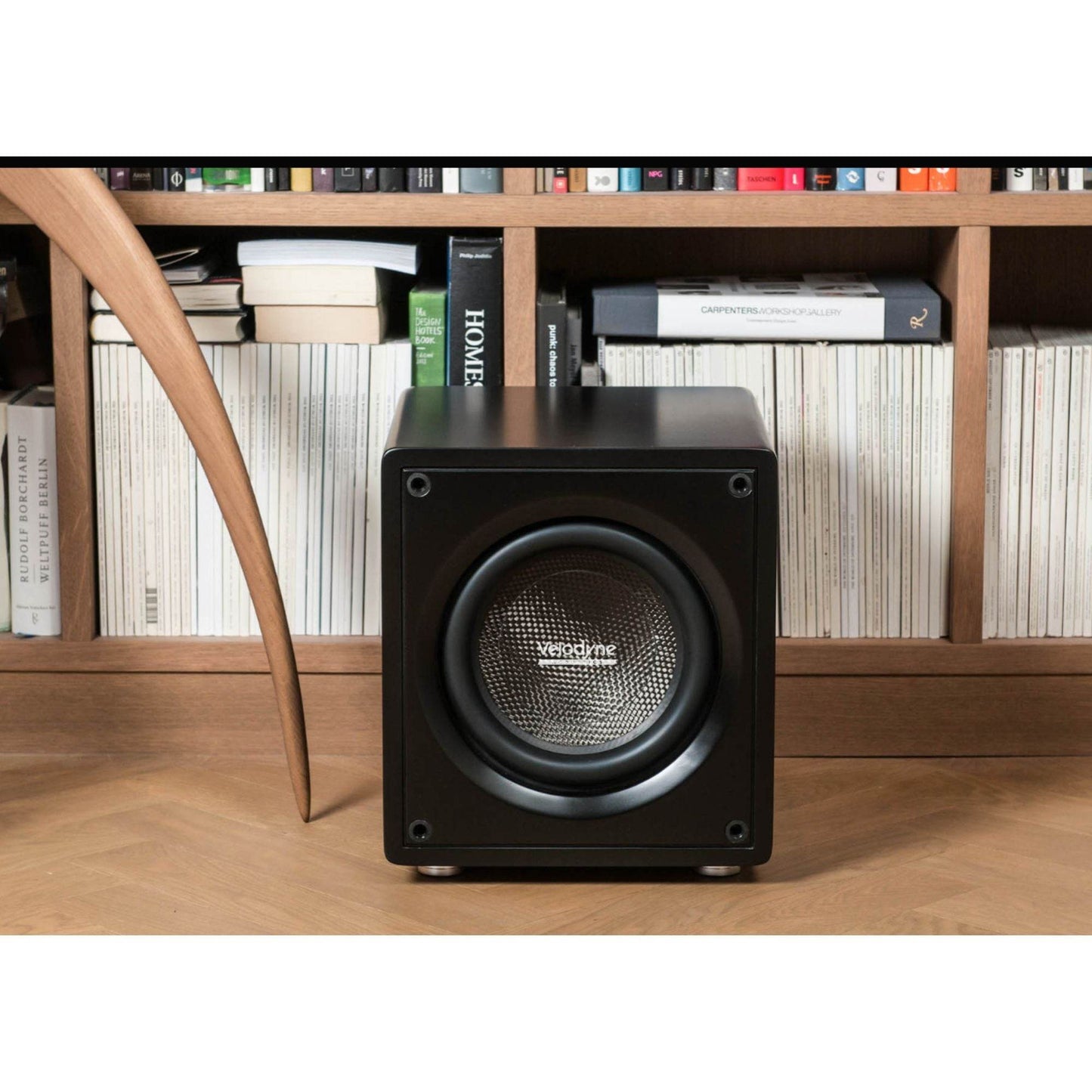

Velodyne Acoustics VI-Q 10 - Active Subwoofer
Velodyne Acoustics VI-Q 10 - Active Subwoofer
Low-frequency multi-talent with numerous connections and the latest technology
The sealed cabinet design of the VI-Q series features everything that makes Velodyne Acoustics Subwoofers stand out in a modern way. In addition, the three models provide a particularly high-quality driver configuration and the iWoofer™ app, which gives users full control with room adjustment, a 25-band parametric equalizer, and presets.
The Features
- The lightweight carbon fiber cone, in conjunction with the 3-inch voice coil, ensures optimum partial vibration behavior with low distortion values
- High power with up to 650 W RMS Class-D amplification with 1200 W maximum power; highly efficient switching power supply with 2 x 25 A / 650 V MOSFET transistors
- Solid front made of a 21-layer plywood board with a material thickness of a full 50 millimeters
- With its professional XLR connectors, RCA jacks for left and right channel and high-level connectors, the best connectivity is guaranteed
The three VI-Q subwoofers in sizes 10, 12 and 15 inch
combine extremely high performance with low distortion with the best ease of use in a premium matte black enclosure.
SPECIFICATIONS
Driver |
10″ front firing driver |
Amplifier Class D |
850 watt dynamic 450-watt RMS |
Overall Frequency Response: (± 3 dB) |
28 – 200 Hz |
Overall Frequency Response: (± 10 dB) |
25 – 280 Hz |
Low Pass Crossover |
50 Hz to 180 Hz (12 dB/Octave) |
Phase |
0 / 180 degrees |
Cabinet Design |
22mm HDF 50mm front |
Magnet Structure |
Dual ferrite magnet motor |
Woofer |
10” high excursion triple vented basket driver with carbon fiber Membrane and convex cone |
Voice Coil |
Four Layer 3″ / 76mm voice coil |
Input |
Gold plated Stereo/LFE RCA, Nickel plated XLR and High level in |
Output |
Gold plated Stereo/LFE RCA, Nickel plated XLR |
Power Selector |
Off / Auto / On |
Dimensions (W/H/D) (includes feet and connectors) |
38cm x 40cm x 32 cm |
Weight (approx) |
21kg |
Shipping Weight (approx) |
24kg |
